Stock Status: 1x unit in stock
Allied Telesis x540L Series 10 Gigabit Layer 3 stackable switches provide a resilient high-speed distribution solution. All ports support up to 10G speed enabling seamless communication for modern applications, and multi-gigabit or fiber connectivity ensures flexible deployment.
Enable resilient distribution switching, with superior performance and simplified management, using Virtual Chassis Stacking (VCStack™)
Enjoy flexible deployment with multi-gigabit speeds of 1/2.5/5/10G, and 1/10G (SFP/SFP+) uplinks to maximize performance on copper x540L models
Support distributed environments with secure long-distance 1/10G (SFP/SFP+) connectivity on fiber x540L models
Reduce costs and automate network and device management with Autonomous Management Framework™ Plus (AMF Plus)
Prevent eavesdropping of sensitive data on fiber links with Active Fiber Monitoring
Support resilient high-speed ring-based networks with Ethernet Protection Switched Ring (EPSRing™) and standards-based G.8032 ERPS
Specs
| Ports & interfaces |
| 10G Ethernet (copper) ports quantity |
24 |
| SFP+ module slots quantity |
4 |
| Networking |
| Networking standards |
IEEE 802.2, IEEE 802.3, IEEE 802.3ab, IEEE 802.3bz, IEEE 802.3ae, IEEE 802.3an, IEEE 802.3x, IEEE 802.3z, IEEE 802.3az |
| 10G support |
Yes |
| Port mirroring |
Yes |
| Full duplex |
Yes |
| Policy-based routing |
Yes |
| Flow control support |
Yes |
| Link aggregation |
Yes |
| Broadcast storm control |
Yes |
| Spanning tree protocol |
Yes |
| VLAN support |
Yes |
| Number of VLANs |
4094 |
| Power |
| Power supply included |
Yes |
| Power consumption (max) |
160 W |
| Operational conditions |
| Heat dissipation |
540 BTU/h |
| Weight & dimensions |
| Width |
440 mm |
| Depth |
290 mm |
| Height |
44 mm |
| Weight |
4 kg |
| Security |
| DHCP features |
DHCPv6 relay, DHCP snooping, DHCPv6 client |
| Access Control List (ACL) |
Yes |
| IGMP snooping |
Yes |
| Security algorithms |
SSH, SSL/TLS, SHA-1, SHA-256, SHA-384, SHA-512 |
| MAC address filtering |
Yes |
| SSH/SSL support |
Yes |
| Loop protection |
Yes |
| BPDU filtering/protection |
Yes |
| Authentication |
MAC-based authentication, Web-based authentication |
| Authentication type |
RADIUS, TACACS+ |
| Data transmission |
| MAC address table |
32000 entries |
| Switching capacity |
560 Gbit/s |
| Forwarding rate |
416.7 Mpps |
| Static route |
Yes |
| Number of static routes |
1000 |
| Jumbo frames support |
Yes |
| Jumbo frames |
9000 |
| Packet buffer memory |
8 MB |
| Management features |
| Switch type |
Managed |
| Switch layer |
L3 |
| Quality of Service (QoS) support |
Yes |
| Web-based management |
Yes |
| ARP inspection |
Yes |
| MIB support |
Y |
| Design |
| Rack mounting |
Yes |
| Stackable |
Yes |
| Form factor |
1U |
| Product colour |
Grey |
| LED indicators |
Yes |
| Performance |
| Memory type |
SDRAM |
| Internal memory |
2048 MB |
| Flash memory |
256 MB |
| Multicast features |
| Multicast support |
Yes |
Features

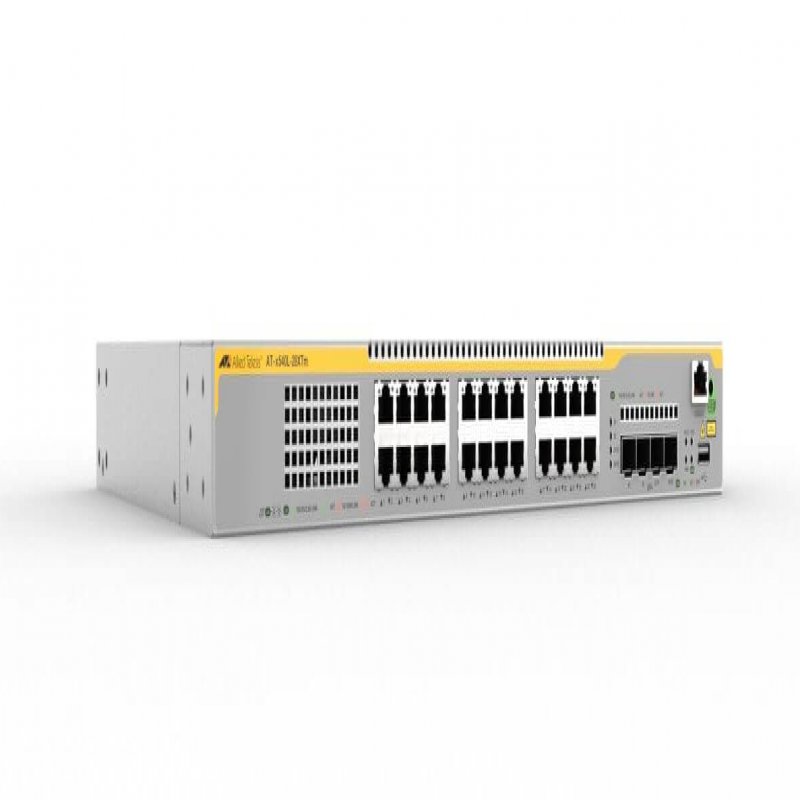

Allied Telesis AT-x540L-28XTm-50. Switch type: Managed, Switch layer: L3. Full duplex. MAC address table: 32000 entries, Switching capacity: 560 Gbit/s. Networking standards: IEEE 802.2, IEEE 802.3, IEEE 802.3ab, IEEE 802.3bz, IEEE 802.3ae, IEEE 802.3an, IEEE 802.3x, IEEE.... Rack mounting, Form factor: 1U
Product Description
Allied Telesis x540L Series 10 Gigabit Layer 3 stackable switches provide a resilient high-speed distribution solution. All ports support up to 10G speed enabling seamless communication for modern applications, and multi-gigabit or fiber connectivity ensures flexible deployment.
Enable resilient distribution switching, with superior performance and simplified management, using Virtual Chassis Stacking (VCStack™)
Enjoy flexible deployment with multi-gigabit speeds of 1/2.5/5/10G, and 1/10G (SFP/SFP+) uplinks to maximize performance on copper x540L models
Support distributed environments with secure long-distance 1/10G (SFP/SFP+) connectivity on fiber x540L models
Reduce costs and automate network and device management with Autonomous Management Framework™ Plus (AMF Plus)
Prevent eavesdropping of sensitive data on fiber links with Active Fiber Monitoring
Support resilient high-speed ring-based networks with Ethernet Protection Switched Ring (EPSRing™) and standards-based G.8032 ERPS
