Stock Status: 1x unit in stock

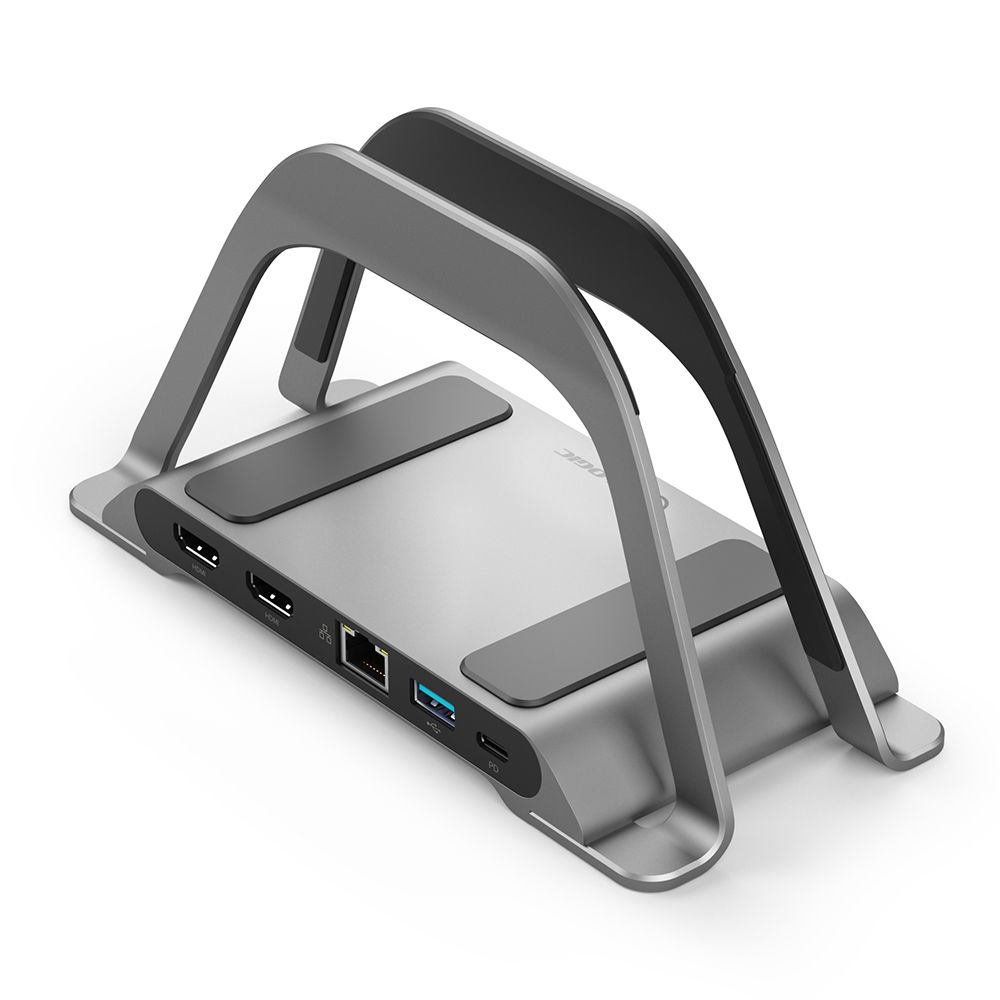

Expands the functionality of your USB-C Laptop/ MacBook by providing additional ports and has an extended bracket to clamp and store your Laptop or MacBook device, which keep your desk organised when in use.
Comprehensive Connectivity: 10-in-1 Hub
The hub easily expands the functionality of your USB-C Laptop/ MacBook by providing additional ports such as 2 x HDMI 4K@30Hz, 1 x USB-C (100W PD), 1 x Micro SD and SD Card Reader, 2 x USB-A with support for speeds up to 5Gbps (USB 3.1 Gen 1), a single USB-A (USB 2.0), USB-C (connected to the host), 3.5mm Audio Jack and a Gigabit ethernet port for a stable connection.
It has an extended bracket to clamp and store your Laptop or MacBook device, which keep your desk organised when in use.
Power Delivery Technology – 100W Charging
The docking station uses the latest Power Delivery Technology, that allows upstream charging of your USB-C enabled laptop or MacBook devices with up 100W of power while also transferring Video, Audio, Ethernet, and Data, all at the same time.
Dual Display – Up to 4K
The 10-in-1 dock can support up to two external displays connected to the 2 x HDMI outputs*. The dock supports extension or mirroring across the three external displays when used with a Windows Laptop or MacBook device.
* The quantity and resolution of video outputs supported is dependent on the capabilities of the computer used with the docking station. Refer to the resolution support table for details on the output capabilities of computers based on their specifications.
Plug and Play
To make the user experience simple and efficient, the Bolt Plus 10-in-1 Hub is equipped with a Plug and Play design, this feature eliminates the need to install any additional software or driver, all you need to do is simply plug the hub, and the device is ready to use.
Specs
| Weight & dimensions |
| Width |
190 mm |
| Depth |
90 mm |
| Height |
26.5 mm |
| Weight |
328 g |
| Ports & interfaces |
| Connectivity technology |
Wired |
| Host interface |
USB 3.2 Gen 1 (3.1 Gen 1) Type-C |
| USB 2.0 ports quantity |
1 |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity |
2 |
| HDMI ports quantity |
2 |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-C ports quantity |
1 |
| USB Power Delivery (USB PD) |
Yes |
| USB Power Delivery up to |
100 W |
| Combo headphone/mic port |
Yes |
| Packaging content |
| Cables included |
USB Type-C to USB Type-C |
| Manual |
Yes |
| Stand included |
Yes |
| Networking |
| Ethernet LAN |
Yes |
| Ethernet LAN (RJ-45) ports |
1 |
| Ethernet LAN data rates |
100,1000 Mbit/s |
| Performance |
| Product colour |
Grey |
| Card reader integrated |
Yes |
| Compatible memory cards |
MicroSD (TransFlash), SD |
| Maximum digital resolution |
4096 x 2160 pixels |
| Maximum refresh rate |
30 Hz |
| Plug and Play |
Yes |
| Housing material |
Aluminium |
| Certification |
FCC, CE, RoHS |
Features
ALOGIC Bolt Plus USB-C Docking Station with stand. Connectivity technology: Wired, Host interface: USB 3.2 Gen 1 (3.1 Gen 1) Type-C, USB Power Delivery up to: 100 W. Ethernet LAN data rates: 100,1000 Mbit/s. Product colour: Grey, Compatible memory cards: MicroSD (TransFlash), SD, Maximum digital resolution: 4096 x 2160 pixels. Width: 190 mm, Depth: 90 mm, Height: 26.5 mm. Cables included: USB Type-C to USB Type-C
Product Description
Expands the functionality of your USB-C Laptop/ MacBook by providing additional ports and has an extended bracket to clamp and store your Laptop or MacBook device, which keep your desk organised when in use.
Comprehensive Connectivity: 10-in-1 Hub
The hub easily expands the functionality of your USB-C Laptop/ MacBook by providing additional ports such as 2 x HDMI 4K@30Hz, 1 x USB-C (100W PD), 1 x Micro SD and SD Card Reader, 2 x USB-A with support for speeds up to 5Gbps (USB 3.1 Gen 1), a single USB-A (USB 2.0), USB-C (connected to the host), 3.5mm Audio Jack and a Gigabit ethernet port for a stable connection.
It has an extended bracket to clamp and store your Laptop or MacBook device, which keep your desk organised when in use.
Power Delivery Technology – 100W Charging
The docking station uses the latest Power Delivery Technology, that allows upstream charging of your USB-C enabled laptop or MacBook devices with up 100W of power while also transferring Video, Audio, Ethernet, and Data, all at the same time.
Dual Display – Up to 4K
The 10-in-1 dock can support up to two external displays connected to the 2 x HDMI outputs*. The dock supports extension or mirroring across the three external displays when used with a Windows Laptop or MacBook device.
* The quantity and resolution of video outputs supported is dependent on the capabilities of the computer used with the docking station. Refer to the resolution support table for details on the output capabilities of computers based on their specifications.
Plug and Play
To make the user experience simple and efficient, the Bolt Plus 10-in-1 Hub is equipped with a Plug and Play design, this feature eliminates the need to install any additional software or driver, all you need to do is simply plug the hub, and the device is ready to use.
