Stock Status: 1x unit in stock
The Aruba CX 8360 Switch Series is a modern, intelligent family of high-performance 1/10/25/40/100 GbE switches designed both for enterprise campus cores and data centers needing top-of-rack server connectivity and scale-out, rack-rack, spine, and leaf fabric topology aggregation. The Aruba CX 8360 Switch Series offers a flexible and innovative solution for addressing the application, security, and scalability demands of emerging end-to-end, enterprise edge-cloud network connectivity requirements.
The Aruba CX 8360 Switch Series simplifies campus core and data center network and IT operations through a combination of cutting-edge hardware, a cloud-native operating system, and intuitive software-defined orchestration tools. By providing intelligent automation, distributed analytics, and always-on infrastructure, customers can simplify operations, improve IT efficiency, and enable always-on network availability.
Features
High-speed Fully Distributed Architecture
- The Aruba CX 8360 Switch Series offers multi-terabit switching capacity with line rate Gigabit Ethernet to meet the demands of bandwidth-intensive applications.
- Wire speed, line rate connectivity, and flexibility for 1/10/25GbE (SFP/SFP+/SFP28) and 40/100 GbE (QSFP+/QSFP28) featured in a compact 1U form factor.
- 4x10Gbps and 4x25Gbps break out from 40/100G ports offers advanced flexibility in connectivity and aggregation.
- MACsec support enables secured connectivity at 10 and 25GbE speeds in untrusted environments.
- Investment protection allows customers to migrate from older 1GbE/10GbE to faster 25GbE, or 10GbE/40GbE uplinks to 100GbE ports.
Simplified IT Operations
- The Aruba CX 8360 Switch Series simplifies network design and operations for both campus and emerging enterprise edge data centers by offering a consistent, cloud-native architecture and operating model that spans switching platforms and deployment domains.
- Aruba AOS-CX end-to-end operating system enables a consistent operator experience across the network with full automation, security, and visibility. Tight integration into other 3rd party management stacks (HCI and Virtualized) for a seamless configuration and operational experience.
- Aruba AOS-CX provides an always-on, resilient network operating system and infrastructure that automatically isolates software failures and provides for non-disruptive recovery.
- Aruba Virtual Switching Extension (VSX) provides a redundant architecture in both hardware and software to facilitate no downtime—even during upgrades—across campus and data center networks.
Accelerated Service Provisioning
- The Aruba CX 8360 Switch Series speeds infrastructure provisioning with software-defined fabric automation and orchestration.
- REST APIs and Python scripting provide fine-grained programmability. Microservices architecture enables full integration with other workflow systems and services.
- Aruba NetEdit empowers IT teams to orchestrate configuration changes across multiple switches using intelligent automation and analytics, verifying service rollouts are consistent, conformant, and error-free.
- Supports API-driven based, software-defined orchestration with Aruba Fabric Composer to simplify and accelerates leaf-spine network fabric provisioning across rack-scale compute and storage infrastructure.
Increased Visibility and Control
- The Aruba CX 8360 Switch Series provides real-time, network-wide visibility with analytics in every switch. Troubleshoot and fix problems faster with Aruba IOPs by automatically detecting and dynamically solving network issues before your business is impacted.
- Integrated Network Analytics Engine (NAE) performs intelligent monitoring, detects problems in real time, and analyzes trends to help predict or even avoid future security and performance issues.
- Support for VMware® NSX seamlessly bridges physical and virtual infrastructure, delivering unprecedented performance, agility, and security for data center networks.
- When used with Aruba Fabric Composer, administrators gain end-to-end network visibility between virtual machines, port groups, vSwitches, physical NICs, and how they are all connected to Aruba CX switch ports. This greatly simplifies troubleshooting of connectivity and performance problems.
Specs
| Ports & interfaces |
| SFP+ module slots quantity |
24 |
| QSFP+ module slots quantity |
2 |
| Console port |
RJ-45 |
| Networking |
| Networking standards |
IEEE 802.1AE,IEEE 802.1AX,IEEE 802.1Q,IEEE 802.1ab,IEEE 802.1ak,IEEE 802.1p,IEEE 802.1s,IEEE 802.1v,IEEE 802.1w,IEEE 802.3ad,IEEE 802.3ae,IEEE 802.3an,IEEE 802.3ba,IEEE 802.3by,IEEE 802.3cc,IEEE 802.3x,IEEE 802.3z |
| 10G support |
Y |
| Port mirroring |
Y |
| Link aggregation |
Y |
| Spanning tree protocol |
Y |
| Ethernet LAN data rates |
1000,10000,40000,100000 Mbit/s |
| VLAN support |
Y |
| Number of VLANs |
4094 |
| Power |
| Power supply included |
Y |
| Redundant power supply (RPS) support |
Y |
| Number of power supply units |
2 |
| AC input voltage |
100 - 240 V |
| AC input frequency |
50/60 Hz |
| Power consumption (max) |
550 W |
| Operational conditions |
| Operating temperature (T-T) |
0 - 45 °C |
| Storage temperature (T-T) |
-40 - 70 °C |
| Operating relative humidity (H-H) |
15 - 95% |
| Storage relative humidity (H-H) |
15 - 95% |
| Weight & dimensions |
| Width |
442.5 mm |
| Depth |
406.4 mm |
| Height |
44 mm |
| Weight |
8.07 kg |
| Security |
| DHCP features |
DHCP client,DHCP server |
| Access Control List (ACL) |
Y |
| IGMP snooping |
Y |
| SSH/SSL support |
Y |
| Authentication type |
RADIUS |
| Data transmission |
| MAC address table |
212992 entries |
| Switching capacity |
2400 Gbit/s |
| Throughput |
2000 Mpps |
| Jumbo frames support |
Y |
| Packet buffer memory |
32 MB |
| Management features |
| Switch type |
Managed |
| Switch layer |
L3 |
| Quality of Service (QoS) support |
Y |
| Protocols |
| Management protocols |
SNMP 2, SNMP 3, RMON, TFTP, SSH, SSH-2, CLI, SFTP, NTP, ICMP, IPv4, IPv6, RSTP |
| Power over Ethernet (PoE) |
| Power over Ethernet (PoE) |
N |
| Design |
| Rack mounting |
Y |
| Form factor |
1U |
| Product colour |
Black |
| Redundant fans support |
Y |
| Airflow direction |
Front-to-back airflow |
| Number of fans |
3 fan(s) |
| Performance |
| Built-in processor |
Y |
| Processor frequency |
1800 MHz |
| Internal memory |
16384 MB |
| Flash memory |
32768 MB |
| Multicast features |
| Multicast support |
Y |
Features

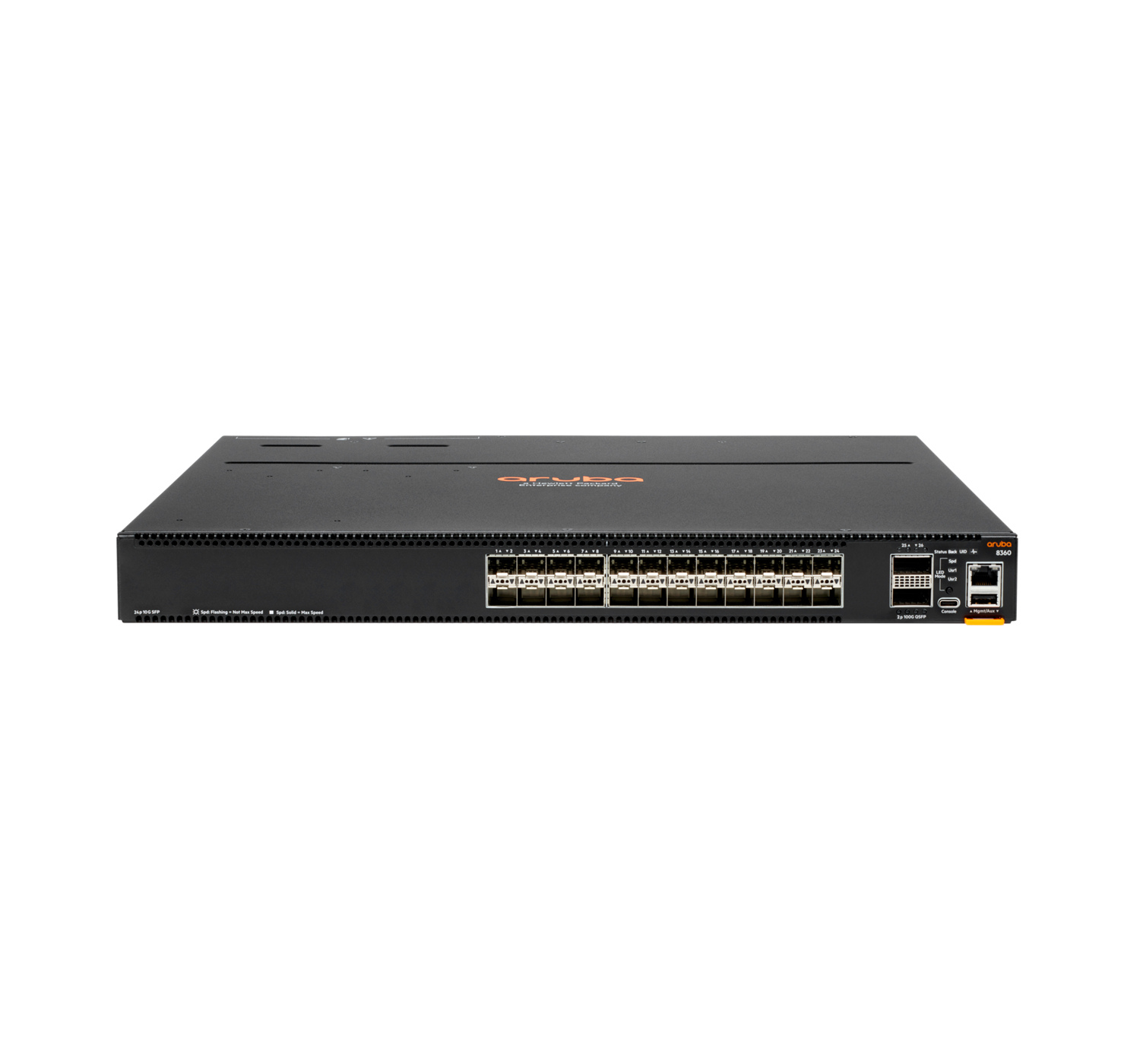

Hewlett Packard Enterprise Aruba 8360-24XF2C. Switch type: Managed, Switch layer: L3. Console port: RJ-45. MAC address table: 212992 entries, Switching capacity: 2400 Gbit/s. Networking standards: IEEE 802.1AE,IEEE 802.1AX,IEEE 802.1Q,IEEE 802.1ab,IEEE 802.1ak,IEEE 802.1p,IEEE 802.1s,IEEE.... Rack mounting, Form factor: 1U
Product Description
The Aruba CX 8360 Switch Series is a modern, intelligent family of high-performance 1/10/25/40/100 GbE switches designed both for enterprise campus cores and data centers needing top-of-rack server connectivity and scale-out, rack-rack, spine, and leaf fabric topology aggregation. The Aruba CX 8360 Switch Series offers a flexible and innovative solution for addressing the application, security, and scalability demands of emerging end-to-end, enterprise edge-cloud network connectivity requirements.
The Aruba CX 8360 Switch Series simplifies campus core and data center network and IT operations through a combination of cutting-edge hardware, a cloud-native operating system, and intuitive software-defined orchestration tools. By providing intelligent automation, distributed analytics, and always-on infrastructure, customers can simplify operations, improve IT efficiency, and enable always-on network availability.
Features
High-speed Fully Distributed Architecture
- The Aruba CX 8360 Switch Series offers multi-terabit switching capacity with line rate Gigabit Ethernet to meet the demands of bandwidth-intensive applications.
- Wire speed, line rate connectivity, and flexibility for 1/10/25GbE (SFP/SFP+/SFP28) and 40/100 GbE (QSFP+/QSFP28) featured in a compact 1U form factor.
- 4x10Gbps and 4x25Gbps break out from 40/100G ports offers advanced flexibility in connectivity and aggregation.
- MACsec support enables secured connectivity at 10 and 25GbE speeds in untrusted environments.
- Investment protection allows customers to migrate from older 1GbE/10GbE to faster 25GbE, or 10GbE/40GbE uplinks to 100GbE ports.
Simplified IT Operations
- The Aruba CX 8360 Switch Series simplifies network design and operations for both campus and emerging enterprise edge data centers by offering a consistent, cloud-native architecture and operating model that spans switching platforms and deployment domains.
- Aruba AOS-CX end-to-end operating system enables a consistent operator experience across the network with full automation, security, and visibility. Tight integration into other 3rd party management stacks (HCI and Virtualized) for a seamless configuration and operational experience.
- Aruba AOS-CX provides an always-on, resilient network operating system and infrastructure that automatically isolates software failures and provides for non-disruptive recovery.
- Aruba Virtual Switching Extension (VSX) provides a redundant architecture in both hardware and software to facilitate no downtime—even during upgrades—across campus and data center networks.
Accelerated Service Provisioning
- The Aruba CX 8360 Switch Series speeds infrastructure provisioning with software-defined fabric automation and orchestration.
- REST APIs and Python scripting provide fine-grained programmability. Microservices architecture enables full integration with other workflow systems and services.
- Aruba NetEdit empowers IT teams to orchestrate configuration changes across multiple switches using intelligent automation and analytics, verifying service rollouts are consistent, conformant, and error-free.
- Supports API-driven based, software-defined orchestration with Aruba Fabric Composer to simplify and accelerates leaf-spine network fabric provisioning across rack-scale compute and storage infrastructure.
Increased Visibility and Control
- The Aruba CX 8360 Switch Series provides real-time, network-wide visibility with analytics in every switch. Troubleshoot and fix problems faster with Aruba IOPs by automatically detecting and dynamically solving network issues before your business is impacted.
- Integrated Network Analytics Engine (NAE) performs intelligent monitoring, detects problems in real time, and analyzes trends to help predict or even avoid future security and performance issues.
- Support for VMware® NSX seamlessly bridges physical and virtual infrastructure, delivering unprecedented performance, agility, and security for data center networks.
- When used with Aruba Fabric Composer, administrators gain end-to-end network visibility between virtual machines, port groups, vSwitches, physical NICs, and how they are all connected to Aruba CX switch ports. This greatly simplifies troubleshooting of connectivity and performance problems.
