Stock Status: 1x unit in stock

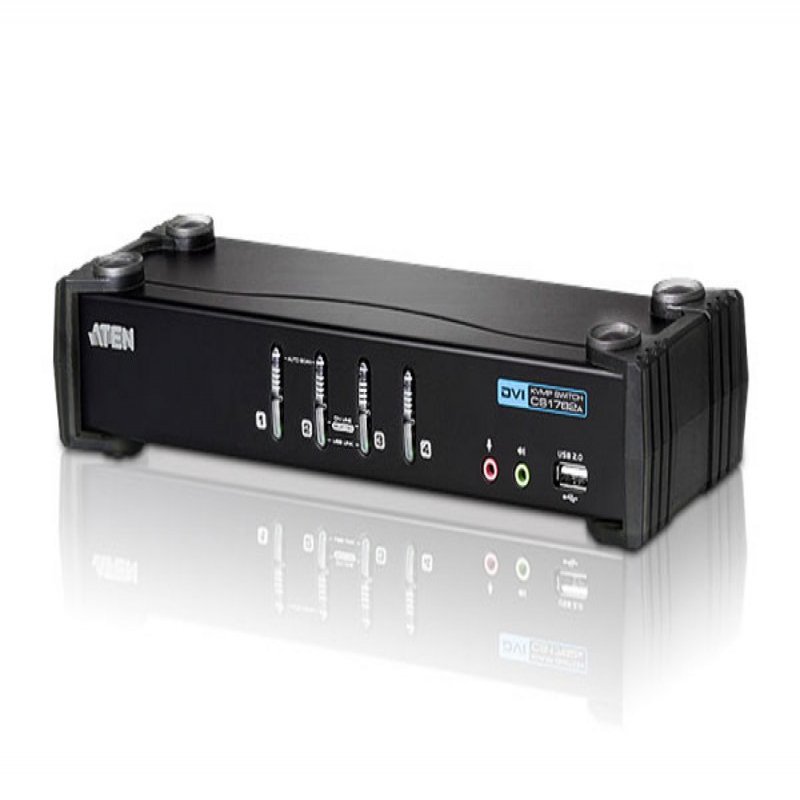

The CubiQ™ CS1764A USB 2.0 DVI KVMP™ Switch charts a revolutionary new direction in KVM (Keyboard, Video, Mouse) switch functionality by combining a 4 port KVM switch with a 2 port USB 2.0 hub at the same time as it provides an interface for a digital monitor (DVI).
In addition, the CS1764A comes with ATEN's new Video DynaSync™ technology, which optimizes display resolution, and power on detection, which means if one computer is powered off, the CS1764A will automatically switch to the next powered-on computer.
As a KVM switch, it allows users to access four computers from a single USB keyboard, USB mouse, and monitor console. As a USB 2.0 hub, it permits each computer to access any peripherals connected to the hub on a 'one computer at a time' basis.
Features:
-One USB console controls four DVI computers and two additional USB 2.0 devices
-2-port USB 2.0 hub built in
-Fully compliant with the USB 2.0 specification
-Computer selection via front panel pushbuttons and hotkeys
-Audio enabled - full bass response provides a rich experience for 2.1 channel surround sound systems
-Multiplatform support - Windows, Linux, Mac and Sun
-Superior video quality - 1920 x 1200, 60Hz; DDC2B
-Independent switching of KVM, USB, and Audio focus
-DVI digital and analog monitor support - fully compliant with the DVI specifications
-HDCP compliant
-Video DynaSync™ - stores the console monitor's EDID (Extended Display Identification Data) to optimize display resolution
-Power on detection - if one computer is powered off, the CS1764A will automatically switch to the next powered-on computer
-Console mouse port emulation/bypass feature supports most mouse drivers and multifunction mice
-Sun /Mac keyboard support and emulation*
-Auto Scan Mode for monitoring all computers
-Firmware upgradable via USB
* 1. PC keyboard combinations emulate Sun/Mac keyboards
2. Sun/Mac keyboards only work with their own computers
Package Contents
1x CS1764A USB 2.0 DVI KVMP™ Switch
4x KVM Cable (DVI-D, USB, Audio; 1.8m/6ft)
1x Power Adapter
1x User Manual
1x Quick Start Guide
Specs
| Ports & interfaces |
| Number of computers controlled |
4 |
| Keyboard port type |
USB |
| Mouse port type |
USB |
| Video port type |
DVI-I |
| Console ports |
3.5mm headphone, 3.5mm mic, DVI-I, USB A |
| DVI-I ports quantity |
5 |
| Console USB ports quantity |
2 |
| USB hub |
Yes |
| USB 2.0 ports quantity |
4 |
| USB connector type |
USB Type-A |
| USB version |
2.0 |
| Audio connections |
Yes |
| Headphone outputs |
5 |
| Number of microphone inputs |
5 |
| DC-in jack |
Yes |
| Weight & dimensions |
| Width |
270 mm |
| Depth |
88 mm |
| Height |
55.5 mm |
| Weight |
940 g |
| Operational conditions |
| Operating temperature (T-T) |
0 - 50 °C |
| Storage temperature (T-T) |
-20 - 60 °C |
| Operating relative humidity (H-H) |
0 - 80% |
| Power |
| Power source |
DC |
| Input voltage |
5.3 V |
| Power consumption (typical) |
10.7 W |
| System requirements |
| Windows operating systems supported |
Yes |
| Linux operating systems supported |
Yes |
| Mac operating systems supported |
Yes |
| Other operating systems supported |
Yes |
| Display |
| Built-in display |
No |
| On Screen Display (OSD) |
No |
| Packaging content |
| Cables included |
DC, KVM |
| Quick installation guide |
Yes |
| Manual |
Yes |
| Design |
| Product colour |
Black |
| Housing material |
Metal |
| LED indicators |
USB, Yes |
| Push button |
Yes |
| Hot keys |
Yes |
| Performance |
| HD type |
WUXGA |
| Maximum resolution |
1920 x 1200 pixels |
| Video bandwidth |
60 Hz |
| Scan interval |
1,99 s |
| DDC2B support |
Yes |
| HDCP |
Yes |
| Power on detection |
Yes |
| Firmware upgradeable |
Yes |
| Logistics data |
| Harmonized System (HS) code |
85176200 |
| Sustainability |
| Compliance certificates |
RoHS |
Features
ATEN CS1764A. Keyboard port type: USB, Mouse port type: USB, Video port type: DVI-I. HD type: WUXGA, Maximum resolution: 1920 x 1200 pixels, Video bandwidth: 60 Hz. Product colour: Black, Housing material: Metal, LED indicators: USB, Yes. Power source: DC, Input voltage: 5.3 V, Power consumption (typical): 10.7 W. Compliance certificates: RoHS
