Stock Status: 1x unit in stock
As the scope of meeting rooms continually evolves, it’s critical that we keep pace and maintain fast data transmission that extends to a longer distance should the occasion arise. In such cases, the UCE33100 becomes your perfect partner as it extends your USB connectivity across a distance of up to 100 m over a Cat 6A cable to assure a smooth meeting experience and contribute toward your overall operational efficiency at the office.
5 Gbps High-Speed Data Transmission over 100 m
Transmit USB 3.2 data at an ultra-high 5 Gbps speed spanning a distance up to 100 m with a Cat 6A cable*. (Product recommendation: 2L-29330)
4 X USB Type-A Ports for Plug-n-Play Peripheral Connections
Enhance the resourcefulness of the extender by tapping into its 4 USB type-A ports and have a wide range of peripherals at your disposal.
PoC Power Supply for Ultimate Usability Convenience
Either the local or remote unit could be plugged into a power source, powered by just a Cat 6A connection cable.
Easily Mountable for Versatile Deployment
For added ease of installation and expansion, a mounting kit is provided as a resourceful accessory to facilitate easy and convenient installation.
Applications
The additional length afforded by the extender (up to 100 m) means it can be a worthwhile versatile addition to the various spacious applications below:
- Conference/Education
- Industrial Control/Healthcare
Specs
| Weight & dimensions |
| Width |
85 mm |
| Depth |
107.5 mm |
| Height |
25.5 mm |
| Weight |
260 g |
| Operational conditions |
| Operating temperature (T-T) |
0 - 40 °C |
| Storage temperature (T-T) |
-20 - 60 °C |
| Operating relative humidity (H-H) |
20 - 90% |
| Ports & interfaces |
| Ethernet LAN (RJ-45) ports |
2 |
| RJ-45 ports quantity (transmitter) |
1 |
| USB Type-C ports quantity (transmitter) |
1 |
| USB Type-C ports quantity (receiver) |
1 |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity |
4 |
| DC-in jack |
Yes |
| Power |
| Power consumption (typical) |
2.64 W |
| Design |
| Product colour |
Black |
| Housing material |
Metal |
| LED indicators |
Yes |
| Performance |
| Type |
Network transmitter & receiver |
| Maximum transfer distance |
100 m |
| Cable types supported |
Cat6a |
Features

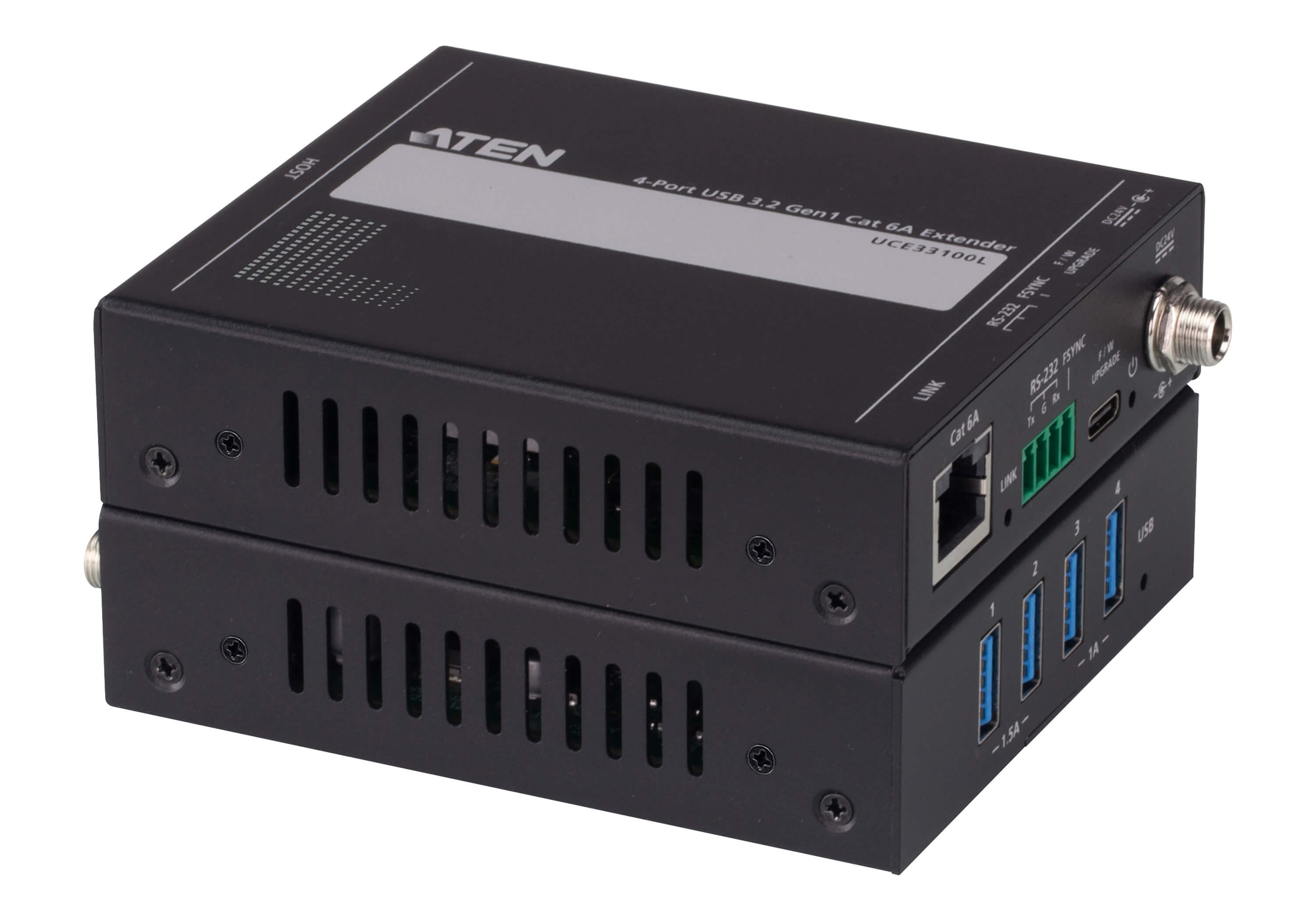

ATEN UCE33100. Type: Network transmitter & receiver, Maximum transfer distance: 100 m, Cable types supported: Cat6a. Product colour: Black, Housing material: Metal. Power consumption (typical): 2.64 W. Width: 85 mm, Depth: 107.5 mm, Height: 25.5 mm
Product Description
As the scope of meeting rooms continually evolves, it’s critical that we keep pace and maintain fast data transmission that extends to a longer distance should the occasion arise. In such cases, the UCE33100 becomes your perfect partner as it extends your USB connectivity across a distance of up to 100 m over a Cat 6A cable to assure a smooth meeting experience and contribute toward your overall operational efficiency at the office.
5 Gbps High-Speed Data Transmission over 100 m
Transmit USB 3.2 data at an ultra-high 5 Gbps speed spanning a distance up to 100 m with a Cat 6A cable*. (Product recommendation: 2L-29330)
4 X USB Type-A Ports for Plug-n-Play Peripheral Connections
Enhance the resourcefulness of the extender by tapping into its 4 USB type-A ports and have a wide range of peripherals at your disposal.
PoC Power Supply for Ultimate Usability Convenience
Either the local or remote unit could be plugged into a power source, powered by just a Cat 6A connection cable.
Easily Mountable for Versatile Deployment
For added ease of installation and expansion, a mounting kit is provided as a resourceful accessory to facilitate easy and convenient installation.
Applications
The additional length afforded by the extender (up to 100 m) means it can be a worthwhile versatile addition to the various spacious applications below:
- Conference/Education
- Industrial Control/Healthcare
