Stock Status: 1x unit in stock

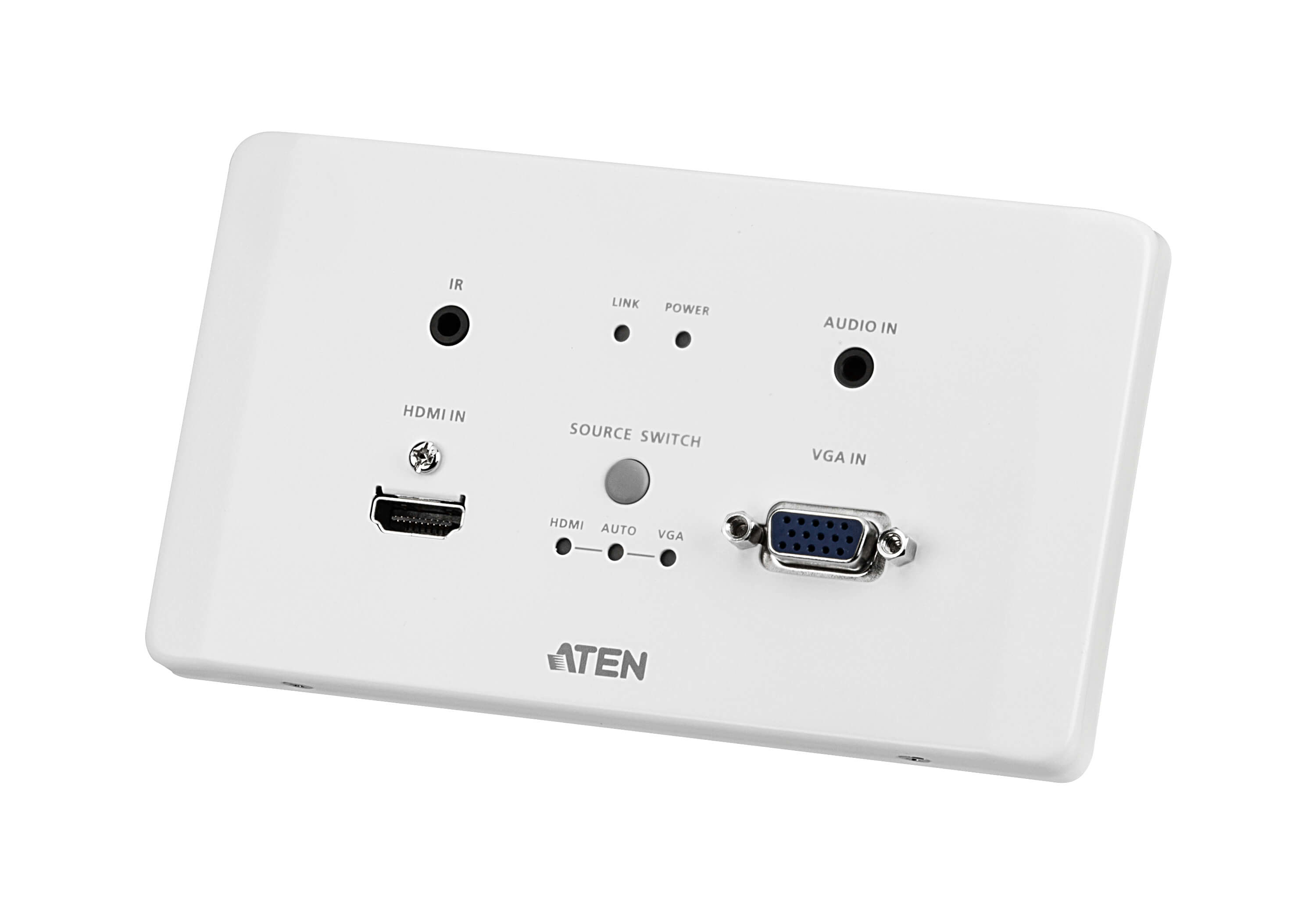

ATEN VE2812AEUT is a transmitter for sending VGA (with audio) and HDMI signals up to 100 m over a single Cat 5e/6/6a or ATEN 2L-2910 Cat 6 cable. Featuring built-in PoH (Power over HDBaseT) function, the VE2812AEUT receives power supply from the HDBaseT output port on the connected device. This eliminates the need for a power adapter and reduces the hassle of power line deployment behind the wall. With EU Wall Plate design, the VE2812AEUT can be conveniently mounted in a two – gang junction box. The VE2812AEUT guarantees reliable transmission of HDMI / VGA signals. For HDMI signal transmission, it supports 3D, Deep Color, and embedded HD lossless audio formats. To pursue longer distance transmission, it supports Long Reach Mode up to 150 m via a single Cat 5e/6 cable at resolutions up to 1080p.
For utility flexibility, the VE2812AEUT can serve as a video switch by connecting two sources and distribute them to an identical output. The compact wall plate design does away with bulky cables, allowing a neat and convenient installation in the wall or the table. Therefore, the VE2812AEUT is specifically designed for use in meeting rooms, digital educational environment or wherever needed to meet application requirements.
Note: 1. All pictures shown are for illustration purpose only. Actual color of the product is based on the product you receive.
2. Optional accessory (2X-050G) is available with a separate purchase if you wish to mount the VE2812AEUT into the cable cubby.
Specs
| Ports & interfaces |
| Connectivity technology |
Wired |
| VGA (D-Sub) input ports |
1 |
| HDMI in |
1 |
| Audio input |
1 x Mini Stereo Jack Female |
| Remote (IR) input |
1 |
| Weight & dimensions |
| Width |
151 mm |
| Depth |
86 mm |
| Height |
51.7 mm |
| Weight |
300 g |
| Packaging data |
| Quantity per pack |
1 pc(s) |
| Operational conditions |
| Operating temperature (T-T) |
0 - 40 °C |
| Storage temperature (T-T) |
-20 - 60 °C |
| Operating relative humidity (H-H) |
0 - 80% |
| Power |
| Power over Ethernet (PoE) |
Yes |
| Packaging content |
| AC adapter included |
Yes |
| Quick start guide |
Yes |
| Mounting kit |
Yes |
| Features |
| Type |
AV transmitter |
| Maximum resolution |
4096 x 2160 pixels |
| Cable types supported |
Cat5e, Cat6, Cat6a |
| Maximum transfer distance |
150 m |
| LED indicators |
Link, Power, Status |
| Supported graphics resolutions |
1920 x 1080 (HD 1080), 1920 x 1200 (WUXGA), 3840 x 2160, 4096 x 2160 |
| Bandwidth |
10.2 Gbit/s |
| Material |
Metal |
| Control type |
Buttons, Slider |
| Impedance |
100 Ω |
| Product colour |
White |
| Certification |
RoHS |
Features
ATEN VE2812AEUT. Type: AV transmitter, Maximum resolution: 4096 x 2160 pixels, Cable types supported: Cat5e, Cat6, Cat6a. Connectivity technology: Wired, Audio input: 1 x Mini Stereo Jack Female. Width: 151 mm, Depth: 86 mm, Height: 51.7 mm. Quantity per pack: 1 pc(s)
Product Description
ATEN VE2812AEUT is a transmitter for sending VGA (with audio) and HDMI signals up to 100 m over a single Cat 5e/6/6a or ATEN 2L-2910 Cat 6 cable. Featuring built-in PoH (Power over HDBaseT) function, the VE2812AEUT receives power supply from the HDBaseT output port on the connected device. This eliminates the need for a power adapter and reduces the hassle of power line deployment behind the wall. With EU Wall Plate design, the VE2812AEUT can be conveniently mounted in a two – gang junction box. The VE2812AEUT guarantees reliable transmission of HDMI / VGA signals. For HDMI signal transmission, it supports 3D, Deep Color, and embedded HD lossless audio formats. To pursue longer distance transmission, it supports Long Reach Mode up to 150 m via a single Cat 5e/6 cable at resolutions up to 1080p.
For utility flexibility, the VE2812AEUT can serve as a video switch by connecting two sources and distribute them to an identical output. The compact wall plate design does away with bulky cables, allowing a neat and convenient installation in the wall or the table. Therefore, the VE2812AEUT is specifically designed for use in meeting rooms, digital educational environment or wherever needed to meet application requirements.
Note: 1. All pictures shown are for illustration purpose only. Actual color of the product is based on the product you receive.
2. Optional accessory (2X-050G) is available with a separate purchase if you wish to mount the VE2812AEUT into the cable cubby.
