Stock Status: 1x unit in stock

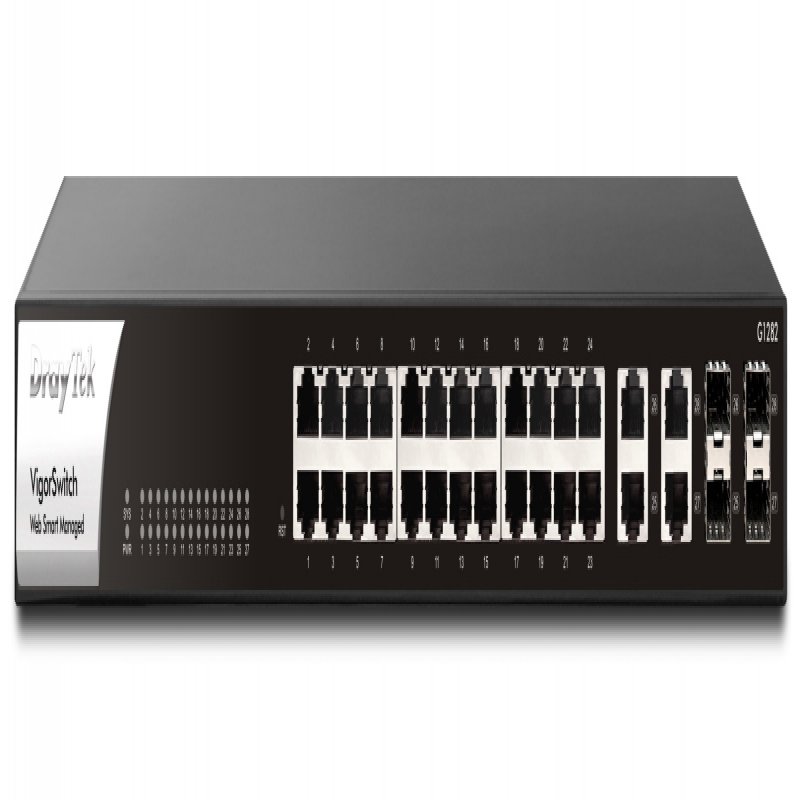

VigorSwitch G1282
Smart Managed Gigabit Switch with 24 Gigabit Ports & 4 SFP Ports
The VigorSwitch G1282 is a high-performance, Smart Managed Gigabit Ethernet switch. With 24 RJ-45 Gigabit LAN ports, it's ideal for adding network ports to a DrayTek Vigor router, implementing complex networks with VLANs and adding port-level security with the switch's Access Control List.
Designed for centralised management, the VigorSwitch G1282 can be provisioned and monitored with the VigorACS management platform, the free VigorConnect single site management system and/or, with a DrayTek Vigor router’s Central Switch Management. Easily provision VLAN configuration through the router and clone switch configurations. Drastically reduce the setup time required for a complex network and configure an entire DrayTek network remotely.
Manage Centrally or Stand-Alone
Configure and monitor the switch through the VigorACS cloud management platform, through VigorConnect, through a DrayTek Vigor router, or directly via the device's Web Interface.
Automatic VLAN Assignment
Voice, Surveillance and MAC VLANs dynamically assign VLANs to IP Phones, IP Cameras and more. Ensures the same network setup and Quality of Service regardless of where devices are plugged in.
Useful Security Features
Protect your network against unauthorised access and network problems with IP Conflict Prevention, DoS Defence, Access Control Lists for IPv4, IPv6, MAC and IP Source Guard.
IP Camera Management
Manage IP Cameras easily with detection and management of ONVIF cameras. Use PoE Device Check, auto-generated IP Camera topology and Camera Snapshots to detect & troubleshoot problems.
4 SFP Ports for Uplinks
Uplink to Fibre or direct-attach to additional switches, with 4x Gigabit SFP Ports. Connect switches over long distances with SFP Fibre modules.
Rack Mountable & Silent
Fit the VigorSwitch G1282 with the included rack mounting kit into any standard 19” rack.
The switch is fanless and silent, ideal for use in a quiet office environment.
Specs
| Ports & interfaces |
| Basic switching RJ-45 Ethernet ports quantity |
24 |
| Basic switching RJ-45 Ethernet ports type |
Gigabit Ethernet (10/100/1000) |
| Installed SFP modules quantity |
4 |
| Networking |
| Networking standards |
IEEE 802.1D, IEEE 802.1Q, IEEE 802.1ab, IEEE 802.1p, IEEE 802.1w, IEEE 802.3, IEEE 802.3ab, IEEE 802.3ad, IEEE 802.3az, IEEE 802.3u, IEEE 802.3x |
| 10G support |
N |
| Copper ethernet cabling technology |
10BASE-T, 100BASE-T, 1000BASE-T |
| Port mirroring |
Y |
| Spanning tree protocol |
Y |
| Ethernet LAN data rates |
1000 Mbit/s |
| MAC address auto-learning supported |
Y |
| VLAN support |
Y |
| Virtual LAN features |
MAC address-based VLAN, Port-based VLAN, Voice VLAN |
| Power |
| Power source |
AC |
| Power supply included |
Y |
| AC input voltage |
100 - 240 V |
| Power consumption (max) |
36 W |
| Operational conditions |
| Operating temperature (T-T) |
0 - 50 °C |
| Storage temperature (T-T) |
-20 - 70 °C |
| Operating relative humidity (H-H) |
10 - 90% |
| Weight & dimensions |
| Width |
441 mm |
| Depth |
206 mm |
| Height |
44 mm |
| Weight |
2.8 kg |
| Security |
| DHCP features |
DHCP client |
| Access Control List (ACL) |
Y |
| IGMP snooping |
Y |
| Packaging data |
| Cables included |
LAN (RJ-45) |
| Quick start guide |
Y |
| Rack mount kit |
Y |
| Data transmission |
| MAC address table |
8000 entries |
| Switching capacity |
56 Gbit/s |
| Forwarding rate |
41.7 Mpps |
| Jumbo frames support |
Y |
| Jumbo frames |
9 |
| Packet buffer memory |
4.1 MB |
| Management features |
| Switch type |
Managed |
| Quality of Service (QoS) support |
Y |
| Web-based management |
Y |
| Cloud-managed |
Y |
| ARP inspection |
Y |
| Configuring Location Settings (CLI) |
Y |
| Power over Ethernet (PoE) |
| Power over Ethernet (PoE) |
N |
| Design |
| Rack mounting |
Y |
| Form factor |
1U |
| Product colour |
Black |
| Reset button |
Y |
| Performance |
| Fanless |
N |
| Multicast features |
| Multicast support |
Y |
Features
Draytek G1282. Switch type: Managed. Basic switching RJ-45 Ethernet ports type: Gigabit Ethernet (10/100/1000), Basic switching RJ-45 Ethernet ports quantity: 24, Installed SFP modules quantity: 4. MAC address table: 8000 entries, Switching capacity: 56 Gbit/s. Networking standards: IEEE 802.1D, IEEE 802.1Q, IEEE 802.1ab, IEEE 802.1p, IEEE 802.1w, IEEE 802.3, IEEE 802.3ab, IEEE.... Rack mounting, Form factor: 1U
Product Description
VigorSwitch G1282
Smart Managed Gigabit Switch with 24 Gigabit Ports & 4 SFP Ports
The VigorSwitch G1282 is a high-performance, Smart Managed Gigabit Ethernet switch. With 24 RJ-45 Gigabit LAN ports, it's ideal for adding network ports to a DrayTek Vigor router, implementing complex networks with VLANs and adding port-level security with the switch's Access Control List.
Designed for centralised management, the VigorSwitch G1282 can be provisioned and monitored with the VigorACS management platform, the free VigorConnect single site management system and/or, with a DrayTek Vigor router’s Central Switch Management. Easily provision VLAN configuration through the router and clone switch configurations. Drastically reduce the setup time required for a complex network and configure an entire DrayTek network remotely.
Manage Centrally or Stand-Alone
Configure and monitor the switch through the VigorACS cloud management platform, through VigorConnect, through a DrayTek Vigor router, or directly via the device's Web Interface.
Automatic VLAN Assignment
Voice, Surveillance and MAC VLANs dynamically assign VLANs to IP Phones, IP Cameras and more. Ensures the same network setup and Quality of Service regardless of where devices are plugged in.
Useful Security Features
Protect your network against unauthorised access and network problems with IP Conflict Prevention, DoS Defence, Access Control Lists for IPv4, IPv6, MAC and IP Source Guard.
IP Camera Management
Manage IP Cameras easily with detection and management of ONVIF cameras. Use PoE Device Check, auto-generated IP Camera topology and Camera Snapshots to detect & troubleshoot problems.
4 SFP Ports for Uplinks
Uplink to Fibre or direct-attach to additional switches, with 4x Gigabit SFP Ports. Connect switches over long distances with SFP Fibre modules.
Rack Mountable & Silent
Fit the VigorSwitch G1282 with the included rack mounting kit into any standard 19” rack.
The switch is fanless and silent, ideal for use in a quiet office environment.
