| Video |
| HD type |
4K Ultra HD |
| Maximum video resolution |
3840 x 2160 pixels |
| Total megapixels |
20 MP |
| Supported video modes |
720p, 1080p |
| Supported graphics resolutions |
800 x 600 (SVGA), 1024 x 768 (XGA), 1280 x 1024 (SXGA), 1280 x 720 (HD 720), 1280 x 768 (WXGA), 1600 x 1200, 1680 x 1050 (WSXGA+), 1920 x 1080 (HD 1080), 3840 x 2160 |
| Maximum frame rate |
30 fps |
| Video formats supported |
AVC, H.264, H.265 |
| Audio |
| Built-in speaker(s) |
Yes |
| Number of speakers |
2 |
| Voice codecs |
G.711, G.719, G.722, G.722.1, G.728, G.729A |
| Automatic gain control |
Yes |
| RMS rated power |
10 W |
| Technical details |
| Total carbon footprint (kg of CO2e) |
50 |
| General Product Safety Regulation (GPSR) URL |
https://kaas.hpcloud.hp.com/pdf-public/pdf_11006260_en-US-1.pdf |
| Operational conditions |
| Operating temperature (T-T) |
0 - 40 °C |
| Operating relative humidity (H-H) |
15 - 80% |
| Storage temperature (T-T) |
-40 - 70 °C |
| Storage relative humidity (H-H) |
5 - 95% |
| Heat dissipation |
55 BTU/h |
| Weight & dimensions |
| Width |
576.8 mm |
| Depth |
66.1 mm |
| Height |
74.8 mm |
| Weight |
1.14 kg |
| Ports & interfaces |
| HDMI output ports quantity |
2 |
| HDMI input ports quantity |
1 |
| HDMI version |
1.4/2.0 |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity |
2 |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-C ports quantity |
1 |
| Ethernet LAN (RJ-45) ports |
1 |
| Networking |
| Ethernet LAN |
Yes |
| Ethernet LAN data rates |
10,100,1000 Mbit/s |
| Wi-Fi |
Yes |
| Wi-Fi standards |
802.11a, 802.11b, 802.11g, Wi-Fi 4 (802.11n), Wi-Fi 5 (802.11ac), Wi-Fi 6 (802.11ax) |
| Networking standards |
IEEE 802.3bt |
| Security algorithms |
128-bit AES, 256-bit AES, TLS |
| Power |
| Power source type |
PoE |
| DC input voltage |
42.5 - 57 V |
| Packaging content |
| Cables included |
HDMI, LAN (RJ-45) |
| Mounting kit |
Yes |
| Camera |
| Megapixel (approx.) |
20 MP |
| Zoom capability |
Yes |
| Digital zoom |
5x |
| Horizontal field of view |
120° |
| Diagonal field of view |
132° |
| Microphone |
| Microphone sensitivity |
-26 dB |
| Number of microphones |
4 |
| Features |
| Cable lock slot |
Yes |
| Cable lock slot type |
Kensington |
| Logistics data |
| Country of origin |
Mexico |
| Pallet gross weight |
370 kg |
| UNSPSC-code |
45111902 |
| Performance |
| Product type |

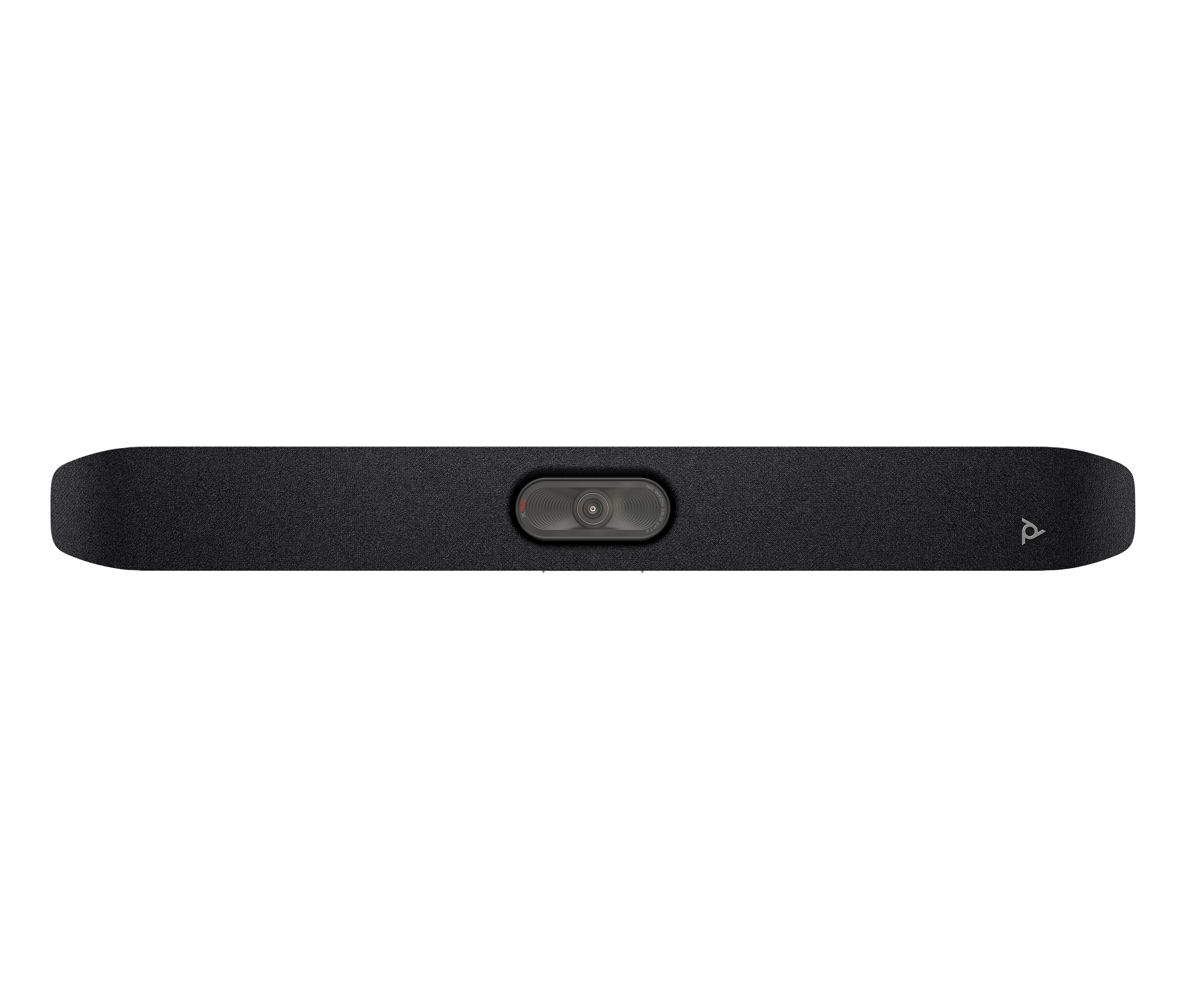

Video collaboration bar |
| Product colour |
Black |
| Number of cameras |
1 |
| Bluetooth |
Yes |
| Bluetooth version |
5.0 |
| Signal-to-Noise Ratio (SNR) |
63 dB |
| Sustainability |
| Sustainable technologies and materials |
Contains at least 50% recycled plastic content; Fabric contains 100% recycled PET; Paper-based packaging derived from at least 70% recycled materials |
| Sustainability compliance |
Yes |
| Packaging data |
| Package width |
118 mm |
| Package depth |
194 mm |
| Package height |
667 mm |
| Package weight |
3 kg |
