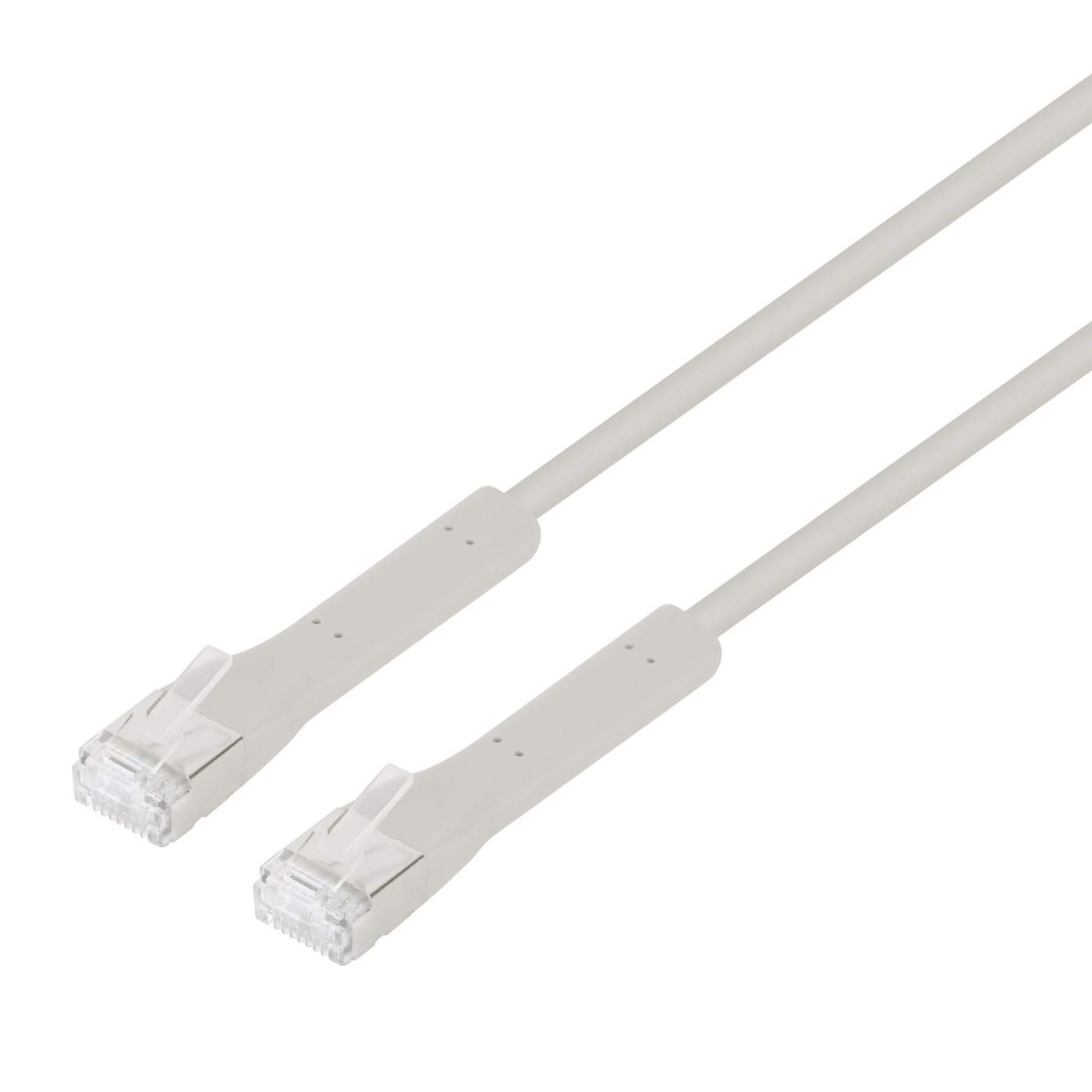

Cat6a Ethernet Cable - F/FTP, 10G, 500 MHz LAN patch cord, ultra-thin and with highly flexible boot, great for tight-space installations
Establish your high-performance network connections with this Cat6a Network Patch Cable from Intellinet Network Solutions. It supports up to 10 Gbps data transmissions with frequencies up to 500 MHz and all PoE applications up to IEEE802.3bt / PoE++ / 4PPoE / Ultra PoE.
Strong, yet slim, space-saving design
This stranded cable offers all the benefits of a standard Cat6a network cable, but with a diameter that's considerably smaller. In dense cable installations, the cable creates a tidier and more-organized look, and its thinner size helps promote better air circulation to equipment in a network cabinet.
Excellent shielding for best signal quality and low noise
This stranded cable is ideal for high-performance network applications up to 10GBase-T. Its multi-layer F/FTP design features an overall aluminum foil shield around the entire set of pairs, with each individual pair also wrapped in foil. This results in superior data transfer by preventing interference, such as near-end crosstalk (NEXT), when cables run parallel to each other.
Pure copper cable with gold-plated contacts for perfect conductivity
As opposed to other cables that are manufactured with copper-clad aluminum (CCA) or even copper-clad steel (CCS), this cable contains 100% pure bare copper for perfect conductivity, making it ideal for use in PoE applications. Gold plating on the contacts makes them corrosion-resistant in every environment.
Low Smoke Zero Halogen (LSZH/LS0H) jacket
The cable jacket does not contain any halogen, which significantly reduces the release of toxic gases and vapors, should combustion ever occur. LSZH is frequently part of health and safety regulations applying to poorly aired spaces where it protects people and equipment from corrosive gasses.
Ultra-Flexible Boot Design
The cable plugs are equipped with an extra-long boot that is extremely flexible and bendable for the best strain relief in cable runs around corners and in tight spaces.
Specs
| Weight & dimensions |
| Width |
12 mm |
| Depth |
1000 mm |
| Height |
15 mm |
| Outer diameter |
4 mm |
| Weight |
29 g |
| Packaging data |
| Package weight |
31 g |
| Package type |
Bag |
| Operational conditions |
| Operating temperature (T-T) |
-10 - 60 °C |
| Storage temperature (T-T) |
-40 - 70 °C |
| Operating relative humidity (H-H) |
10 - 90% |
| Features |
| Cable length |
1 m |
| Cable standard |
Cat6a |
| Cable shielding |
F/FTP (FFTP) |
| Connector 1 |
RJ-45 |
| Connector 2 |
RJ-45 |
| Product colour |
Grey |
| Connector 1 gender |
Male |
| Connector 2 gender |
Male |
| Connector 1 form factor |
Straight |
| Connector 2 form factor |
Straight |
| Connector contacts plating |
Gold |
| Connector shielding |
Yes |
| Connector shield material |
Aluminium |
| Jacket material |
Low smoke zero halogen (LSZH) |
| Cable shape |
Round |
| Conductor type |
Stranded |
| Conductor material |
Copper |
| Cabling technology |
10GBase-T |
| Ethernet interface type |
10 Gigabit Ethernet |
| Networking standards |
IEEE 802.3an, IEEE 802.3bt |
| AWG wire size |
32 |
| Data transfer rate |
10000 Mbit/s |
| Frequency |
500 MHz |
| Power over Ethernet (PoE) |
Yes |
| Power over Ethernet (PoE) type supported |
PoE++ (4PPoE) |
| Certification |
| Compliance certificates |
CE, REACH, RoHS, UL |
| Packaging content |
| Quantity per pack |
1 pc(s) |
Features
Intellinet Network Flexiboot Slim Patch Cable, Cat6A, 1m, Grey, Copper, F/FTP, LSOH / LSZH, RJ45, Class EA with 10G and 500 MHz, Ultra-thin format for more flexibility and simplified cable management in dense installations, Lifetime Warranty. Cable length: 1 m, Cable standard: Cat6a, Cable shielding: F/FTP (FFTP), Connector 1: RJ-45, Connector 2: RJ-45, Connector contacts plating: Gold, Data transfer rate: 10000 Mbit/s, Product colour: Grey
Product Description
Cat6a Ethernet Cable - F/FTP, 10G, 500 MHz LAN patch cord, ultra-thin and with highly flexible boot, great for tight-space installations
Establish your high-performance network connections with this Cat6a Network Patch Cable from Intellinet Network Solutions. It supports up to 10 Gbps data transmissions with frequencies up to 500 MHz and all PoE applications up to IEEE802.3bt / PoE++ / 4PPoE / Ultra PoE.
Strong, yet slim, space-saving design
This stranded cable offers all the benefits of a standard Cat6a network cable, but with a diameter that's considerably smaller. In dense cable installations, the cable creates a tidier and more-organized look, and its thinner size helps promote better air circulation to equipment in a network cabinet.
Excellent shielding for best signal quality and low noise
This stranded cable is ideal for high-performance network applications up to 10GBase-T. Its multi-layer F/FTP design features an overall aluminum foil shield around the entire set of pairs, with each individual pair also wrapped in foil. This results in superior data transfer by preventing interference, such as near-end crosstalk (NEXT), when cables run parallel to each other.
Pure copper cable with gold-plated contacts for perfect conductivity
As opposed to other cables that are manufactured with copper-clad aluminum (CCA) or even copper-clad steel (CCS), this cable contains 100% pure bare copper for perfect conductivity, making it ideal for use in PoE applications. Gold plating on the contacts makes them corrosion-resistant in every environment.
Low Smoke Zero Halogen (LSZH/LS0H) jacket
The cable jacket does not contain any halogen, which significantly reduces the release of toxic gases and vapors, should combustion ever occur. LSZH is frequently part of health and safety regulations applying to poorly aired spaces where it protects people and equipment from corrosive gasses.
Ultra-Flexible Boot Design
The cable plugs are equipped with an extra-long boot that is extremely flexible and bendable for the best strain relief in cable runs around corners and in tight spaces.
