Stock Status: 1x unit in stock
Reduce costs by using existing Cat5 cable to provide both power and data.

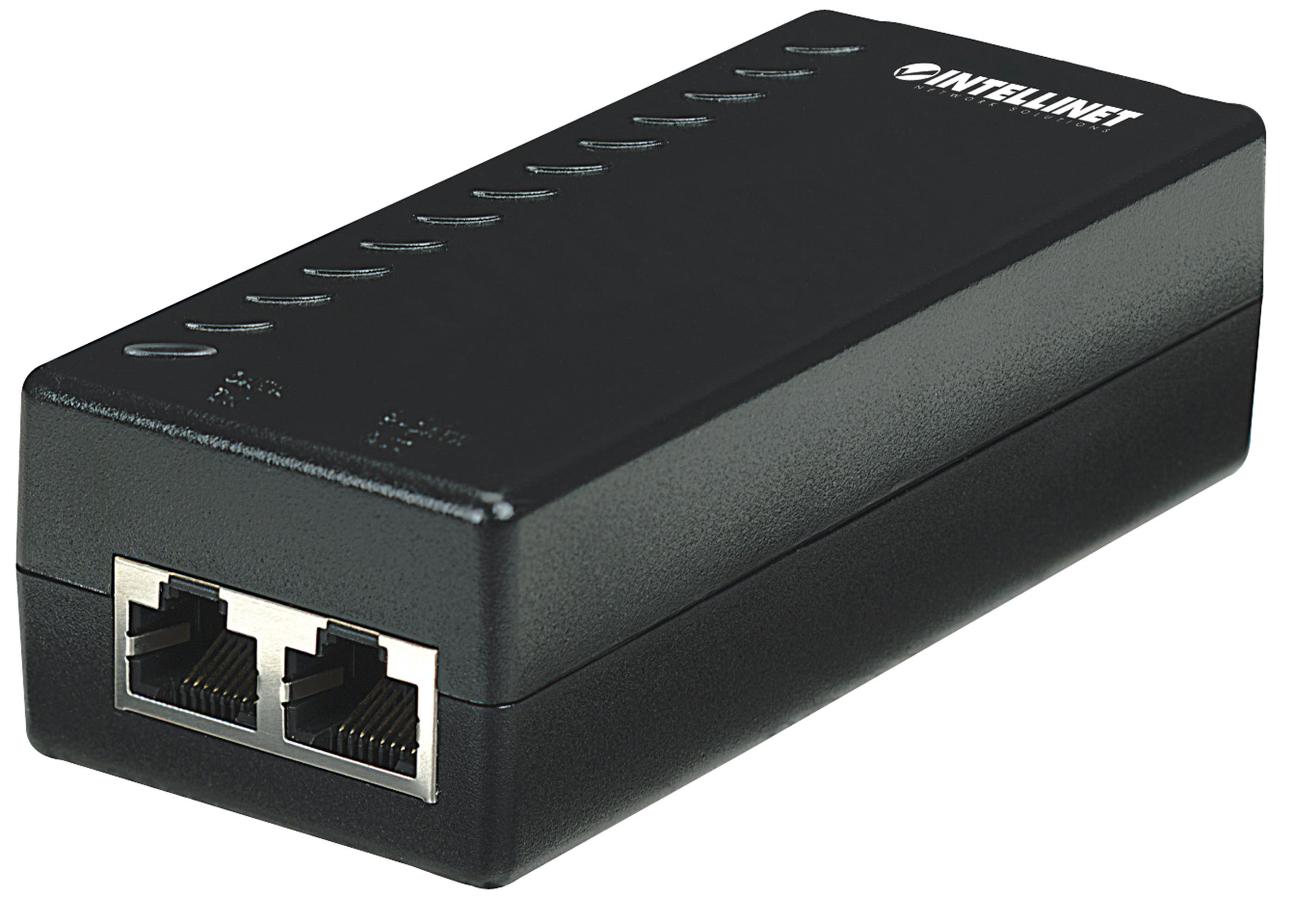

The INTELLINET NETWORK SOLUTIONS Power over Ethernet Injector allows you to connect your IEEE 802.3af-compliant products to a non-PoE LAN switch port. The injector can be used to connect a wireless access point, IP phone, network camera or any IEEE 802.3af powered device (PD) to a switch.
Reduce Wiring Costs
No need to run AC power lines for your wireless access point, network camera or IP phone. Simply connect the PoE Injector to the LAN switch port, and use the existing Cat5 cabling to deliver DC power as well as transfer data.
Preserve Existing Investments
Does your existing LAN switch not support the new IEEE 802.3af PoE standard? Well, don't let that stop you from realising the benefits of delivering DC power over the existing Cat5 Ethernet cabling. Use the Model 503389 PoE Injector until you are able to upgrade your LAN switch to a model that supports the IEEE 802.3af PoE standard.
Protect Your Equipment
Now that you are running DC power to your networked equipment through the Cat5 cabling, you need to be sure that the products are protected from power problems. The PoE Injector was designed to protect equipment from short circuits (short GRND), current overloads (over 450 mA) and high voltages (voltage exceeding 52 V).
Specs
| Ports & interfaces |
| Ethernet LAN (RJ-45) ports |
2 |
| Networking |
| Ethernet interface type |
Fast Ethernet |
| Ethernet LAN data rates |
10,100 Mbit/s |
| Power over Ethernet (PoE) |
Yes |
| Networking standards |
IEEE 802.3, IEEE 802.3af, IEEE 802.3u |
| Cable types supported |
Cat5 |
| Weight & dimensions |
| Width |
50 mm |
| Depth |
120 mm |
| Height |
35 mm |
| Weight |
510 g |
| Power |
| Power over Ethernet (PoE) voltage |
48 V |
| Input voltage |
100 - 240 V |
| Input frequency |
50/60 Hz |
| Power consumption (max) |
19 W |
| Operational conditions |
| Operating temperature (T-T) |
0 - 60 °C |
| Operating relative humidity (H-H) |
10 - 90% |
| Storage temperature (T-T) |
-20 - 85 °C |
| Packaging content |
| Number of products included |
1 pc(s) |
| AC adapter included |
Yes |
| Manual |
Yes |
| Features |
| Power protection features |
Over voltage, Overload, Short circuit |
| Certification |
| Certification |
FCC Class B, Part 15, CE 89/336/EEC |
Features
Intellinet Power over Ethernet (PoE) Injector, 1 Port, 48 V DC, IEEE 802.3af Compliant (UK Power Cord). Ethernet interface type: Fast Ethernet, Ethernet LAN data rates: 10,100 Mbit/s, Networking standards: IEEE 802.3, IEEE 802.3af, IEEE 802.3u. Power protection features: Over voltage, Overload, Short circuit. Power over Ethernet (PoE) voltage: 48 V, Input voltage: 100 - 240 V, Input frequency: 50/60 Hz. Certification: FCC Class B, Part 15, CE 89/336/EEC. Width: 50 mm, Depth: 120 mm, Height: 35 mm
Product Description
Reduce costs by using existing Cat5 cable to provide both power and data.
The INTELLINET NETWORK SOLUTIONS Power over Ethernet Injector allows you to connect your IEEE 802.3af-compliant products to a non-PoE LAN switch port. The injector can be used to connect a wireless access point, IP phone, network camera or any IEEE 802.3af powered device (PD) to a switch.
Reduce Wiring Costs
No need to run AC power lines for your wireless access point, network camera or IP phone. Simply connect the PoE Injector to the LAN switch port, and use the existing Cat5 cabling to deliver DC power as well as transfer data.
Preserve Existing Investments
Does your existing LAN switch not support the new IEEE 802.3af PoE standard? Well, don't let that stop you from realising the benefits of delivering DC power over the existing Cat5 Ethernet cabling. Use the Model 503389 PoE Injector until you are able to upgrade your LAN switch to a model that supports the IEEE 802.3af PoE standard.
Protect Your Equipment
Now that you are running DC power to your networked equipment through the Cat5 cabling, you need to be sure that the products are protected from power problems. The PoE Injector was designed to protect equipment from short circuits (short GRND), current overloads (over 450 mA) and high voltages (voltage exceeding 52 V).
