The HPE FlexFabric 5710 Switch Series are purpose built top-of-rack data center switches that address the growth of Web, cloud and dense virtualized environments that require high performance 1/10GbE server connectivity, direct attached IP storage networking and GbE out-of-band server management. The HPE 5710 is a family of fixed high-performance and low-latency 1/10GbE top-of-rack data center switches designed for small to mid-size data center rack server connectivity. The HPE FlexFabric 5710 Switch Series provides choices that fit your budget and IT environment by offering different port density and speeds (1/10G) SFP+ or 10BASE-T with 40 and 100GbE high speed uplinks options. Although affordability priced, the HPE FlexFabric 5710 Switch Series offers a comprehensive set of data center features including full support for Layer 2, Layer 3, IPv4 and IPv6 networking protocols at no additional cost for these advanced features.
What's new
- Delivers up to 1,440 Gbps switching capacity for the most demanding applications.
- Low latency, under 1.5 µs 10GbE latency, provides improved throughput and fewer lost packets.
- Provides choices that fit your budget and IT environment by offering different port density and speeds (1/10G) SFP+ or 10BASE-T with 40 and 100GbE high speed uplinks options.
- Affordably priced, with full support for Layer 2, Layer 3, IPv4 and IPv6 networking protocols at no additional cost for these advanced features.
Features
Accelerate Application Performance
- HPE FlexFabric 5710 Switch Series are high density, low-latency switches, the perfect solution for bandwidth-intensive workloads.
- Two-tier network design delivers outstanding performance while protecting and extending existing Hewlett Packard Enterprise or 3rd party core network investments.
- Delivers up to 1,440 Gbps switching capacity for the most demanding applications.
- Low latency, under 1.5 µs 10GbE latency, provides improved throughput and fewer lost packets.
Simplify Administration and Support
- The HPE FlexFabric 5710 Switch addresses small to mid-size organizations needing fixed high-performance and low-latency 1/10GbE top-of-rack data center switches for server connectivity
- The HPE FlexFabric 5710 Switch Series includes the HPE Intelligent Resilient Framework which reduces administrative touchpoints by making multiple physical switches appear as a single virtual switch from a management perspective.
Reduce Cost and Simplify Operations While Accelerating Performance
- HPE FlexFabric 5710 Switch Series reduces lock-in and having to replace the hardware. Unlike competitive products based on proprietary technology and closed designs, the HPE FlexFabric 5710 Switch Series top-of-rack products are based on industry standards and an open architecture.
- Removes hidden software expenses; the all-inclusive HPE FlexFabric Switch license includes a complete set of advanced features.
- High-performance IP-attached switching allows the reduction of equipment and operations expense and complexity and delivers fast connectivity for HPE 3PAR, HPE Nimble, HPE SimpliVity or third-party storage arrays.
Hewlett Packard Enterprise Servers and Networking are Better Together
- HPE FlexFabric 5710 Switch Series helps accelerate performance, simplify operations and contain costs.
- HPE ProLiant Servers, server networking options, HPE FlexFabric top-of-rack switches, transceivers and cables are designed and tested to work better, together.
- Ability to migrate your compute, storage and networking infrastructure to support the most business critical applications - with confidence.
Specs
| Ports & interfaces |
| Basic switching RJ-45 Ethernet ports quantity |
24 |
| Basic switching RJ-45 Ethernet ports type |
10G Ethernet (100/1000/10000) |
| Networking |
| Networking standards |
IEEE 802.1D,IEEE 802.1Qau,IEEE 802.1Qaz,IEEE 802.1Qbb,IEEE 802.1ab,IEEE 802.1ag,IEEE 802.1s,IEEE 802.1w,IEEE 802.3ah |
| 10G support |
Y |
| Flow control support |
Y |
| Link aggregation |
Y |
| Spanning tree protocol |
Y |
| VLAN support |
Y |
| Number of VLANs |
4094 |
| Power |
| Power supply included |
Y |
| Redundant power supply (RPS) support |
Y |
| AC input voltage |
100 - 240 V |
| AC input frequency |
50/60 Hz |
| Power consumption (max) |
450 W |
| Operational conditions |
| Operating temperature (T-T) |
0 - 45 °C |
| Operating relative humidity (H-H) |
10 - 90% |
| Heat dissipation |
457 BTU/h |
| Weight & dimensions |
| Width |
440 mm |
| Depth |
460 mm |
| Height |
44 mm |
| Weight |
8.55 kg |
| Security |
| DHCP features |
DHCP client,DHCP server |
| Access Control List (ACL) |
Y |
| IGMP snooping |
Y |
| Authentication type |
IEEE 802.1x,RADIUS |
| Data transmission |
| MAC address table |
208000 entries |
| Switching capacity |
960 Gbit/s |
| Throughput |
714 Mpps |
| Latency (10 Gbps) |
1.5 µs |
| Jumbo frames support |
Y |
| Packet buffer memory |
12 MB |
| Management features |
| Switch type |
Managed |
| Switch layer |
L3 |
| Quality of Service (QoS) support |
Y |
| Protocols |
| Routing protocols |
BGP, IP, MPLS, OSPF, RIP, VRRP |
| IPv4 FIB entries |
16000 |
| IPv6 FIB entries |
8000 |
| Power over Ethernet (PoE) |
| Power over Ethernet (PoE) |
N |
| Design |
| Rack mounting |
Y |
| Stackable |
Y |
| Form factor |
1U |
| Product colour |
Black |
| Performance |
| Virtual stacking (units) |
10 |
| Memory type |
SDRAM |
| Internal memory |
4096 MB |
| Flash memory |
1024 MB |
Features

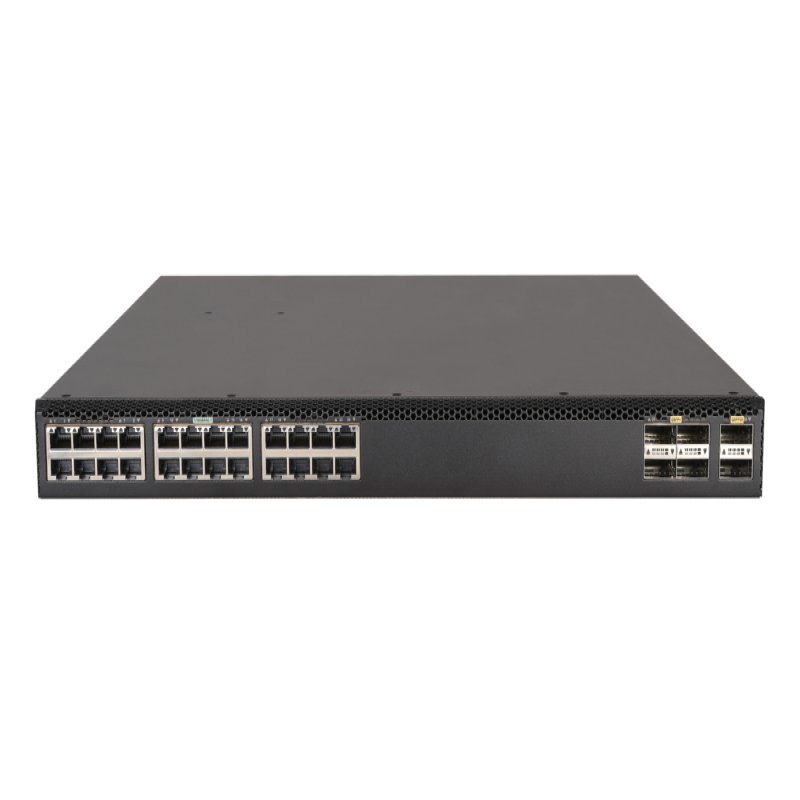

Hewlett Packard Enterprise FlexFabric 5710 24XGT 6QSFP+/2QSFP28. Switch type: Managed, Switch layer: L3. Basic switching RJ-45 Ethernet ports type: 10G Ethernet (100/1000/10000), Basic switching RJ-45 Ethernet ports quantity: 24. MAC address table: 208000 entries, Switching capacity: 960 Gbit/s. Networking standards: IEEE 802.1D,IEEE 802.1Qau,IEEE 802.1Qaz,IEEE 802.1Qbb,IEEE 802.1ab,IEEE 802.1ag,IEEE 802.1s,IEEE.... Rack mounting, Form factor: 1U
Product Description
The HPE FlexFabric 5710 Switch Series are purpose built top-of-rack data center switches that address the growth of Web, cloud and dense virtualized environments that require high performance 1/10GbE server connectivity, direct attached IP storage networking and GbE out-of-band server management. The HPE 5710 is a family of fixed high-performance and low-latency 1/10GbE top-of-rack data center switches designed for small to mid-size data center rack server connectivity. The HPE FlexFabric 5710 Switch Series provides choices that fit your budget and IT environment by offering different port density and speeds (1/10G) SFP+ or 10BASE-T with 40 and 100GbE high speed uplinks options. Although affordability priced, the HPE FlexFabric 5710 Switch Series offers a comprehensive set of data center features including full support for Layer 2, Layer 3, IPv4 and IPv6 networking protocols at no additional cost for these advanced features.
What's new
- Delivers up to 1,440 Gbps switching capacity for the most demanding applications.
- Low latency, under 1.5 µs 10GbE latency, provides improved throughput and fewer lost packets.
- Provides choices that fit your budget and IT environment by offering different port density and speeds (1/10G) SFP+ or 10BASE-T with 40 and 100GbE high speed uplinks options.
- Affordably priced, with full support for Layer 2, Layer 3, IPv4 and IPv6 networking protocols at no additional cost for these advanced features.
Features
Accelerate Application Performance
- HPE FlexFabric 5710 Switch Series are high density, low-latency switches, the perfect solution for bandwidth-intensive workloads.
- Two-tier network design delivers outstanding performance while protecting and extending existing Hewlett Packard Enterprise or 3rd party core network investments.
- Delivers up to 1,440 Gbps switching capacity for the most demanding applications.
- Low latency, under 1.5 µs 10GbE latency, provides improved throughput and fewer lost packets.
Simplify Administration and Support
- The HPE FlexFabric 5710 Switch addresses small to mid-size organizations needing fixed high-performance and low-latency 1/10GbE top-of-rack data center switches for server connectivity
- The HPE FlexFabric 5710 Switch Series includes the HPE Intelligent Resilient Framework which reduces administrative touchpoints by making multiple physical switches appear as a single virtual switch from a management perspective.
Reduce Cost and Simplify Operations While Accelerating Performance
- HPE FlexFabric 5710 Switch Series reduces lock-in and having to replace the hardware. Unlike competitive products based on proprietary technology and closed designs, the HPE FlexFabric 5710 Switch Series top-of-rack products are based on industry standards and an open architecture.
- Removes hidden software expenses; the all-inclusive HPE FlexFabric Switch license includes a complete set of advanced features.
- High-performance IP-attached switching allows the reduction of equipment and operations expense and complexity and delivers fast connectivity for HPE 3PAR, HPE Nimble, HPE SimpliVity or third-party storage arrays.
Hewlett Packard Enterprise Servers and Networking are Better Together
- HPE FlexFabric 5710 Switch Series helps accelerate performance, simplify operations and contain costs.
- HPE ProLiant Servers, server networking options, HPE FlexFabric top-of-rack switches, transceivers and cables are designed and tested to work better, together.
- Ability to migrate your compute, storage and networking infrastructure to support the most business critical applications - with confidence.
