Stock Status: 1x unit in stock

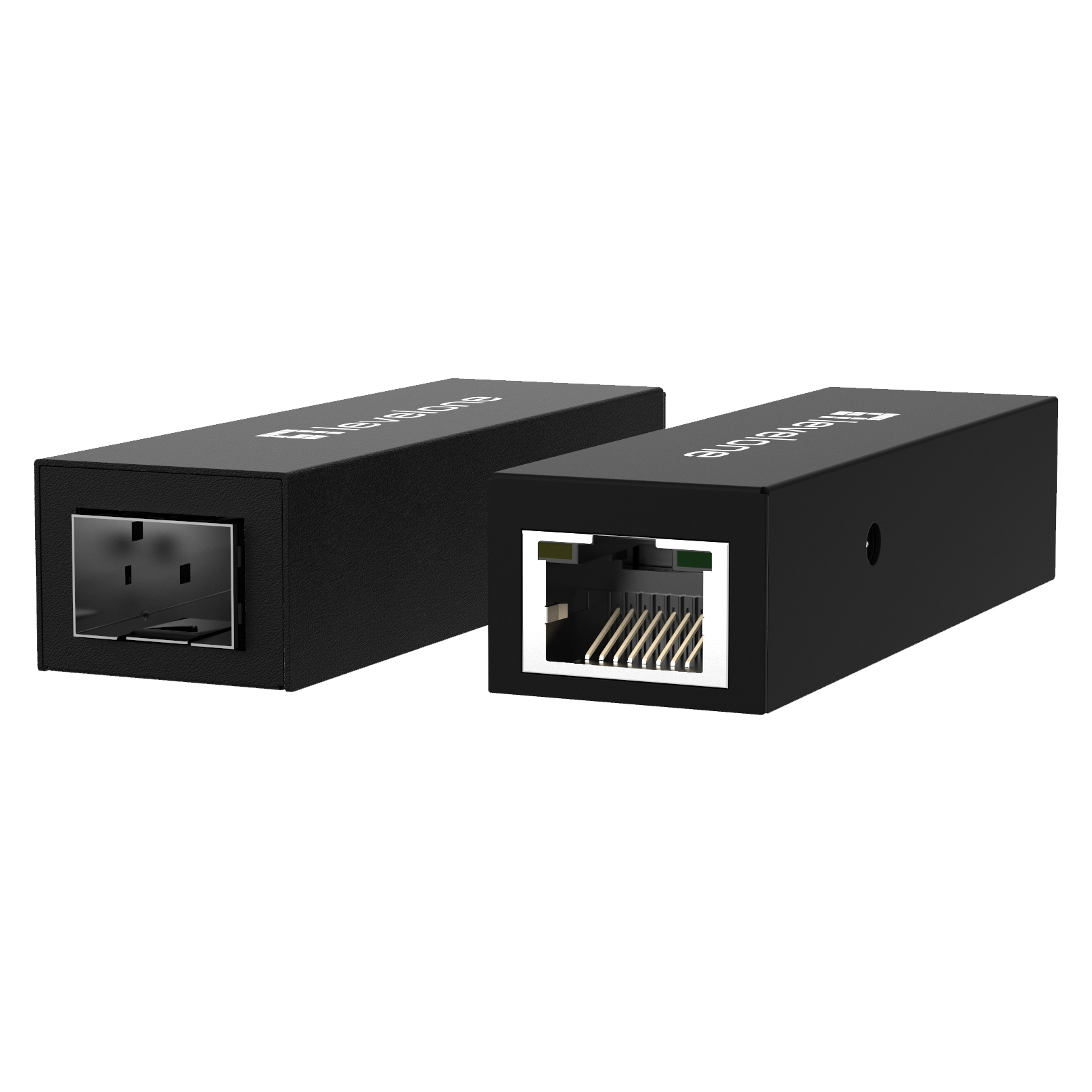

The GVT-1001 is the ultra-slim plug-and play 10/100/1000Base-T to 1000Base-X media converter which is designed for applications where compact size, light weight and low power are critical requirements. It can be easily installed in tight places or conveniently slip into any pocket or laptop carrying case for easy portability with its ultra-slim size and super light weight.
This Ultra-Slim RJ45 to SFP gigabit media converter can be USB powered by USB 1.0 or 2.0 port, which is ideal for connections to fiber in areas where a spare power outlet may not be available. When plugged into a computer's USB port, the media converter shuts down automatically when you turn off the computer, which saves energy. So this ultra-slim media converter is an ideal solution for fiber-to-the-laptop where it needs Gigabit connectivity but local power isn’t available. For applications not utilizing USB power, this converter is also available with a USB power adapter, providing compatibility with electrical outlet types. This media converter supports Jumbo frame 10 Kbytes and watchdog function, it can automatically reboot if frozen.
Specs
| Networking |
| Maximum data transfer rate |
1000 Mbit/s |
| Networking standards |
IEEE 802.3, IEEE 802.3z |
| Ethernet LAN data rates |
1000 Mbit/s |
| Copper ethernet cabling technology |
10BASE-T, 100BASE-T, 1000BASE-T |
| Jumbo frames support |
Yes |
| Jumbo frames |
10000 |
| Auto MDI/MDI-X |
Yes |
| Auto-negotiation |
Yes |
| Weight & dimensions |
| Width |
23.3 mm |
| Depth |
79 mm |
| Height |
18.5 mm |
| Weight |
56 g |
| Ports & interfaces |
| Fiber optic connector |
SFP |
| Connectivity technology |
Wired |
| Ethernet LAN (RJ-45) ports |
1 |
| Fiber ports quantity |
1 |
| Power |
| Input voltage |
5 V |
| Input current |
1 A |
| Power consumption (typical) |
1.2 W |
| Operational conditions |
| Operating temperature (T-T) |
-20 - 70 °C |
| Operating relative humidity (H-H) |
5 - 95% |
| Packaging content |
| AC adapter included |
Yes |
| Quick installation guide |
Yes |
| Performance |
| Mean time between failures (MTBF) |
100000 h |
| Logistics data |
| Country of origin |
China |
| Master (outer) cases per pallet (air) |
15 pc(s) |
| Pallet gross length |
80 cm |
| Pallet gross width |
120 cm |
| Pallet height (air) |
154.4 cm |
| Harmonized System (HS) code |
85176990 |
| Master (outer) case width |
475 mm |
| Master (outer) case length |
560 mm |
| Master (outer) case height |
275 mm |
| Master (outer) case gross weight |
17 kg |
| Products per master (outer) case |
100 pc(s) |
| Packaging data |
| Package width |
135 mm |
| Package depth |
105 mm |
| Package height |
45 mm |
| Package weight |
160 g |
| Package type |
Box |
| Certification |
| Compliance certificates |
CE, UKCA, WEEE |
| Features |
| Internal |
No |
| Plug and Play |
Yes |
| LED indicators |
Activity, Link |
| Product colour |
Yellow |
| Sustainability |
| Sustainability compliance |
Yes |
Features
LevelOne Ultra-Slim RJ45 to SFP Gigabit Media Converter. Maximum data transfer rate: 1000 Mbit/s, Networking standards: IEEE 802.3, IEEE 802.3z, Ethernet LAN data rates: 1000 Mbit/s. Mean time between failures (MTBF): 100000 h. LED indicators: Activity, Link, Product colour: Yellow. Fiber optic connector: SFP, Connectivity technology: Wired. Input voltage: 5 V, Input current: 1 A, Power consumption (typical): 1.2 W
Product Description
The GVT-1001 is the ultra-slim plug-and play 10/100/1000Base-T to 1000Base-X media converter which is designed for applications where compact size, light weight and low power are critical requirements. It can be easily installed in tight places or conveniently slip into any pocket or laptop carrying case for easy portability with its ultra-slim size and super light weight.
This Ultra-Slim RJ45 to SFP gigabit media converter can be USB powered by USB 1.0 or 2.0 port, which is ideal for connections to fiber in areas where a spare power outlet may not be available. When plugged into a computer's USB port, the media converter shuts down automatically when you turn off the computer, which saves energy. So this ultra-slim media converter is an ideal solution for fiber-to-the-laptop where it needs Gigabit connectivity but local power isn’t available. For applications not utilizing USB power, this converter is also available with a USB power adapter, providing compatibility with electrical outlet types. This media converter supports Jumbo frame 10 Kbytes and watchdog function, it can automatically reboot if frozen.
