Stock Status: 1x unit in stock

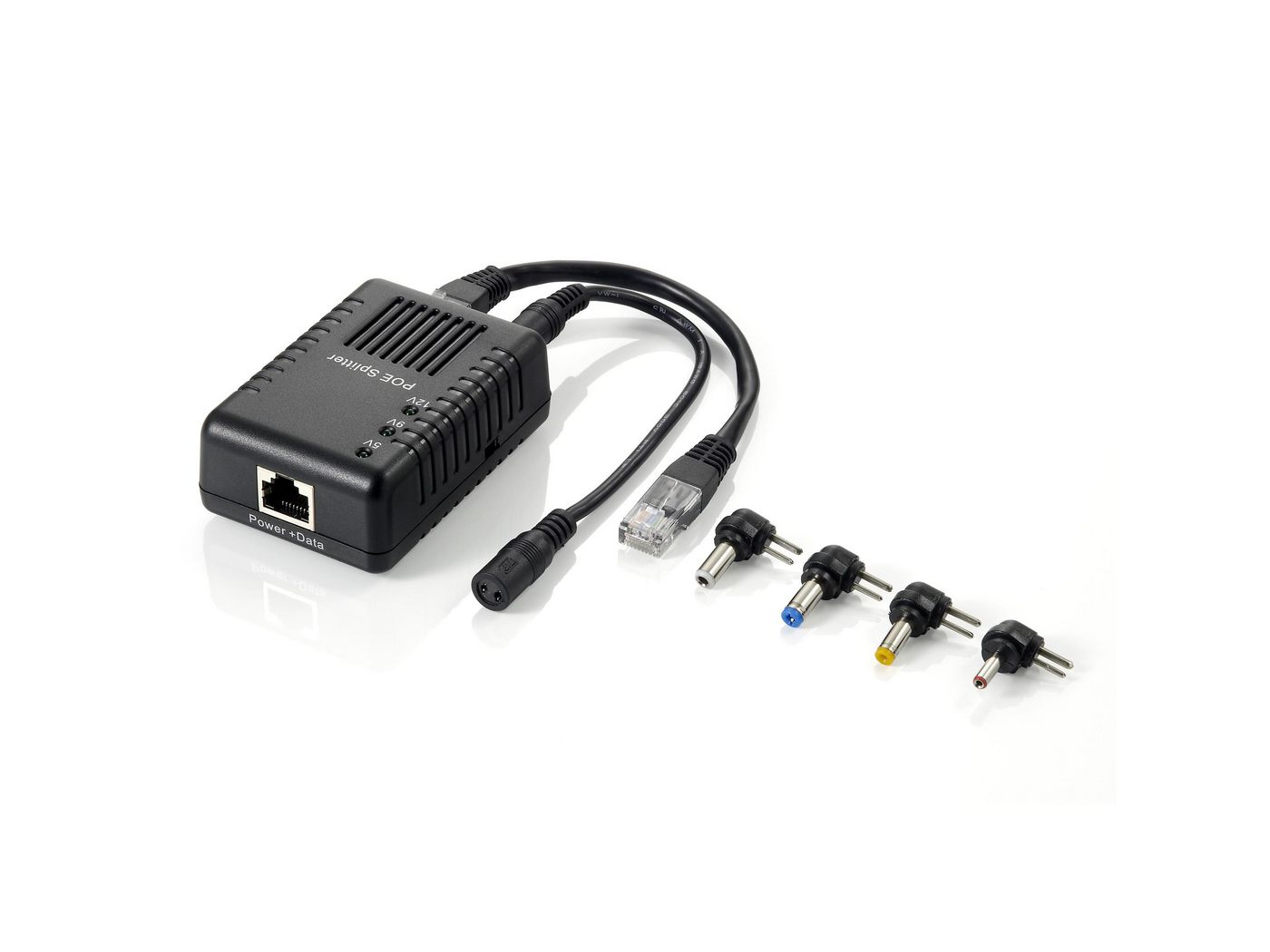

The LevelOne POS-1002 PoE Splitter splits a networked PoE signal into a separate power and Fast Ethernet data sources. This device allows administrators to run Fast Ethernet speed PoE cables over long distances, and then split the PoE signal into a separate data and power sources in order to run non-PoE devices. This active PoE splitter is available in the following output voltages (5V, 9V or 12V).
Save installation and equipment cost when installing access points, IP cameras and other devices in remote locations, with no need to install network devices near a power outlet. This compact splitter safeguards valuable network equipment with short circuit protection and quickly creates an integrated PoE and non-PoE network at Fast Ethernet speeds.
- IEEE 802.3af compliant
- Converts non-PoE devices with Power over Ethernet support
- DIP switch for 5V, 9V, and 12V adjustable output power
- Delivers power and data via a single Ethernet cable
- Eliminates the need for a bulky power adapter and powerline
- Compatible with Wireless Router, AP, Network Camera, Print Server, Converter
- Light weight and compact size
- Provides interchangeable tips
Specs
| Ports & interfaces |
| Ethernet LAN (RJ-45) ports |
2 |
| RJ-45 input ports |
1 |
| RJ-45 output ports |
1 |
| DC-out jack |
Yes |
| Detachable power connectors |
Yes |
| Supplementary power connectors |
4 |
| Power |
| DC output voltage |
5V, 9V, 12V |
| Output current (5V) |
2 A |
| Output current (9V) |
1.1 A |
| Output current (12V) |
1 A |
| Weight & dimensions |
| Width |
55 mm |
| Depth |
80 mm |
| Height |
31 mm |
| Weight |
76 g |
| Operational conditions |
| Operating temperature (T-T) |
0 - 45 °C |
| Operating relative humidity (H-H) |
5 - 95% |
| Packaging content |
| Quick installation guide |
Yes |
| Quantity per pack |
1 pc(s) |
| Logistics data |
| Country of origin |
China |
| Certificates |
| Certification |
CE, FCC, EN 60950:2006, RoHS |
| Features |
| Networking standards |
IEEE 802.3, IEEE 802.3af, IEEE 802.3u |
| Cabling technology |
10/100Base-TX |
| Power over Ethernet (PoE) |
Yes |
| Product colour |
Black |
| LED indicators |
Power |
| Packaging data |
| Package width |
125 mm |
| Package depth |
190 mm |
| Package height |
55 mm |
| Package weight |
260 g |
Features
LevelOne Fast Ethernet PoE Splitter, 802.3af PoE, 5-12V DC Output. Networking standards: IEEE 802.3, IEEE 802.3af, IEEE 802.3u, Cabling technology: 10/100Base-TX, Product colour: Black. Certification: CE, FCC, EN 60950:2006, RoHS. Width: 55 mm, Depth: 80 mm, Height: 31 mm. Quantity per pack: 1 pc(s). Package width: 125 mm, Package depth: 190 mm, Package height: 55 mm
Product Description
The LevelOne POS-1002 PoE Splitter splits a networked PoE signal into a separate power and Fast Ethernet data sources. This device allows administrators to run Fast Ethernet speed PoE cables over long distances, and then split the PoE signal into a separate data and power sources in order to run non-PoE devices. This active PoE splitter is available in the following output voltages (5V, 9V or 12V).
Save installation and equipment cost when installing access points, IP cameras and other devices in remote locations, with no need to install network devices near a power outlet. This compact splitter safeguards valuable network equipment with short circuit protection and quickly creates an integrated PoE and non-PoE network at Fast Ethernet speeds.
- IEEE 802.3af compliant
- Converts non-PoE devices with Power over Ethernet support
- DIP switch for 5V, 9V, and 12V adjustable output power
- Delivers power and data via a single Ethernet cable
- Eliminates the need for a bulky power adapter and powerline
- Compatible with Wireless Router, AP, Network Camera, Print Server, Converter
- Light weight and compact size
- Provides interchangeable tips
