Stock Status: 1x unit in stock

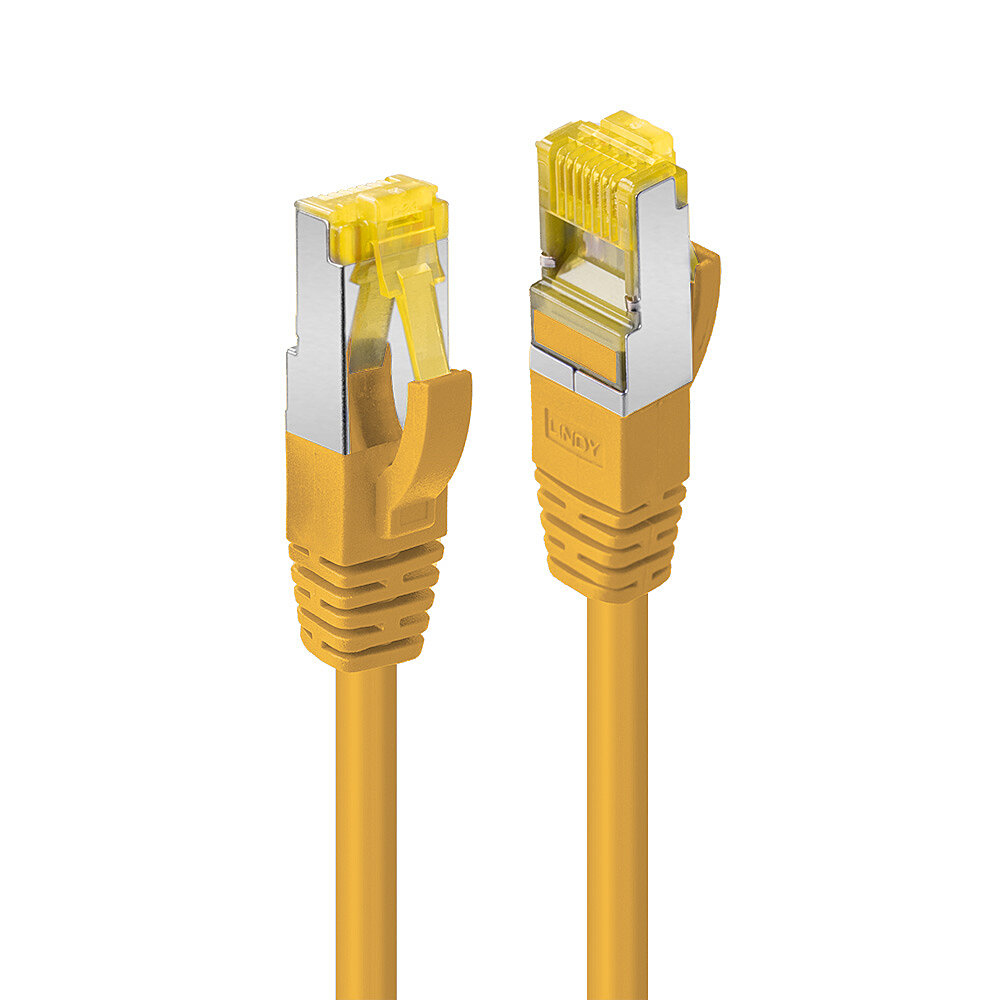

Cat.7 S/FTP network cable with support for bandwidth up to 600MHz and features a snagless design with gold plated contacts for ethernet standards up to 10 GBase-T.
The Cat.7 cable material for operating frequencies up to 600MHz with total braided shielding and foil single-wire shielding (S/FTP) was developed for use in data centres, server rooms, rack mounting of network and control cabinets etc. for networks up to 10GBaseT. These cables are manufactured and tested according to the ISO/IEC 11801 specification. The cables are packaged individually in a polybag.
The gold-plated contacts ensure reliable, corrosion-free connections over extensive periods of time. A robust snagless strain relief design prevents damage to the connector latch during installation and removal.
This product uses Cat.7 cable material. The Cat.7 standard originally defined the GG45 connectors, which were intended as a further development of RJ45, but were not able to establish themselves on the market. In the meantime, the RJ45 connector developed to easily meet the requirements of Cat.7, but has never been defined for Cat.7. Therefore the imprint on the cable reads as follows: "Cat.6A S/FTP patch cords with 600MHz raw cable".
Available lengths: 0.3m, 0.5m, 1m, 1.5m, 2m, 3m, 5m, 7.5m, 10m, 15m, 20m, 30m.
Available colours: Black, Blue, Grey, Red, White. Yellow, Green
Specs
| Weight & dimensions |
| Width |
11.6 mm |
| Depth |
22.8 mm |
| Height |
8.3 mm |
| Outer diameter |
6.5 mm |
| Packaging data |
| Package type |
Polybag |
| Operational conditions |
| Operating temperature (T-T) |
-10 - 60 °C |
| Storage temperature (T-T) |
-20 - 75 °C |
| Features |
| Cable length |
0.3 m |
| Cable standard |
Cat6a |
| Cable shielding |
S/FTP (S-STP) |
| Connector 1 |
RJ-45 |
| Connector 2 |
RJ-45 |
| Product colour |
Yellow |
| Connector 1 gender |
Male |
| Connector 2 gender |
Male |
| Connector 1 form factor |
Straight |
| Connector 2 form factor |
Straight |
| Connector contacts plating |
Nickel/Gold |
| Connector shield material |
Copper alloy |
| Jacket material |
Low smoke zero halogen (LSZH) |
| Cable shape |
Round |
| Conductor material |
Copper |
| Connector housing material |
Polycarbonate (PC) |
| Cabling technology |
10GBase-T |
| AWG wire size |
26 |
| Frequency |
600 MHz |
| Bend radius (min) |
7.8 cm |
| Snagless cable boot |
Yes |
| Plug and Play |
Yes |
| Logistics data |
| Quantity per box |
1 pc(s) |
| Warranty period |
10 year(s) |
| Technical details |
| Sustainability compliance |
Yes |
| Certification |
| Compliance certificates |
REACH, RoHS |
| Certification |
RoHS, REACH, UL, California Proposition 65 |
| Packaging content |
| Quantity per pack |
1 pc(s) |
Features
Lindy 47660. Cable length: 0.3 m, Cable standard: Cat6a, Cable shielding: S/FTP (S-STP), Connector 1: RJ-45, Connector 2: RJ-45, Connector contacts plating: Nickel/Gold, Product colour: Yellow
Product Description
Cat.7 S/FTP network cable with support for bandwidth up to 600MHz and features a snagless design with gold plated contacts for ethernet standards up to 10 GBase-T.
The Cat.7 cable material for operating frequencies up to 600MHz with total braided shielding and foil single-wire shielding (S/FTP) was developed for use in data centres, server rooms, rack mounting of network and control cabinets etc. for networks up to 10GBaseT. These cables are manufactured and tested according to the ISO/IEC 11801 specification. The cables are packaged individually in a polybag.
The gold-plated contacts ensure reliable, corrosion-free connections over extensive periods of time. A robust snagless strain relief design prevents damage to the connector latch during installation and removal.
This product uses Cat.7 cable material. The Cat.7 standard originally defined the GG45 connectors, which were intended as a further development of RJ45, but were not able to establish themselves on the market. In the meantime, the RJ45 connector developed to easily meet the requirements of Cat.7, but has never been defined for Cat.7. Therefore the imprint on the cable reads as follows: "Cat.6A S/FTP patch cords with 600MHz raw cable".
Available lengths: 0.3m, 0.5m, 1m, 1.5m, 2m, 3m, 5m, 7.5m, 10m, 15m, 20m, 30m.
Available colours: Black, Blue, Grey, Red, White. Yellow, Green
