Stock Status: 1x unit in stock

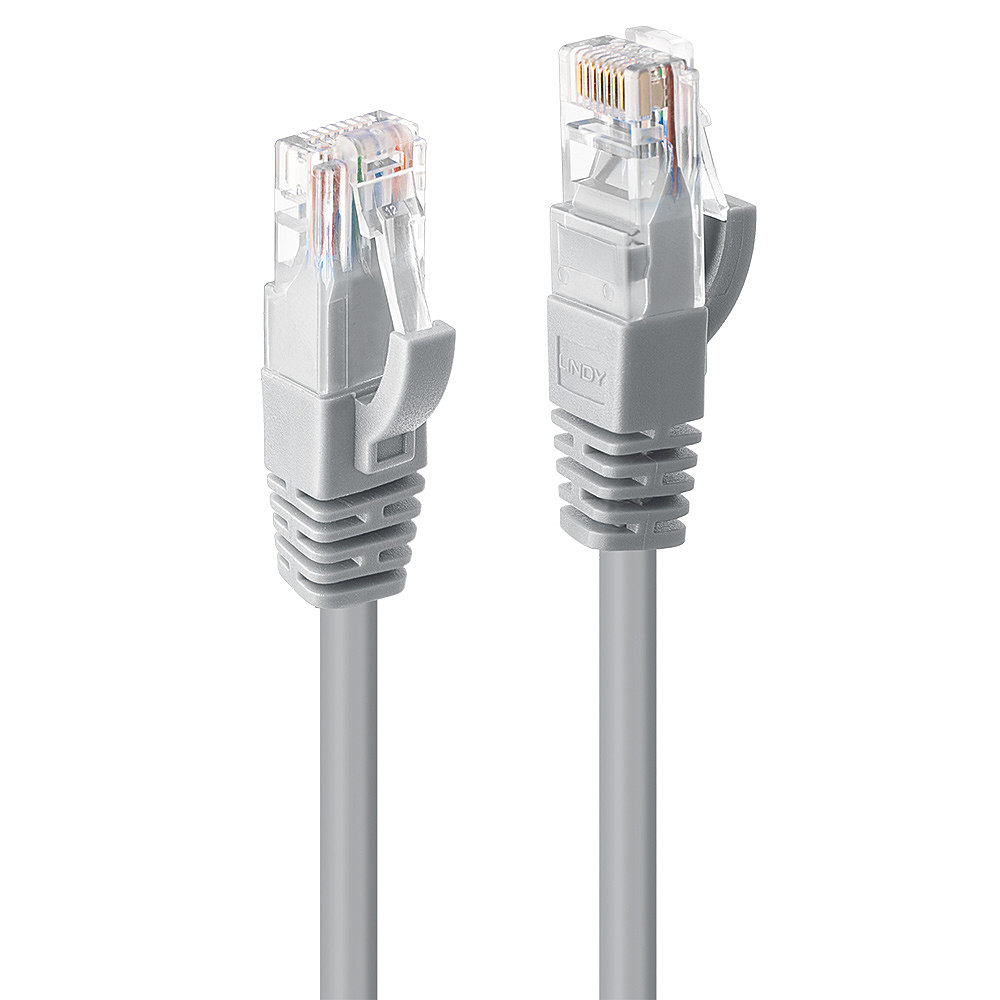

Twisted Pair Patch Cable with RJ45 connectors
Cat.6 U/UTP, PVC
Integrated snagless connector for latch protection
Gold plated pins for better conductivity and elimination of signal loss
10 year warranty
Cat.6 U/UTP PVC network cable with support for bandwidth up to 250MHz and features a snagless design with gold plated contacts for ethernet standards up to 1GBase-T.
Cat.6 cable for operating frequencies up to 250MHz. The unshielded version (U/UTP) can be used for Gigabit Ethernet thanks to the special design of the electrophysical parameters (NExT, FExT, etc.) despite the lack of shielding. These cables are manufactured and tested according to the ISO/IEC 11801 specification. The cables are packaged individually in a polybag.
The gold-plated contacts ensure reliable, corrosion-free connections over extensive periods of time. A robust snagless strain relief design prevents damage to the connector latch during installation and removal.
Available lengths: 0.3m, 0.5m, 1m, 2m, 3m, 5m, 7.5m, 10m, 15m, 20m, 30m.
Available colours: Blue, Red, Green, Yellow, Black, White, Orange, Purple, Grey.
Specs
| Weight & dimensions |
| Outer diameter |
5.8 mm |
| Connector 1 dimensions (WxDxH) |
11.6 x 22.8 x 8.3 mm |
| Connector 2 dimensions (WxDxH) |
11.6 x 22.8 x 8.3 mm |
| Packaging data |
| Quantity per pack |
1 pc(s) |
| Package type |
Polybag |
| Operational conditions |
| Operating temperature (T-T) |
-10 - 60 °C |
| Storage temperature (T-T) |
-20 - 75 °C |
| Features |
| Cable length |
3 m |
| Cable standard |
Cat6 |
| Cable shielding |
U/UTP (UTP) |
| Connector 1 |
RJ-45 |
| Connector 2 |
RJ-45 |
| Product colour |
Grey |
| Connector 1 gender |
Male |
| Connector 2 gender |
Male |
| Connector contacts plating |
Gold |
| Connector shield material |
Copper alloy |
| Jacket material |
Polyvinyl chloride (PVC) |
| Cable shape |
Round |
| Conductor material |
Copper |
| Connector housing material |
Polycarbonate (PC) |
| Cabling technology |
10/100/1000Base-T(X) |
| Ethernet interface type |
Gigabit Ethernet |
| AWG wire size |
24 |
| Data transfer rate |
1000 Mbit/s |
| Frequency |
250 MHz |
| Bend radius (min) |
6.9 cm |
| Snagless cable boot |
Y |
| Nominal attenuation |
32.8dB/100m @250MHz |
| Certification |
RoHS, REACH, UL, California Proposition 65 |
| Logistics data |
| Harmonized System (HS) code |
84733080 |
Features
Lindy 3m Cat.6 U/UTP Cable, Grey. Cable length: 3 m, Cable standard: Cat6, Cable shielding: U/UTP (UTP), Connector 1: RJ-45, Connector 2: RJ-45, Connector contacts plating: Gold, Data transfer rate: 1000 Mbit/s
Product Description
Twisted Pair Patch Cable with RJ45 connectors
Cat.6 U/UTP, PVC
Integrated snagless connector for latch protection
Gold plated pins for better conductivity and elimination of signal loss
10 year warranty
Cat.6 U/UTP PVC network cable with support for bandwidth up to 250MHz and features a snagless design with gold plated contacts for ethernet standards up to 1GBase-T.
Cat.6 cable for operating frequencies up to 250MHz. The unshielded version (U/UTP) can be used for Gigabit Ethernet thanks to the special design of the electrophysical parameters (NExT, FExT, etc.) despite the lack of shielding. These cables are manufactured and tested according to the ISO/IEC 11801 specification. The cables are packaged individually in a polybag.
The gold-plated contacts ensure reliable, corrosion-free connections over extensive periods of time. A robust snagless strain relief design prevents damage to the connector latch during installation and removal.
Available lengths: 0.3m, 0.5m, 1m, 2m, 3m, 5m, 7.5m, 10m, 15m, 20m, 30m.
Available colours: Blue, Red, Green, Yellow, Black, White, Orange, Purple, Grey.
