Stock Status: 1x unit in stock

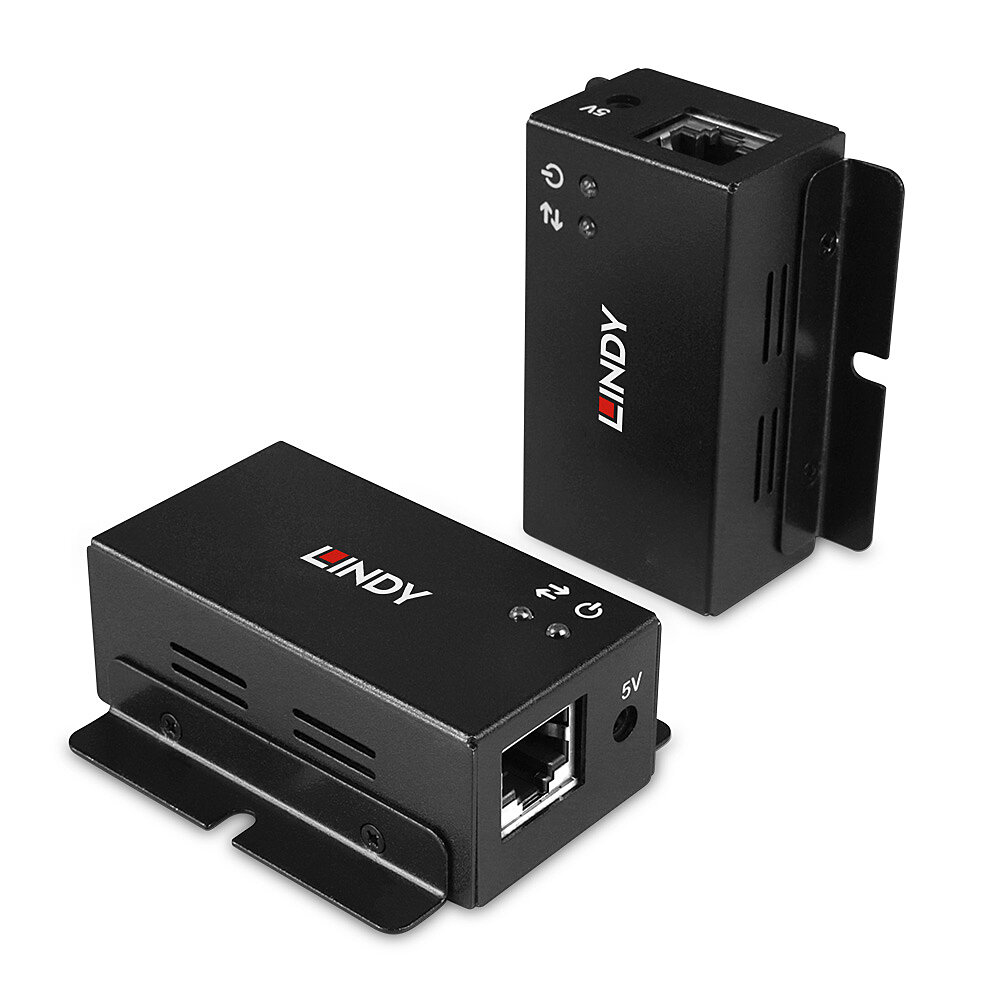

This Lindy USB 2.0 Cat.6 Extender can be used to extend the distance between two USB peripheral devices and the host computer by up to 50m. A standard, low cost Cat.6 network cable (not included) is used to bridge the connection between the transmitter and the receiver unit. For best performance and compatibility, we recommend the use of solid core patched cables.
The Extender features bidirectional Power over Cable (PoC) functionality, which provides additional flexibility. This allows power to be supplied alongside data through Cat.6 network cable in a point-to-point connection between the transmitter and receiver, meaning only a single power supply is required at the transmitter or receiver unit.
With robust metal housing and integrated mounting brackets this Extender is the ideal solution for industrial environments.
Specs
| Weight & dimensions |
| Transmitter width |
6.02 cm |
| Transmitter depth |
6.7 cm |
| Transmitter height |
2.37 cm |
| Transmitter weight |
195 g |
| Receiver width |
6.02 cm |
| Receiver depth |
6.7 cm |
| Receiver height |
2.6 cm |
| Receiver weight |
195 g |
| Operational conditions |
| Operating temperature (T-T) |
0 - 50 °C |
| Storage temperature (T-T) |
-40 - 125 °C |
| Operating relative humidity (H-H) |
0 - 90% |
| Storage relative humidity (H-H) |
0 - 90% |
| Ports & interfaces |
| Ethernet LAN (RJ-45) ports |
2 |
| RJ-45 ports quantity (transmitter) |
1 |
| RJ-45 ports quantity (receiver) |
1 |
| USB 2.0 ports quantity |
3 |
| DC-in jack |
Yes |
| RJ-45 input ports |
1 |
| RJ-45 output ports |
1 |
| Power |
| Input current |
2 A |
| Packaging content |
| Cables included |
USB |
| Manual |
Yes |
| AC adapter included |
Yes |
| Design |
| Product colour |
Black |
| Quantity per pack |
1 pc(s) |
| Performance |
| Type |
Network transmitter & receiver |
| Maximum transfer distance |
50 m |
| Data transfer rate |
480 Mbit/s |
| Cable types supported |
Cat5e, Cat6 |
| Chipset |
NS1021 |
| Plug and Play |
Yes |
| Technical details |
| Compliance certificates |
CE, Federal Communications Commission (FCC), REACH, RoHS |
| Sustainability compliance |
Yes |
Features
Lindy 50m 2 Port USB 2.0 Cat. 6 Extender. Type: Network transmitter & receiver, Maximum transfer distance: 50 m, Data transfer rate: 480 Mbit/s. Product colour: Black, Quantity per pack: 1 pc(s). Input current: 2 A. Transmitter width: 6.02 cm, Transmitter depth: 6.7 cm, Transmitter height: 2.37 cm. Cables included: USB
Product Description
This Lindy USB 2.0 Cat.6 Extender can be used to extend the distance between two USB peripheral devices and the host computer by up to 50m. A standard, low cost Cat.6 network cable (not included) is used to bridge the connection between the transmitter and the receiver unit. For best performance and compatibility, we recommend the use of solid core patched cables.
The Extender features bidirectional Power over Cable (PoC) functionality, which provides additional flexibility. This allows power to be supplied alongside data through Cat.6 network cable in a point-to-point connection between the transmitter and receiver, meaning only a single power supply is required at the transmitter or receiver unit.
With robust metal housing and integrated mounting brackets this Extender is the ideal solution for industrial environments.
