Stock Status: 1x unit in stock
The Lindy 100m USB 2.0 Type C Cat.6 Extender can be used to extend the distance between a USB peripheral device and a Type C equipped host computer by up to 100m.

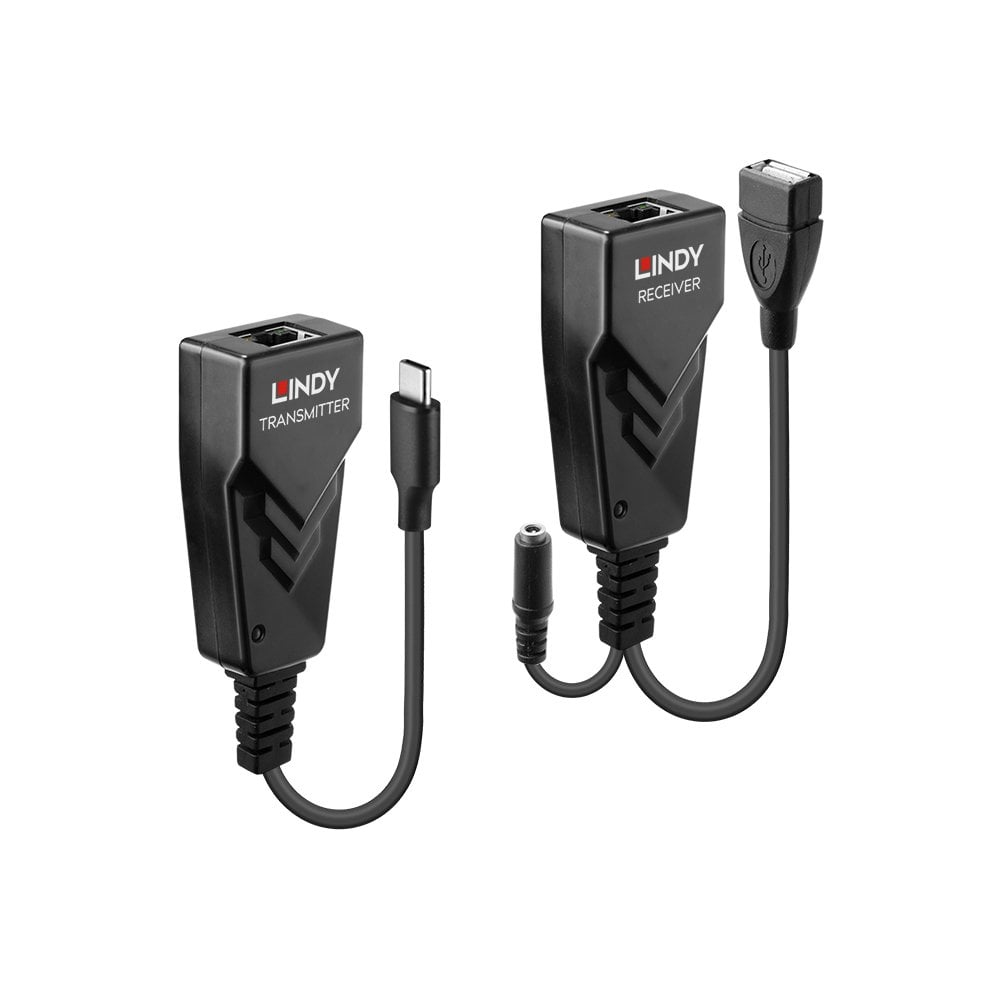

It consists of a transmitter unit which connects to the computer via USB Type C and a receiver unit that connects to a USB Type A device. Standard Cat.5e/6 network cable (not included) is then used to bridge the connection between the two units. For best performance and compatibility, we recommend the use of solid core patched cables.
For added convenience this USB 2.0 Extender is supplied with a power supply, which can be connected should additional power be required.
*Please note: This extender might not support USB devices that require high bandwidths such as FullHD webcams.
Specs
| Weight & dimensions |
| Width |
69 mm |
| Depth |
36 mm |
| Height |
22 mm |
| Weight |
50 g |
| Packaging data |
| Package type |
Box |
| Package width |
200 mm |
| Package depth |
200 mm |
| Package height |
48 mm |
| Package volume |
380 cm³ |
| Operational conditions |
| Operating temperature (T-T) |
0 - 40 °C |
| Storage temperature (T-T) |
-10 - 60 °C |
| Operating relative humidity (H-H) |
0 - 80% |
| Storage relative humidity (H-H) |
0 - 80% |
| Ports & interfaces |
| Ethernet LAN (RJ-45) ports |
2 |
| RJ-45 ports quantity (transmitter) |
1 |
| RJ-45 ports quantity (receiver) |
1 |
| USB Type-C ports quantity (transmitter) |
1 |
| USB Type-C ports quantity (receiver) |
1 |
| DC-in jack |
Yes |
| Packaging content |
| Manual |
Yes |
| AC adapter included |
Yes |
| Design |
| Product colour |
Black |
| Housing material |
Plastic |
| Quantity per pack |
1 pc(s) |
| Performance |
| Type |
Network transmitter & receiver |
| Maximum transfer distance |
100 m |
| Data transfer rate |
480 Mbit/s |
| Cable types supported |
Cat5e, Cat6 |
| Chipset |
CH317Q, CH9317, RTL8211E |
| Certification |
| Compliance certificates |
CE, Federal Communications Commission (FCC), REACH, RoHS |
| Sustainability |
| Sustainability compliance |
Yes |
Features
Lindy 100m USB 2.0 Type C Cat.6 Extender. Type: Network transmitter & receiver, Maximum transfer distance: 100 m, Data transfer rate: 480 Mbit/s. Product colour: Black, Housing material: Plastic, Quantity per pack: 1 pc(s). Width: 69 mm, Depth: 36 mm, Height: 22 mm. Package type: Box, Package width: 200 mm, Package depth: 200 mm. Compliance certificates: CE, Federal Communications Commission (FCC), REACH, RoHS
Product Description
The Lindy 100m USB 2.0 Type C Cat.6 Extender can be used to extend the distance between a USB peripheral device and a Type C equipped host computer by up to 100m.
It consists of a transmitter unit which connects to the computer via USB Type C and a receiver unit that connects to a USB Type A device. Standard Cat.5e/6 network cable (not included) is then used to bridge the connection between the two units. For best performance and compatibility, we recommend the use of solid core patched cables.
For added convenience this USB 2.0 Extender is supplied with a power supply, which can be connected should additional power be required.
*Please note: This extender might not support USB devices that require high bandwidths such as FullHD webcams.
