Stock Status: 1x unit in stock

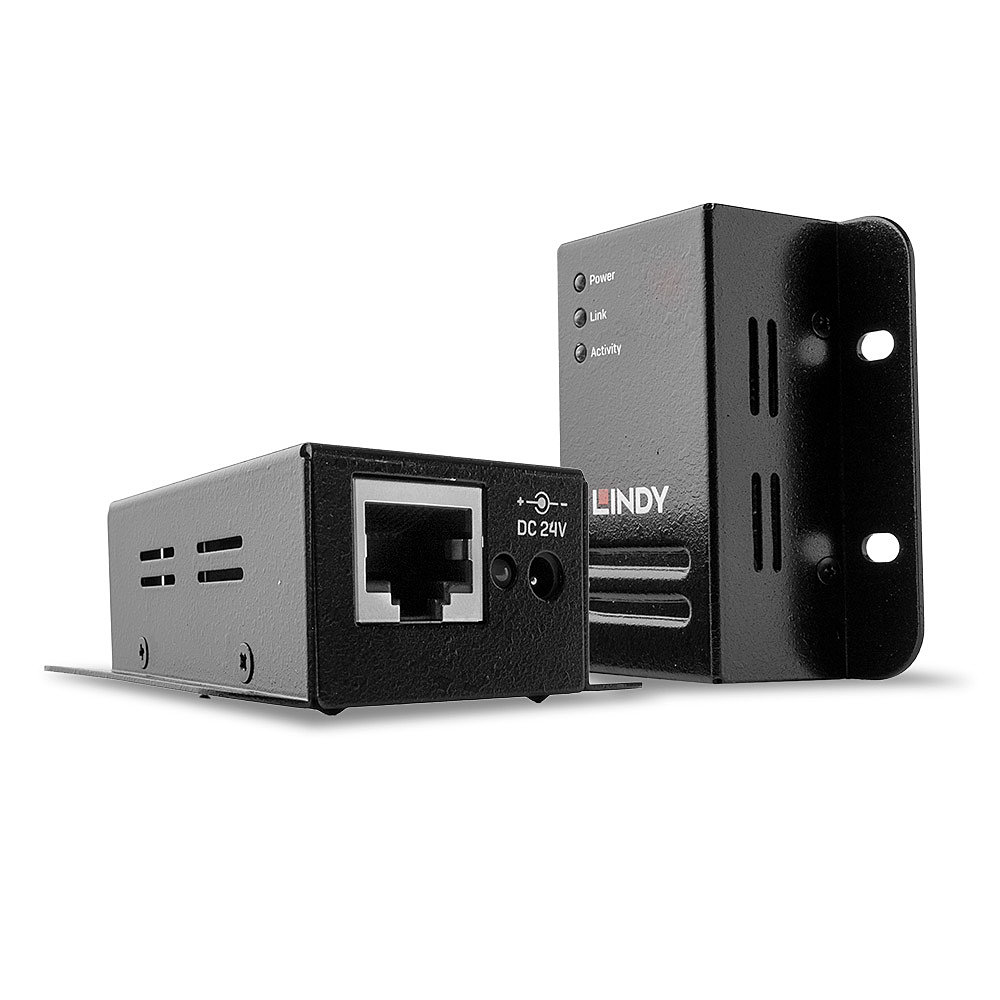

The Lindy USB 2.0 Cat.6 Extender can be used to extend the distance between a USB peripheral device and the host computer by up to 50m.
A standard, low cost Cat.5e/6 network cable (not included) is used to bridge the connection between the transmitter and the receiver unit. For best performance and compatibility, we recommend the use of solid core patched cables.
The Extender features Power over Cable, which requires a single power supply only to be connected to the transmitter unit. This handy feature allows the receiver unit and connected devices to be located more freely as no power supply is required.
With robust metal housing and integrated mounting brackets this Extender is the ideal solution for industrial environments.
Specs
| Weight & dimensions |
| Weight |
300 g |
| Transmitter width |
6 cm |
| Transmitter depth |
6.7 cm |
| Transmitter height |
2.3 cm |
| Receiver width |
6 cm |
| Receiver depth |
6.7 cm |
| Receiver height |
2.3 cm |
| Packaging data |
| Package type |
Box |
| Package width |
185 mm |
| Package depth |
140 mm |
| Package height |
55 mm |
| Package weight |
400 g |
| Operational conditions |
| Operating temperature (T-T) |
0 - 70 °C |
| Storage temperature (T-T) |
-20 - 80 °C |
| Operating relative humidity (H-H) |
0 - 90% |
| Storage relative humidity (H-H) |
0 - 90% |
| Ports & interfaces |
| RJ-45 ports quantity (transmitter) |
1 |
| RJ-45 ports quantity (receiver) |
1 |
| USB 2.0 ports quantity |
2 |
| DC-in jack |
Yes |
| Power |
| Input current |
0.25 A |
| Output voltage |
24 V |
| Output current |
0.5 A |
| Power over Ethernet (PoE) |
Yes |
| Power note |
3.5/1.35mm DC |
| Included power plug types |
AU, EU, UK, US |
| Packaging content |
| Cables included |
USB Type-A to USB Type-B |
| Manual |
Yes |
| Design |
| Product colour |
Black |
| Housing material |
Metal |
| LED indicators |
Yes |
| Certification |
CE, UKCA, FCC, RoHS, REACH |
| Performance |
| Type |
Network transmitter & receiver |
| Maximum transfer distance |
50 m |
| Data transfer rate |
480 Mbit/s |
| Cable types supported |
Cat5, Cat5e, Cat6 |
| Chipset |
NS1021 |
| Plug and Play |
Yes |
| Logistics data |
| Harmonized System (HS) code |
85176990 |
Features
Lindy 50m USB 2.0 Cat.6 Extender. Type: Network transmitter & receiver, Maximum transfer distance: 50 m, Data transfer rate: 480 Mbit/s. Product colour: Black, Housing material: Metal, Certification: CE, UKCA, FCC, RoHS, REACH. Input current: 0.25 A, Output voltage: 24 V, Output current: 0.5 A. Weight: 300 g, Transmitter width: 6 cm, Transmitter depth: 6.7 cm. Cables included: USB Type-A to USB Type-B
Product Description
The Lindy USB 2.0 Cat.6 Extender can be used to extend the distance between a USB peripheral device and the host computer by up to 50m.
A standard, low cost Cat.5e/6 network cable (not included) is used to bridge the connection between the transmitter and the receiver unit. For best performance and compatibility, we recommend the use of solid core patched cables.
The Extender features Power over Cable, which requires a single power supply only to be connected to the transmitter unit. This handy feature allows the receiver unit and connected devices to be located more freely as no power supply is required.
With robust metal housing and integrated mounting brackets this Extender is the ideal solution for industrial environments.
