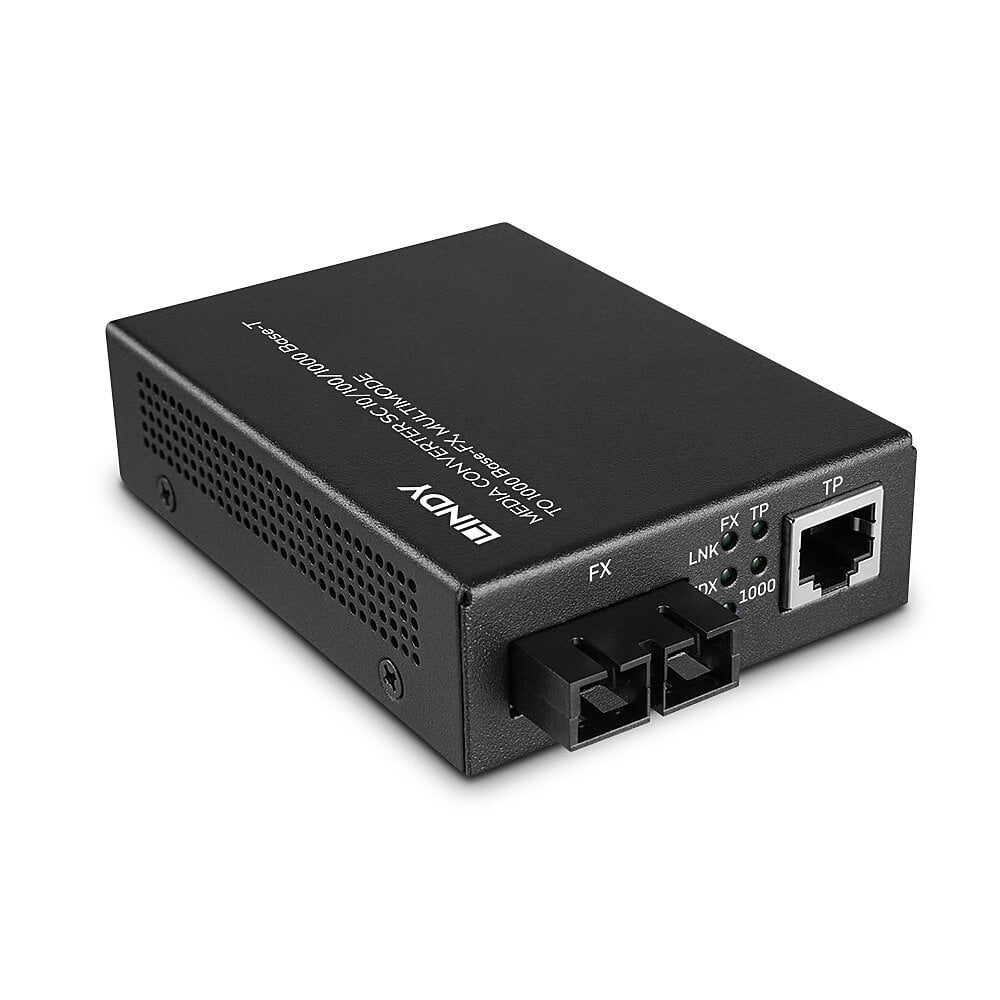

This Lindy Media Converter extends the connection between two network devices at distances up to 550m using multimode fibre optic cables. The installation is plug-and-play and the user only has to connect to the RJ45 port with a Cat.5e or above Ethernet cable and the fibre port with a SC Multimode 50/125 or 62.5/125 Duplex fibre optic cable. No configuration needed, easily integrated into any existing Ethernet network and supports Full/Half duplex mode and auto-negotiation on both ports.
The Media Converter can operate with 100 or 1000Mbps network speed, it also provides status LEDs to indicate data link, speed, Full/Half Duplex and link failure. Supports IEEE 802.3 standard and Jumbo frames up to 9K.
Specs
| Networking |
| Networking standards |
IEEE 802.3 |
| Ethernet LAN data rates |
10,100,1000 Mbit/s |
| Duplex system |
Full, Half |
| Weight & dimensions |
| Width |
95 mm |
| Depth |
70 mm |
| Height |
25 mm |
| Weight |
540 g |
| Ports & interfaces |
| Fiber optic connector |
SC |
| Connectivity technology |
Wired |
| Ethernet LAN (RJ-45) ports |
1 |
| Fiber ports quantity |
2 |
| Power |
| Output voltage |
5 V |
| Output current |
1 A |
| Operational conditions |
| Operating temperature (T-T) |
0 - 40 °C |
| Storage temperature (T-T) |
-10 - 70 °C |
| Operating relative humidity (H-H) |
5 - 95% |
| Performance |
| Maximum transfer distance |
550 m |
| Wavelength |
850 nm |
| Fiber mode structure |
Multi-mode |
| Fiber cable diameters supported (core/cladding) |
50/125,62.5/125 µm |
| Packaging data |
| Package width |
165 mm |
| Package depth |
155 mm |
| Package height |
45 mm |
| Package weight |
650 g |
| Certification |
| Certification |
CE, UKCA, FCC, RoHS, REACH & California Proposition 65 |
| Features |
| Internal |
No |
| LED indicators |
Yes |
| Product colour |
Black |
Features
Lindy 25119. Networking standards: IEEE 802.3, Ethernet LAN data rates: 10,100,1000 Mbit/s, Duplex system: Full, Half. Maximum transfer distance: 550 m, Wavelength: 850 nm, Fiber mode structure: Multi-mode. Product colour: Black. Fiber optic connector: SC, Connectivity technology: Wired. Output voltage: 5 V, Output current: 1 A
Product Description
This Lindy Media Converter extends the connection between two network devices at distances up to 550m using multimode fibre optic cables. The installation is plug-and-play and the user only has to connect to the RJ45 port with a Cat.5e or above Ethernet cable and the fibre port with a SC Multimode 50/125 or 62.5/125 Duplex fibre optic cable. No configuration needed, easily integrated into any existing Ethernet network and supports Full/Half duplex mode and auto-negotiation on both ports.
The Media Converter can operate with 100 or 1000Mbps network speed, it also provides status LEDs to indicate data link, speed, Full/Half Duplex and link failure. Supports IEEE 802.3 standard and Jumbo frames up to 9K.
