Stock Status: 1x unit in stock

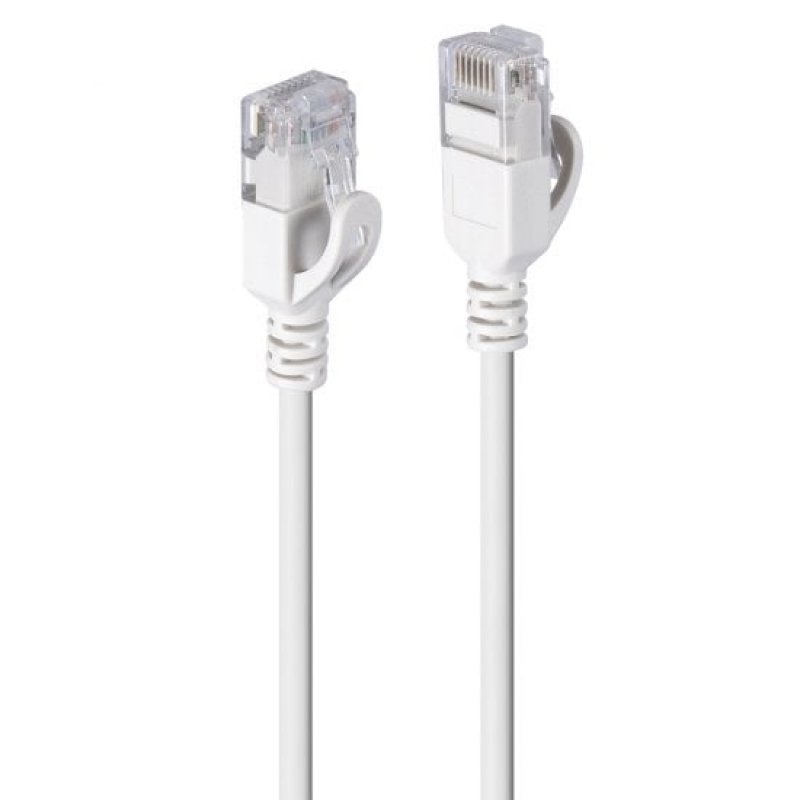

Cat.6A U/UTP Ultra slim network cable with support for bandwidth up to 500MHz and features a snagless design with gold plated contacts for ethernet standards up to 10GBase-T.
Cat 6A cable, for operating frequencies up to 500MHz, unshielded with single twisted pair (U/UTP). Designed as ultra slim cable for use in environments with restricted or limited installation space. These cables are manufactured and tested according to the ISO/IEC 11801 specification. The cables are packaged individually in a polybag.
The gold-plated contacts ensure reliable, corrosion-free connections over extensive periods of time. A robust snagless strain relief design prevents damage to the connector latch during installation and removal.
The very flexible and thin cable construction allows the cables to be installed in restricted or limited spaces such as server rooms or network hubs.
Available lengths: 0.3m, 1m, 1.5m, 2m, 3m, 5m.
Specs
| Weight & dimensions |
| Width |
11 mm |
| Depth |
28 mm |
| Height |
6 mm |
| Outer diameter |
3.6 mm |
| Packaging data |
| Package type |
Polybag |
| Operational conditions |
| Operating temperature (T-T) |
-40 - 60 °C |
| Storage temperature (T-T) |
-10 - 40 °C |
| Features |
| Cable length |
0.3 m |
| Cable standard |
Cat6a |
| Cable shielding |
U/UTP (UTP) |
| Connector 1 |
RJ-45 |
| Connector 2 |
RJ-45 |
| Product colour |
Grey |
| Connector 1 gender |
Male |
| Connector 2 gender |
Male |
| Connector 1 form factor |
Straight |
| Connector 2 form factor |
Straight |
| Connector contacts plating |
Nickel |
| Connector shielding |
Yes |
| Connector shield material |
Aluminium |
| Jacket material |
Polyvinyl chloride (PVC) |
| Conductor material |
Copper |
| AWG wire size |
28 |
| Frequency |
500 MHz |
| Bend radius (min) |
6 cm |
| Technical details |
| Compliance certificates |
REACH, RoHS |
| Sustainability compliance |
Yes |
Features
Lindy 0.3m Cat.6A U/UTP Ultra Slim Network Cable, Grey. Cable length: 0.3 m, Cable standard: Cat6a, Cable shielding: U/UTP (UTP), Connector 1: RJ-45, Connector 2: RJ-45, Connector contacts plating: Nickel, Product colour: Grey
Product Description
Cat.6A U/UTP Ultra slim network cable with support for bandwidth up to 500MHz and features a snagless design with gold plated contacts for ethernet standards up to 10GBase-T.
Cat 6A cable, for operating frequencies up to 500MHz, unshielded with single twisted pair (U/UTP). Designed as ultra slim cable for use in environments with restricted or limited installation space. These cables are manufactured and tested according to the ISO/IEC 11801 specification. The cables are packaged individually in a polybag.
The gold-plated contacts ensure reliable, corrosion-free connections over extensive periods of time. A robust snagless strain relief design prevents damage to the connector latch during installation and removal.
The very flexible and thin cable construction allows the cables to be installed in restricted or limited spaces such as server rooms or network hubs.
Available lengths: 0.3m, 1m, 1.5m, 2m, 3m, 5m.
