Enjoy the Power of Next-Gen Surveillance Switch
Enhance your surveillance environment with the DSS-200G, a smart and easily installed device that delivers greater control and flexibility. Discover the capabilities of this intelligent tool that automates processes and adds intelligence to your network.
Built for Surveillance,
with Gigabit Ethernet & PoE++
Designed to meet surveillance requirements for businesses of all sizes, with features like support for high-powered PTZ cameras, high PoE budgets, Auto Surveillance VLAN, and surge protection, these switches are ideal for IP surveillance setups.
Long Range PoE Delivery
Connect and power cameras up to 250 metres away without the need for additional PoE extenders.
Power Your Devices
Supports PoE/PoE+ to connect and power your PoE-cable network devices via Ethernet cables without the need for power adapters.
Reliable PoE Connections
Surge protection on all PoE ports protects the switch when feeding power to PoE-capable devices.
Rapid deployments with a single PoE cable.
The series supports PoE, and some provide higher power PoE++, delivering up to 90 watts on selected ports, enabling faster deployment of PoE devices such as IP cameras, VoIP phones, access points, terminals, speakers, lights, conferencing systems, displays, and more.
Reach further with a flick of a switch.
The built-in DIP switch allows easy configuration and quick adjustment of application settings without the need to access the web configuration. Quickly enable and disable functions such as QoS, Extend (connection by up to 250 metres), Port Isolation, PD-Alive and STP (Spanning Tree Protocol) in an instant.
Protects the network against power surges.
6kV surge protection on all PoE ports protects the network against voltage spikes with link aggregation, ERPS and STP support to make your network more robust and resilient.
Connect to more with PoE++
See your remaining power availability with the built-in PoE Power Budget LEDs for 25%, 50%, 75%, and 100% power usage at a glance. And utilise up to 518W, with 90W on 8 ports and 30W on 15 ports for DSS-200G-28MPP, so you can rapidly deploy more devices.
Layer 2 management features.
Comes with a complete line-up of L2 features, including port mirroring, Spanning Tree Protocol (STP), and Link Aggregation Control Protocol (LACP). Network maintenance features such as loopback detection and cable diagnostics.
Quality of Service and bandwidth control.
Bandwidth control allows network administrators to reserve bandwidth for important functions that require higher priority or more bandwidth.
Auto Surveillance VLAN consolidates data and surveillance video transmission through a single switch, sparing businesses the expense of dedicated hardware and facilities.
Voice VLAN enhances the VoIP service by automatically placing voice traffic from IP phones to a designated VLAN. With a prioritised and segmented VLAN, this feature guarantees quality and security of VoIP traffic.
Energy efficient
With built-in D-Link Green technology, this series saves power without sacrificing operational performance or functionality.
Time-Based PoE
Schedule the ports on the switch to provide PoE power to devices on specific days and during set hours of the week for energy savings
Sleep mode
Link status drastically reduces power consumption by automatically putting ports without a link into a sleep mode
Advanced chipset
The series incorporates a special chipset with advanced silicon technology for efficient use of energy
We're here to help.
Over 35 years in the networking industry
Innovative end-to-end solution experts for small businesses to large corporations around the world.
Talking to us is easy
Skilled local support in 16 countries. Our support teams are ready to help you.
Specs
| Ports & interfaces |
| Basic switching RJ-45 Ethernet ports quantity |
8 |
| Basic switching RJ-45 Ethernet ports type |
Gigabit Ethernet (10/100/1000) |
| Installed SFP modules quantity |
2 |
| Networking |
| Networking standards |
IEEE 802.3, IEEE 802.3ab, IEEE 802.3ad, IEEE 802.3af, IEEE 802.3at, IEEE 802.3az, IEEE 802.3bt, IEEE 802.3u, IEEE 802.3x |
| Port mirroring |
Yes |
| Full duplex |
Yes |
| Half duplex |
Yes |
| Flow control support |
Yes |
| Link aggregation |
Yes |
| Broadcast storm control |
Yes |
| Rate limiting |
Yes |
| Auto MDI/MDI-X |
Yes |
| Spanning tree protocol |
Yes |
| Head-of-line (HOL) blocking |
Yes |
| Ethernet LAN data rates |
1000 Mbit/s |
| Auto-negotiation |
Yes |
| VLAN support |
Yes |
| Virtual LAN features |
Voice VLAN |
| Number of VLANs |
4094 |
| Power |
| Power source |
AC |
| Power supply included |
Yes |
| AC input voltage |
100 - 240 V |
| AC input frequency |
50/60 Hz |
| Input current |
3 A |
| Input voltage |
100 - 240 V |
| Power consumption (max) |
267.5 W |
| Operational conditions |
| Operating temperature (T-T) |
-5 - 50 °C |
| Storage temperature (T-T) |
-40 - 70 °C |
| Operating relative humidity (H-H) |
0 - 95% |
| Storage relative humidity (H-H) |
0 - 95% |
| Heat dissipation |
87 BTU/h |
| Weight & dimensions |
| Width |
280 mm |
| Depth |
230 mm |
| Height |
44 mm |
| Weight |
2.05 kg |
| Security |
| IGMP snooping |
Yes |
| SSH/SSL support |
Yes |
| Password protection |
Yes |
| Queue scheduling algorithms |
Strict Priority Queue (SPQ), Weighted Round Robin (WRR) |
| Data transmission |
| MAC address table |
8000 entries |
| Switching capacity |
20 Gbit/s |
| Forwarding rate |
14.88 Mpps |
| Number of queues |
4 |
| Jumbo frames support |
Yes |
| Jumbo frames |
10240 |
| Packet buffer memory |
4.1 MB |
| Management features |
| Switch type |
Managed |
| Switch layer |
L2 |
| Quality of Service (QoS) support |
Yes |
| Web-based management |
Yes |
| Traffic classification |
Yes |
| MIB support |
• RFC768 UDP • RFC791 IP • RFC792 ICMP • RFC793 TCP • RFC826 ARP • RFC1213 MIB II • RFC1493 Bridage MIB • RFC1907 SNMPv2 MIB • RFC1215 MIB Traps Convention • RFC2233 Interface Group MIB • RFC2665 Ether-like MIB • RFC4363 IEEE 802.1p MIB • ZoneDefense MIB |
| Power over Ethernet (PoE) |
| Power over Ethernet (PoE) |
Yes |
| Power over Ethernet (PoE) ports quantity |
8 |
| Power over Ethernet (PoE) power per port |
90 W |
| Total Power over Ethernet (PoE) budget |
242 W |
| Design |
| Form factor |
1U |
| Product colour |
Grey |
| Reset button |
Yes |
| LED indicators |
Activity, Alarm, Link, Power, Speed |
| Number of fans |
1 fan(s) |
| Performance |
| Memory type |
DDR3-SDRAM |
| Internal memory |
128 MB |
| Flash memory |
32 MB |
| Noise level |
50.6 dB |
| Fanless |
No |
| Mean time between failures (MTBF) |
508112 h |
| Multicast features |
| Multicast support |
Yes |
| Multicast features |
Controllable multicast |
| Certification |
| Compliance certificates |
BSMI, CB, CE, Federal Communications Commission (FCC), Low Voltage Directive (LVD), cUL |
| Sustainability |
| Sustainability certificates |
UL ECOLOGO |
| Sustainability compliance |
Yes |
Features

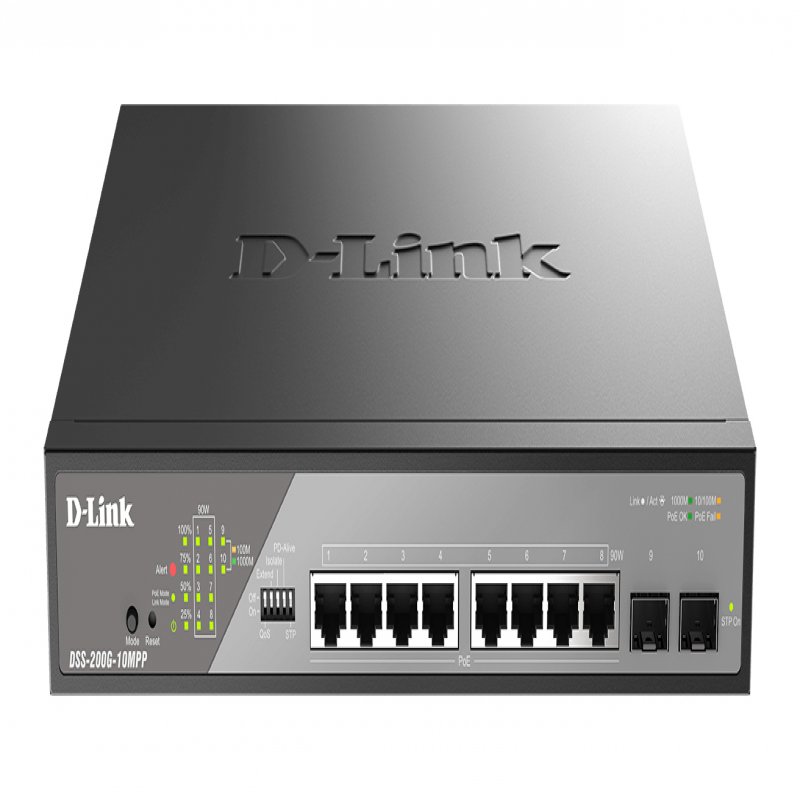

D-Link 10-Port Gigabit Ethernet PoE++ Surveillance Switch. Switch type: Managed, Switch layer: L2. Basic switching RJ-45 Ethernet ports type: Gigabit Ethernet (10/100/1000), Basic switching RJ-45 Ethernet ports quantity: 8, Installed SFP modules quantity: 2. Full duplex. MAC address table: 8000 entries, Switching capacity: 20 Gbit/s. Networking standards: IEEE 802.3, IEEE 802.3ab, IEEE 802.3ad, IEEE 802.3af, IEEE 802.3at, IEEE 802.3az, IEEE 802.3bt,.... Power over Ethernet (PoE). Form factor: 1U
