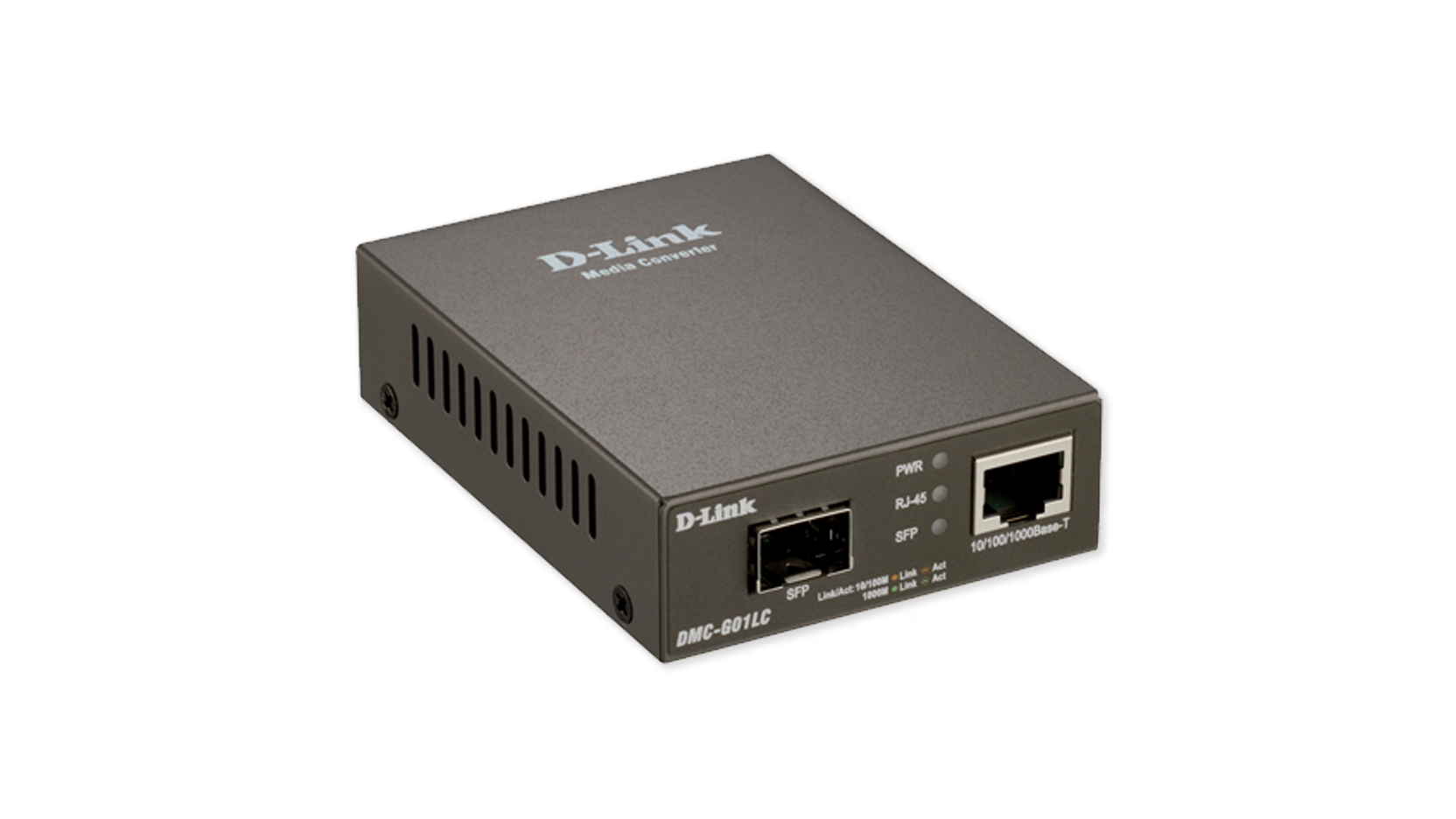

D-Link’s DMC-G01LC standalone media Converter turns a copper Ethernet link into a fiber link, allowing for an ultra-fast, long distance connection. Installation of a standalone media converter is simple, and allows you to tap into fiber speeds with ease. Instead of requiring an investment in an entire chassis, a standalone media converter provides the same high-quality conversion on a unit-by-unit basis. You can save space and cut costs while still extending your network over long distances of 10 km and beyond on a fiber optic line.
SFP Optical Transceivers for Maximum Flexibility
The fiber side of the DMC-G01LC utilizes a 100/1000 SFP port for maximum flexibility. Using the appropriate SFP transceiver (purchased separately) it can support either multimode or single-mode fiber, varying wavelengths, and speeds of either 100 Mbps or 1000 Mbps.
10/100/1000 Copper Speeds
The copper side of the DMC-G01LC auto-negotiates to 10Mbps, 100Mbps or 1000Mbps, ensuring the connection functions at the highest possible speed while remaining compatible with the link partner. It supports auto MDI/MDIX, half/full duplex operation at 10/100 Mbps and full duplex operation at 1000 Mbps.
Plug & Play
The DMC-G01LC supports standard technologies that makes it easy to operate, like 802.3u. 802.3x and 802.3ab. There’s no management software to configure – simply connect the power, connect the cables, and start converting.
Specs
| Networking |
| Maximum data transfer rate |
1000 Mbit/s |
| Networking standards |
IEEE 802.3ab, IEEE 802.3u, IEEE 802.3x |
| Ethernet interface type |
Gigabit Ethernet |
| Ethernet LAN data rates |
10,100,1000 Mbit/s |
| Auto MDI/MDI-X |
Yes |
| Weight & dimensions |
| Width |
70 mm |
| Depth |
95 mm |
| Height |
25 mm |
| Ports & interfaces |
| Fiber optic connector |
SFP |
| Connectivity technology |
Wired |
| Ethernet LAN (RJ-45) ports |
1 |
| Fiber ports quantity |
1 |
| DC-in jack |
Yes |
| Power |
| Input voltage |
230 - 240 V |
| Output voltage |
5 V |
| Output current |
1 A |
| Operational conditions |
| Operating temperature (T-T) |
0 - 50 °C |
| Storage temperature (T-T) |
-10 - 70 °C |
| Operating relative humidity (H-H) |
10 - 90% |
| Storage relative humidity (H-H) |
5 - 90% |
| Design |
| Internal |
No |
| LED indicators |
Yes |
| Product colour |
Grey |
| Safety |
LVD, UL/cUL |
| Certification |
CE, FCC, VCCI, BSMI |
| Performance |
| Mean time between failures (MTBF) |
506711 h |
| Logistics data |
| Shipping (inner) case length |
50.4 cm |
| Shipping (inner) case width |
29.4 cm |
| Shipping (inner) case height |
23.6 cm |
| Shipping (inner) case net weight |
7.16 kg |
| Products per shipping (inner) case |
20 pc(s) |
| Pallet gross weight (air) |
341.1 kg |
| Master (outer) cases per pallet (air) |
40 pc(s) |
| Products per pallet (air) |
800 pc(s) |
| Pallet gross length |
110 cm |
| Pallet gross width |
120 cm |
| Pallet height (air) |
131 cm |
| Pallet gross weight (sea) |
534.6 kg |
| Master (outer) cases per pallet (sea) |
64 pc(s) |
| Products per pallet (sea) |
1280 pc(s) |
| Pallet height (sea) |
2.02 m |
| Shipping (inner) case gross weight |
8.04 kg |
| Harmonized System (HS) code |
85176990 |
| Packaging data |
| Package width |
101 mm |
| Package depth |
134 mm |
| Package height |
95 mm |
| Package weight |
358 g |
Features
D-Link DMC-G01LC/E. Maximum data transfer rate: 1000 Mbit/s, Networking standards: IEEE 802.3ab, IEEE 802.3u, IEEE 802.3x, Ethernet interface type: Gigabit Ethernet. Fiber optic connector: SFP, Connectivity technology: Wired. Mean time between failures (MTBF): 506711 h. Product colour: Grey, Safety: LVD, UL/cUL, Certification: CE, FCC, VCCI, BSMI. Input voltage: 230 - 240 V, Output voltage: 5 V, Output current: 1 A
Product Description
D-Link’s DMC-G01LC standalone media Converter turns a copper Ethernet link into a fiber link, allowing for an ultra-fast, long distance connection. Installation of a standalone media converter is simple, and allows you to tap into fiber speeds with ease. Instead of requiring an investment in an entire chassis, a standalone media converter provides the same high-quality conversion on a unit-by-unit basis. You can save space and cut costs while still extending your network over long distances of 10 km and beyond on a fiber optic line.
SFP Optical Transceivers for Maximum Flexibility
The fiber side of the DMC-G01LC utilizes a 100/1000 SFP port for maximum flexibility. Using the appropriate SFP transceiver (purchased separately) it can support either multimode or single-mode fiber, varying wavelengths, and speeds of either 100 Mbps or 1000 Mbps.
10/100/1000 Copper Speeds
The copper side of the DMC-G01LC auto-negotiates to 10Mbps, 100Mbps or 1000Mbps, ensuring the connection functions at the highest possible speed while remaining compatible with the link partner. It supports auto MDI/MDIX, half/full duplex operation at 10/100 Mbps and full duplex operation at 1000 Mbps.
Plug & Play
The DMC-G01LC supports standard technologies that makes it easy to operate, like 802.3u. 802.3x and 802.3ab. There’s no management software to configure – simply connect the power, connect the cables, and start converting.
