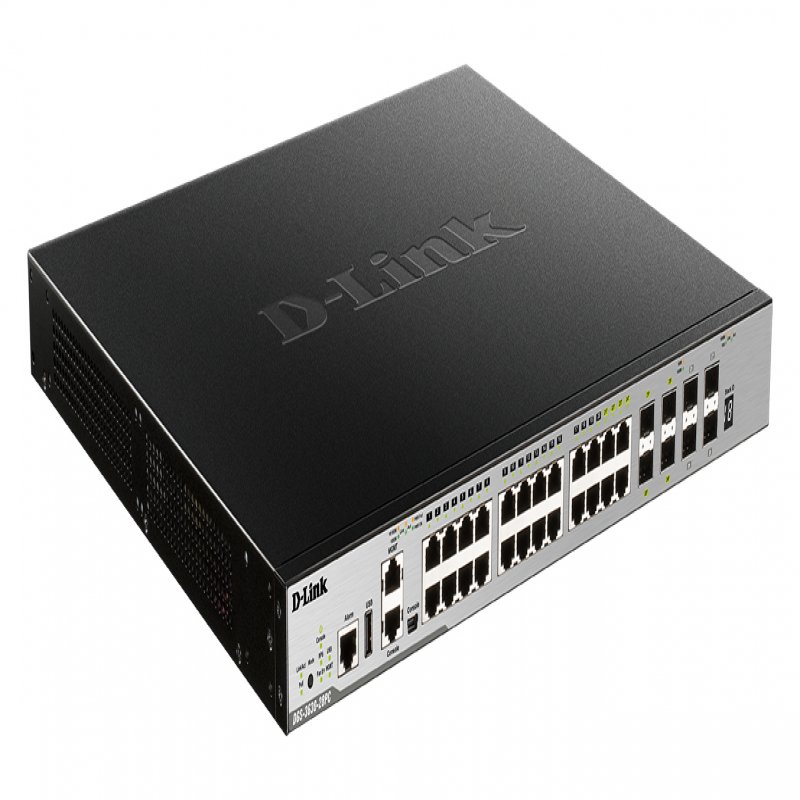

D-Link 20-port GE PoE 370W Layer 3 Stackable Managed Gigabit DGS-3630-28PC/SI - eet01
[DGS-3630-28PC/SI]

Name: D-Link 20-port GE PoE 370W Layer 3 Stackable Managed Gigabit DGS-3630-28PC/SI - eet01
Brand: D-Link
SKU: DGS-3630-28PC/SI
Price: 1550.00 GBP
Availability: InStock

TEMPORARILY OUT OF STOCK

Part Number: DGS-3630-28PC/SI

Manufacturer: D-Link

Condition: New

Short Description:

D-Link 20-port GE PoE 370W Layer 3 Stackable Managed Gigabit DGS-3630-28PC/SI

£1,550.00
£1,860.00 - Inc VAT

Thank you for your request, PLEASE RE-TYPE THE PART NUMBER IN THE SEARCH BOX

Stock Status: 1x unit in stock

Outperforming the competition
The DGS-3630-28TC was benchmarked against a market leading competitor's device. It matched or exceeded the competitor's performance across all tests despite being significantly lower in price with a much lower power consumption.

Versatile Management
The DGS-3630 Series provides:
- Network Assistant Utility
- Industry-standard CLI
- Intuitive web-based management interface
Support for SNMP allows centralized management of a large number of devices and out-of-band management is available via a dedicated console port.
A mini-USB console port allows the DGS-3630 Series to be managed without any extra connectors, and a USB Type A port can be used to store logs, configuration, and firmware images.

High Availability and Flexibility
Includes stacking technology, which allows multiple switches to be combined to form a single physical or virtual stack.
Scale your network using just a stacking cable and without the need for stacking modules.
Increased redundancy over multiple physical units, simplifies management and provides a single IP address to manage all members in the stack.

Security, Performance & Availability
Robust set of QoS features helps ensure that critical network services such as Voice over IP and video conferencing are given high priority through the network.
The D-Link Safeguard Engine increases the switch’s reliability, serviceability, and availability by preventing malicious flooding traffic caused by worms or virus attacks.

Reviews

Specs

Ports & interfaces
Basic switching RJ-45 Ethernet ports quantity	20
Basic switching RJ-45 Ethernet ports type	Gigabit Ethernet (10/100/1000)
Installed SFP modules quantity	0
Installed SFP+ modules quantity	0
Combo SFP ports quantity	4
SFP+ module slots quantity	4
Fiber optic connector	SFP+
Console port	RJ-45/Mini-USB
USB 2.0 ports quantity	1
Networking
Networking standards	IEEE 802.1AX, IEEE 802.1D, IEEE 802.1Qbb, IEEE 802.1ag, IEEE 802.1p, IEEE 802.1s, IEEE 802.1w, IEEE 802.1x, IEEE 802.3ad, IEEE 802.3af, IEEE 802.3ah, IEEE 802.3at
10G support	Yes
Copper ethernet cabling technology	10BASE-T, 100BASE-TX, 1000BASE-T
Port mirroring	Yes
Full duplex	Yes
IP routing	Yes
Routing entries	16000
Flow control support	Yes
Link aggregation	Yes
Head-of-line (HOL) blocking	Yes
Auto-negotiation	Yes
Ethernet Ring Protection Switching (ERPS)	Yes
VLAN support	Yes
Virtual LAN features	Private VLAN, Voice VLAN, Protocol-based VLAN, MAC address-based VLAN, Port-based VLAN
Number of VLANs	4000
Power
Redundant power supply (RPS) support	Yes
AC input voltage	100 - 240 V
AC input frequency	50 - 60 Hz
Operational conditions
Operating temperature (T-T)	-5 - 50 °C
Storage temperature (T-T)	-40 - 70 °C
Operating relative humidity (H-H)	10 - 95%
Storage relative humidity (H-H)	5 - 95%
Weight & dimensions
Width	441 mm
Depth	380 mm
Height	44 mm
Weight	5.88 kg
Security
DHCP features	DHCP server, DHCP client
Access Control List (ACL)	Yes
IGMP snooping	Yes
Security algorithms	802.1x RADIUS, SNMP, SNMPv3, SSH, SSL/TLS
SSH/SSL support	Yes
Loop protection	Yes
BPDU filtering/protection	Yes
IP-MAC-Port binding	Yes
Packaging data
Package width	538 mm
Package depth	560 mm
Package height	170 mm
Package weight	8.24 kg
Data transmission
MAC address table	68000 entries
Switching capacity	128 Gbit/s
Forwarding rate	95.24 Mpps
Store-and-forward	Yes
Static route	Yes
Number of static routes	512
Jumbo frames support	Yes
Jumbo frames	12000
Packet buffer memory	4 MB
Management features
Switch type	Managed
Switch layer	L3
Quality of Service (QoS) support	Yes
Web-based management	Yes
Power over Ethernet (PoE)
Power over Ethernet (PoE)	Yes
Power over Ethernet plus (PoE+) ports quantity	24
Power over Ethernet (PoE) power per port	30 W
Total Power over Ethernet (PoE) budget	370 W
Design
Rack mounting	Yes
Stackable	Yes
Product colour	Black, Grey
Number of fans	4 fan(s)
Safety	cUL, CB, CE, CCC, BSMI
Electromagnetic compatibility	CE, FCC A, C-Tick, VCCI, BSMI, CCC
Performance
Physical stacking (units)	9
Virtual stacking (units)	32
Built-in processor	Yes
Logistics data
Harmonized System (HS) code	85176990
Multicast features
Multicast support	Yes
Multicast Listener Discovery (MLD) snooping	MLD v1, MLD v2
Technical details
Shipping (inner) case height	57.2 cm
Shipping (inner) case width	36.2 cm
Shipping (inner) case length	57.9 cm
Shipping (inner) case net weight	12.9 kg
Products per shipping (inner) case	2 pc(s)
Pallet gross weight (air)	342.4 kg
Master (outer) cases per pallet (air)	18 pc(s)
Products per pallet (air)	36 pc(s)
Pallet gross length	110 cm
Pallet gross width	120 cm
Pallet height (air)	185.1 cm
Pallet gross weight (sea)	342.4 kg
Master (outer) cases per pallet (sea)	18 pc(s)
Products per pallet (sea)	36 pc(s)
Pallet height (sea)	185.1 cm
Shipping (inner) case gross weight	18 kg

Features

D-Link 24 Port PoE L3 Stackable Managed Gigabit Switch including 4 x 1000BaseT/SFP & 4 x 10GE SFP+. Switch type: Managed, Switch layer: L3. Basic switching RJ-45 Ethernet ports type: Gigabit Ethernet (10/100/1000), Basic switching RJ-45 Ethernet ports quantity: 20, USB 2.0 ports quantity: 1, Console port: RJ-45/Mini-USB. Full duplex. MAC address table: 68000 entries, Switching capacity: 128 Gbit/s. Networking standards: IEEE 802.1AX, IEEE 802.1D, IEEE 802.1Qbb, IEEE 802.1ag, IEEE 802.1p, IEEE 802.1s, IEEE 802.1w,.... Power over Ethernet (PoE). Rack mounting

Product Description

Outperforming the competition
The DGS-3630-28TC was benchmarked against a market leading competitor's device. It matched or exceeded the competitor's performance across all tests despite being significantly lower in price with a much lower power consumption.

Versatile Management
The DGS-3630 Series provides:
- Network Assistant Utility
- Industry-standard CLI
- Intuitive web-based management interface
Support for SNMP allows centralized management of a large number of devices and out-of-band management is available via a dedicated console port.
A mini-USB console port allows the DGS-3630 Series to be managed without any extra connectors, and a USB Type A port can be used to store logs, configuration, and firmware images.

High Availability and Flexibility
Includes stacking technology, which allows multiple switches to be combined to form a single physical or virtual stack.
Scale your network using just a stacking cable and without the need for stacking modules.
Increased redundancy over multiple physical units, simplifies management and provides a single IP address to manage all members in the stack.

Security, Performance & Availability
Robust set of QoS features helps ensure that critical network services such as Voice over IP and video conferencing are given high priority through the network.
The D-Link Safeguard Engine increases the switch’s reliability, serviceability, and availability by preventing malicious flooding traffic caused by worms or virus attacks.
