Stock Status: 1x unit in stock

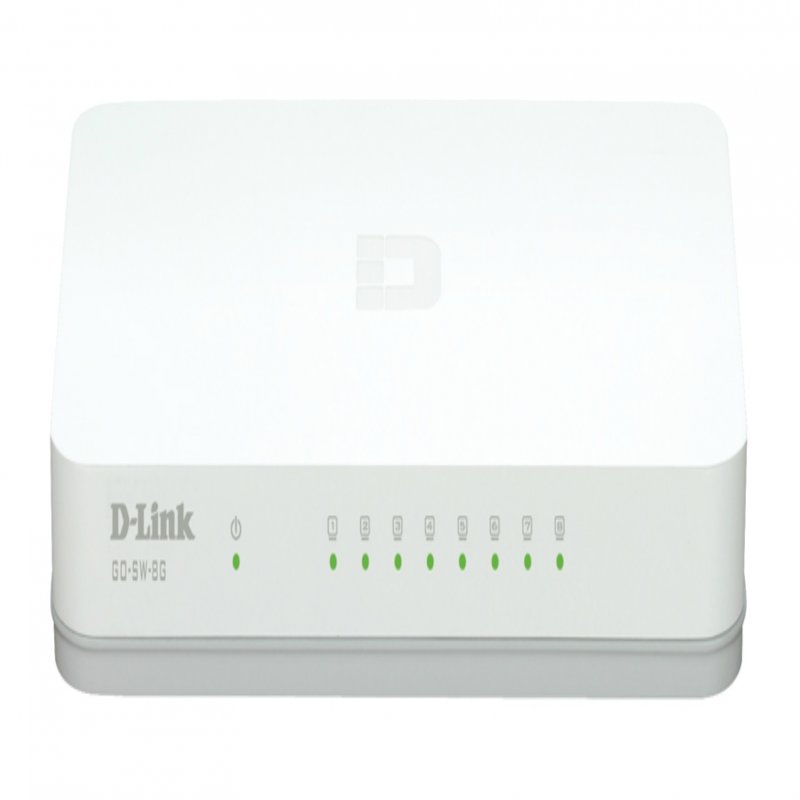

The 8-Port Gigabit Easy Desktop Switch (GO-SW-8G) offers an economical way for SOHO and small to medium businesses (SMB) to benefit from the increased bandwidth of Gigabit Ethernet. It provides eight Gigabit ports for easy expansion of your network and a quick way to upgrade your network to Gigabit connectivity.
Connect All of Your Devices with Gigabit Speed
Expand your wired home network with the D-Link 8-Port Unmanaged Gigabit Desktop Switch (GO-SW-8G). By connecting the GO-SW-8G to your router, you can add up to seven more computers to your home network with Fast Ethernet connectivity. Add devices like your gaming console, printer, print server, Network-Attached Storage (NAS) or network camera with a simple Ethernet cable.
Compact Design
This Desktop Switch fits virtually anywhere because of its compact size. Its power connector and ports are conveniently located in the rear to avoid messy cables on the desk.
Effortless High Speed Networking
Features easy access auto sensing Gigabit front Ethernet ports with a LED indicator for each port to quickly distinguish link status and activity. The GO-SW-8G switch also supports Auto MDI/MDIX Crossover allowing each port to be plugged directly to a server, hub, router, or switch using regular straight-through twisted-pair Ethernet cables to get you the maximum speed possible for each device connected to your network.
Plug and Play Installation
TheD-Link 8-Port Gigabit Desktop Switch is a Plug-and-Play device that requires no configuration, so setup is simple and hassle-free. But we know that setting up your switch is only the beginning; you can also easily connect multiple computers, share files, music, and video across your home or small office network, or even create a multi-player gaming environment.
D-Link Green Technology
The GO-SW-8G 8-Port Unmanaged Gigabit Switch is part of D-Link’s new series of SOHO devices that make use of D-Link’s Green Technology, providing energy savings, reduced heat, and a longer product life without sacrificing performance or functionality. An energy-efficient power adapter (EnergyStar Level V qualified), minimized use of harmful substances (RoHS compliant), and recyclable packaging make this switch truly environmentally friendly.
Specs
| Ports & interfaces |
| Basic switching RJ-45 Ethernet ports quantity |
8 |
| Basic switching RJ-45 Ethernet ports type |
Gigabit Ethernet (10/100/1000) |
| Gigabit Ethernet (copper) ports quantity |
8 |
| Power connector |
DC-in jack |
| Networking |
| Networking standards |
IEEE 802.3, IEEE 802.3ab, IEEE 802.3az, IEEE 802.3u, IEEE 802.3x |
| 10G support |
No |
| Copper ethernet cabling technology |
1000BASE-T, 100BASE-TX, 10BASE-T |
| Full duplex |
Yes |
| Flow control support |
Yes |
| Auto MDI/MDI-X |
Yes |
| MAC address auto-learning supported |
Yes |
| Power |
| Output voltage |
5 V |
| Output current |
1 A |
| Operational conditions |
| Operating temperature (T-T) |
0 - 40 °C |
| Storage temperature (T-T) |
-10 - 70 °C |
| Operating relative humidity (H-H) |
10 - 90% |
| Storage relative humidity (H-H) |
5 - 90% |
| Weight & dimensions |
| Width |
128 mm |
| Depth |
68.5 mm |
| Height |
25.4 mm |
| Weight |
195 g |
| Packaging data |
| User guide |
Yes |
| AC adapter included |
Yes |
| Package width |
104 mm |
| Package depth |
158 mm |
| Package height |
94 mm |
| Package weight |
281 g |
| Data transmission |
| MAC address table |
8000 entries |
| Switching capacity |
16 Gbit/s |
| Store-and-forward |
Yes |
| Jumbo frames support |
Yes |
| Jumbo frames |
9216 |
| Packet forwarding rate (1 Gbps) |
1488000 pps |
| Packet forwarding rate (100 Mbps) |
148800 pps |
| Packet forwarding rate (10 Mbps) |
14880 pps |
| Management features |
| Switch type |
Unmanaged |
| Protocols |
| Supported network protocols |
CSMA/CD |
| Design |
| Rack mounting |
No |
| Product colour |
White |
| LED indicators |
Yes |
| Certification |
FCC
cUL/UL
ICES-003
CCC
CE
Anatel
C-Tick
LVD
VCCI |
| Performance |
| Buffer size |
128 KB |
| Mean time between failures (MTBF) |
412433 h |
| Logistics data |
| Harmonized System (HS) code |
85176990 |
| Technical details |
| Shipping (inner) case height |
19.3 cm |
| Shipping (inner) case width |
23 cm |
| Shipping (inner) case length |
49.8 cm |
| Shipping (inner) case net weight |
1.95 kg |
| Products per shipping (inner) case |
10 pc(s) |
| Pallet gross weight (air) |
348.5 kg |
| Master (outer) cases per pallet (air) |
100 pc(s) |
| Products per pallet (air) |
1000 pc(s) |
| Pallet gross length |
110 cm |
| Pallet gross width |
120 cm |
| Pallet height (air) |
2.06 m |
| Pallet gross weight (sea) |
348.5 kg |
| Master (outer) cases per pallet (sea) |
100 pc(s) |
| Products per pallet (sea) |
1000 pc(s) |
| Pallet height (sea) |
2.06 m |
| Shipping (inner) case gross weight |
3.3 kg |
Features
D-Link GO-SW-8G/E. Switch type: Unmanaged. Basic switching RJ-45 Ethernet ports type: Gigabit Ethernet (10/100/1000), Basic switching RJ-45 Ethernet ports quantity: 8. Full duplex. MAC address table: 8000 entries, Switching capacity: 16 Gbit/s. Networking standards: IEEE 802.3, IEEE 802.3ab, IEEE 802.3az, IEEE 802.3u, IEEE 802.3x. Power connector: DC-in jack
Product Description
The 8-Port Gigabit Easy Desktop Switch (GO-SW-8G) offers an economical way for SOHO and small to medium businesses (SMB) to benefit from the increased bandwidth of Gigabit Ethernet. It provides eight Gigabit ports for easy expansion of your network and a quick way to upgrade your network to Gigabit connectivity.
Connect All of Your Devices with Gigabit Speed
Expand your wired home network with the D-Link 8-Port Unmanaged Gigabit Desktop Switch (GO-SW-8G). By connecting the GO-SW-8G to your router, you can add up to seven more computers to your home network with Fast Ethernet connectivity. Add devices like your gaming console, printer, print server, Network-Attached Storage (NAS) or network camera with a simple Ethernet cable.
Compact Design
This Desktop Switch fits virtually anywhere because of its compact size. Its power connector and ports are conveniently located in the rear to avoid messy cables on the desk.
Effortless High Speed Networking
Features easy access auto sensing Gigabit front Ethernet ports with a LED indicator for each port to quickly distinguish link status and activity. The GO-SW-8G switch also supports Auto MDI/MDIX Crossover allowing each port to be plugged directly to a server, hub, router, or switch using regular straight-through twisted-pair Ethernet cables to get you the maximum speed possible for each device connected to your network.
Plug and Play Installation
TheD-Link 8-Port Gigabit Desktop Switch is a Plug-and-Play device that requires no configuration, so setup is simple and hassle-free. But we know that setting up your switch is only the beginning; you can also easily connect multiple computers, share files, music, and video across your home or small office network, or even create a multi-player gaming environment.
D-Link Green Technology
The GO-SW-8G 8-Port Unmanaged Gigabit Switch is part of D-Link’s new series of SOHO devices that make use of D-Link’s Green Technology, providing energy savings, reduced heat, and a longer product life without sacrificing performance or functionality. An energy-efficient power adapter (EnergyStar Level V qualified), minimized use of harmful substances (RoHS compliant), and recyclable packaging make this switch truly environmentally friendly.
