Stock Status: 1x unit in stock
- Plug and Play operation
- 5 Gigabit Ethernet ports
- Non-blocking architecture: simultaneous full speed on all ports
- Fanless, silent operation to fit in any environment
- Quality of Service (QoS) queues for traffic prioritisation
- Solidly built with metal housing
- Cable diagnostics function to detect faulty network cables
- D-Link Green™ technology, saves energy and increases the product’s lifespan

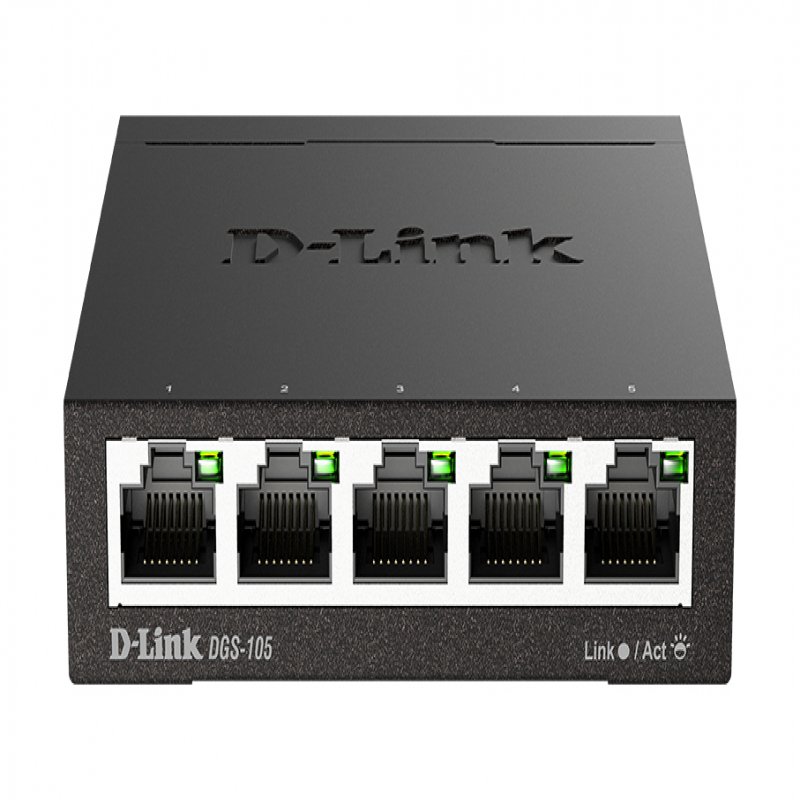

D-Link’s DGS-105 Gigabit Ethernet switch provides a cost-effective way for SOHO and SMB to create a small network and connect computers, wireless Access Points, IP cameras, network printers and other Ethernet devices quickly and easily without complicated configurations. This switch comes with 5 Gigabit Ethernet ports with an auto-sensing function to detect the maximum speed of the connected devices, allowing you to run your network with the best possible performance. Its fanless design makes the DGS-105 completely silent, ideal for offices, libraries or meeting rooms.
Robust design
The DGS-105 is designed with durability and performance in mind. The sturdy metal housing will protect the switch against accidental harm, while helping to dissipate heat and to reduce stress on internal components. The visible LEDs allow for an easy reading of each port status and speed, helping to troubleshoot connectivity problems. For a convenient placement, the DGS-105 comes with a wall mounting kit and a slot for a Kensington security lock to protect it from theft.
QoS (Quality of Service)
Despite being an unmanaged, Plug and Play switch, the DGS-105 is able to classify network traffic by assessing the 802.1p field in the Ethernet frames, and forward them out of its ports depending on their priority. This allows for a smooth integration of video, voice and data traffic without delays or loss of quality.
Cable diagnostics function
The cable diagnostics function enables users to quickly troubleshoot faulty network cables that may lead to transmission errors. At startup, the switch performs a micro-test to assess the quality of the cables connected to its ports. If a fault is detected, the ambar LED will lit up. If the cables pass the test, the green LED will be illuminated, indicating that the network is error-free. This feature can save valuable time when trying to single out a faulty cable that causes problems in the whole network.
Power-saving technology
The DGS-105 is part of D-Link Green™, D-Link’s eco-friendly technology, providing energy savings, reduced power consumption, and a longer product lifespan without sacrificing operational performance or functionality. This switch implements the 802.3az Energy Efficient Ethernet (EEE) standard, which can save a substantial amount of energy by detecting the port status, putting them in low-power, stand-by mode when no network traffic is detected. Additionally, the Green Ethernet™ technology in the DGS-105 can detect the length of the network cables connected to its ports and provide only the right amount of energy required. This helps businesses to save money by reducing their electricity bills with no compromise on performance.
Specs
| Ports & interfaces |
| Basic switching RJ-45 Ethernet ports quantity |
5 |
| Basic switching RJ-45 Ethernet ports type |
Gigabit Ethernet (10/100/1000) |
| Power connector |
DC-in jack |
| Networking |
| Networking standards |
IEEE 802.1p, IEEE 802.3, IEEE 802.3ab, IEEE 802.3az, IEEE 802.3u, IEEE 802.3x |
| Copper ethernet cabling technology |
1000BASE-T, 100BASE-TX, 10BASE-T |
| Full duplex |
Yes |
| Flow control support |
Yes |
| Auto MDI/MDI-X |
Yes |
| Power |
| Input current |
1 A |
| Input voltage |
5 V |
| Power consumption (typical) |
2.1 W |
| Operational conditions |
| Operating temperature (T-T) |
0 - 50 °C |
| Storage temperature (T-T) |
-10 - 70 °C |
| Operating relative humidity (H-H) |
10 - 90% |
| Storage relative humidity (H-H) |
5 - 90% |
| Weight & dimensions |
| Width |
100 mm |
| Depth |
98 mm |
| Height |
28 mm |
| Weight |
267 g |
| Security |
| MAC address filtering |
Yes |
| Packaging data |
| Package width |
170 mm |
| Package depth |
220 mm |
| Package height |
62 mm |
| Package weight |
450 g |
| Data transmission |
| MAC address table |
2000 entries |
| Switching capacity |
10 Gbit/s |
| Supported data transfer rates |
10/100/1000 Mbps |
| Store-and-forward |
Yes |
| Maximum data transfer rate |
1 Gbit/s |
| Jumbo frames support |
Yes |
| Packet buffer memory |
0.128 MB |
| Management features |
| Switch type |
Unmanaged |
| Switch layer |
L2 |
| Quality of Service (QoS) support |
Yes |
| Other features |
| Data transfer rate |
2000 Mbit/s |
| Dimensions (WxDxH) |
100 x 98 x 28 mm |
| Connectivity technology |
Wired |
| Design |
| Rack mounting |
No |
| Product colour |
Black |
| Housing material |
Metal |
| Performance |
| Mean time between failures (MTBF) |
1688338 h |
| Logistics data |
| Harmonized System (HS) code |
85176990 |
| Technical details |
| Shipping (inner) case height |
36.6 cm |
| Shipping (inner) case width |
23 cm |
| Shipping (inner) case length |
33.5 cm |
| Shipping (inner) case net weight |
5 kg |
| Products per shipping (inner) case |
10 pc(s) |
| Pallet gross weight (air) |
439.8 kg |
| Master (outer) cases per pallet (air) |
75 pc(s) |
| Products per pallet (air) |
750 pc(s) |
| Pallet gross length |
120 cm |
| Pallet gross width |
110 cm |
| Pallet height (air) |
2.04 m |
| Pallet gross weight (sea) |
439.8 kg |
| Master (outer) cases per pallet (sea) |
75 pc(s) |
| Products per pallet (sea) |
750 pc(s) |
| Pallet height (sea) |
2.04 m |
| Shipping (inner) case gross weight |
5.53 kg |
| Certification |
| Certification |
FCC Class B, ICES-003 Class B, CE Class B, C-Tick Class B, VCCI Class B, cUL, CB, RoHS |
Features
D-Link DGS-105. Switch type: Unmanaged, Switch layer: L2. Basic switching RJ-45 Ethernet ports type: Gigabit Ethernet (10/100/1000), Basic switching RJ-45 Ethernet ports quantity: 5. Full duplex. MAC address table: 2000 entries, Switching capacity: 10 Gbit/s. Networking standards: IEEE 802.1p, IEEE 802.3, IEEE 802.3ab, IEEE 802.3az, IEEE 802.3u, IEEE 802.3x. Power connector: DC-in jack
