Experience multi-Gigabit Ethernet speeds.

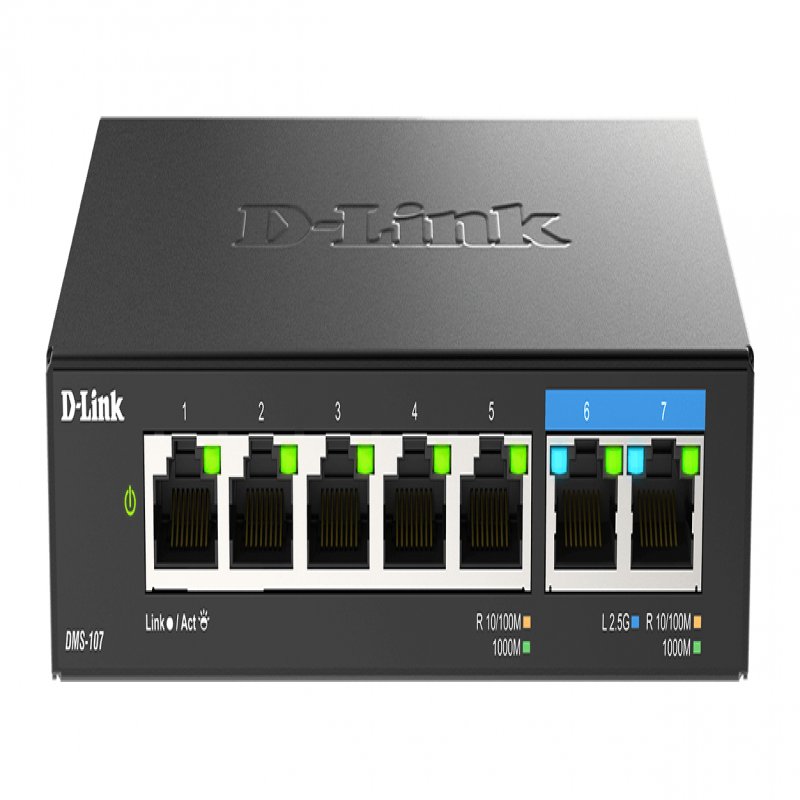

The DMS-107 is a multi-Gigabit Ethernet plug-and-play switch that provides ultra-fast connectivity to your network core or network-attached storage (NAS) device. You can easily connect multiple computers within minutes, and start sharing an internet connection, files, music, and video across your small office or home network.
2.5 Gigabit Ethernet
Save time transferring large files and improve sharing and productivity
Effortless multi-Gigabit networking
Easily upgrade or extend your home or small business network
Compact Metal Housing
Sturdy, compact metal housing with fanless design for silent operation
Energy Efficient Design
Automatic power saving features to reduce power usage
Ready for Wi-Fi 6.
It comes with multi-Gigabit ports for maximum throughput and performance - ideal for enjoying unrestricted Wi-Fi 6 devices, high-end gaming computers and workstations. The multi-Gigabit ports eliminate potential bottlenecks with Wi-Fi 6 Access Points, allowing your network to take full advantage of the efficiency and speeds provided by Wi-Fi 6.
Effortless traffic optimisation.
With 2.5 Gigabit transfer speeds on uplink ports, you can rapidly transfer files between connected servers and network attached storage (NAS) to computers. The switch’s 802.1p Quality of Service (QoS) functionality on Gigabit ports automatically organises and prioritises time-sensitive and critical data for efficient delivery, allowing for buffer-free video streaming as well as smooth video and voice calls.
Plug-and-pay convenience.
The DMS-107 is a plug-and-play device that requires no advanced technical configuration. Plug-and-play makes it easy to instantly create a network connected to the internet.
Designed for life, built to last.
The DMS-107 features a fanless design for silent operation, reduced energy consumption, and increased reliability by eliminating a common point of failure. Its sturdy compact metal housing ensures the product can withstand wider operating temperatures by helping to dissipate heat and reduce stress on internal components.
Energy Saving.
The compact, metal housing and fanless design mean the switches can be placed virtually anywhere and operate silently. The DMS-107 is designed with energy efficiency in mind. The switches automatically reduce power to ports that are inactive or not connected, and support the IEEE 802.3az Energy-Efficient Ethernet standard.
Specs
| Ports & interfaces |
| Basic switching RJ-45 Ethernet ports quantity |
5 |
| Basic switching RJ-45 Ethernet ports type |
Gigabit Ethernet (10/100/1000) |
| Installed SFP modules quantity |
0 |
| Installed SFP+ modules quantity |
0 |
| Gigabit Ethernet (copper) ports quantity |
5 |
| 2.5G Ethernet (copper) ports quantity |
2 |
| Networking |
| Networking standards |
IEEE 802.1p, IEEE 802.3, IEEE 802.3ab, IEEE 802.3az, IEEE 802.3bz, IEEE 802.3u, IEEE 802.3x |
| 10G support |
No |
| Copper ethernet cabling technology |
10BASE-T, 100BASE-T, 1000BASE-T, 2500BASE-T |
| Auto MDI/MDI-X |
Yes |
| Ethernet LAN data rates |
10,100,1000,2500 Mbit/s |
| MAC address auto-learning supported |
Yes |
| Power |
| Power source |
DC |
| DC input voltage |
12 V |
| Input current |
0.5 A |
| Power consumption (typical) |
3.37 W |
| Operational conditions |
| Operating temperature (T-T) |
0 - 40 °C |
| Storage temperature (T-T) |
-10 - 70 °C |
| Operating relative humidity (H-H) |
10 - 90% |
| Storage relative humidity (H-H) |
5 - 90% |
| Heat dissipation |
14.28 BTU/h |
| Weight & dimensions |
| Width |
145 mm |
| Depth |
28 mm |
| Height |
82 mm |
| Weight |
295.2 g |
| Data transmission |
| MAC address table |
2000 entries |
| Switching capacity |
20 Gbit/s |
| Forwarding rate |
14.88 Mpps |
| Store-and-forward |
Yes |
| Number of queues |
8 |
| Packet buffer memory |
2 MB |
| Management features |
| Switch type |
Unmanaged |
| Quality of Service (QoS) support |
Yes |
| Power over Ethernet (PoE) |
| Power over Ethernet (PoE) |
No |
| Design |
| Product colour |
Black |
| Housing material |
Metal |
| LED indicators |
Activity, Link, Power |
| Performance |
| Fanless |
Yes |
| Mean time between failures (MTBF) |
944277.78 h |
| Certification |
| Compliance certificates |
BSMI, CE, Low Voltage Directive (LVD), RoHS |
| Sustainability |
| Sustainability compliance |
Yes |
Features
D-Link 7-Port Multi-Gigabit Unmanaged Switch. Switch type: Unmanaged. Basic switching RJ-45 Ethernet ports type: Gigabit Ethernet (10/100/1000), Basic switching RJ-45 Ethernet ports quantity: 5. MAC address table: 2000 entries, Switching capacity: 20 Gbit/s. Networking standards: IEEE 802.1p, IEEE 802.3, IEEE 802.3ab, IEEE 802.3az, IEEE 802.3bz, IEEE 802.3u, IEEE 802.3x. DC input voltage: 12 V
Product Description
Experience multi-Gigabit Ethernet speeds.
The DMS-107 is a multi-Gigabit Ethernet plug-and-play switch that provides ultra-fast connectivity to your network core or network-attached storage (NAS) device. You can easily connect multiple computers within minutes, and start sharing an internet connection, files, music, and video across your small office or home network.
2.5 Gigabit Ethernet
Save time transferring large files and improve sharing and productivity
Effortless multi-Gigabit networking
Easily upgrade or extend your home or small business network
Compact Metal Housing
Sturdy, compact metal housing with fanless design for silent operation
Energy Efficient Design
Automatic power saving features to reduce power usage
Ready for Wi-Fi 6.
It comes with multi-Gigabit ports for maximum throughput and performance - ideal for enjoying unrestricted Wi-Fi 6 devices, high-end gaming computers and workstations. The multi-Gigabit ports eliminate potential bottlenecks with Wi-Fi 6 Access Points, allowing your network to take full advantage of the efficiency and speeds provided by Wi-Fi 6.
Effortless traffic optimisation.
With 2.5 Gigabit transfer speeds on uplink ports, you can rapidly transfer files between connected servers and network attached storage (NAS) to computers. The switch’s 802.1p Quality of Service (QoS) functionality on Gigabit ports automatically organises and prioritises time-sensitive and critical data for efficient delivery, allowing for buffer-free video streaming as well as smooth video and voice calls.
Plug-and-pay convenience.
The DMS-107 is a plug-and-play device that requires no advanced technical configuration. Plug-and-play makes it easy to instantly create a network connected to the internet.
Designed for life, built to last.
The DMS-107 features a fanless design for silent operation, reduced energy consumption, and increased reliability by eliminating a common point of failure. Its sturdy compact metal housing ensures the product can withstand wider operating temperatures by helping to dissipate heat and reduce stress on internal components.
Energy Saving.
The compact, metal housing and fanless design mean the switches can be placed virtually anywhere and operate silently. The DMS-107 is designed with energy efficiency in mind. The switches automatically reduce power to ports that are inactive or not connected, and support the IEEE 802.3az Energy-Efficient Ethernet standard.
