• 48Gbps switching capacity
• 8K MAC Address Table
• Rack mountable or Desktop

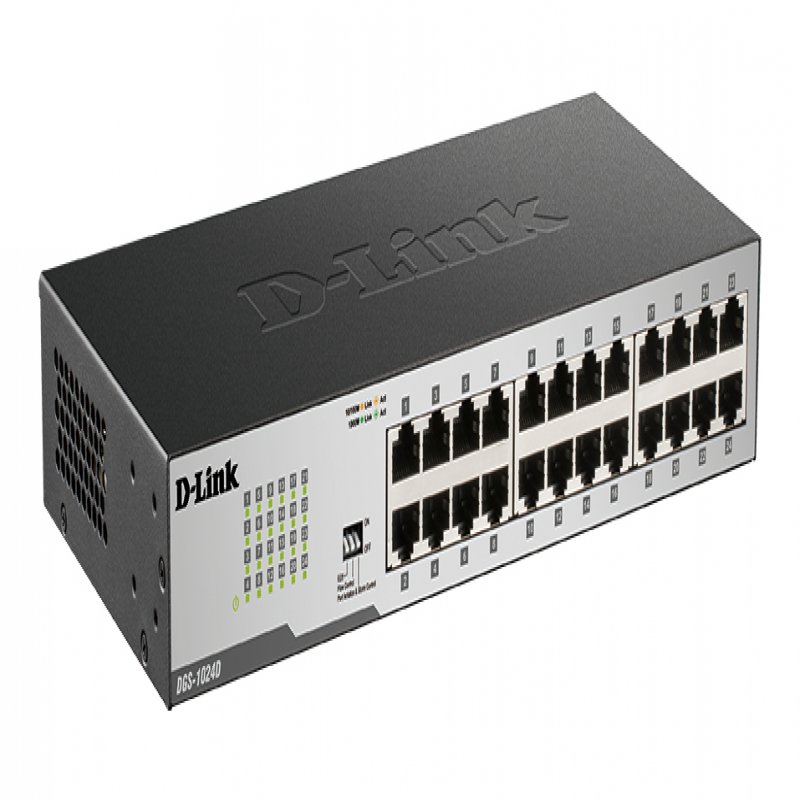

Get the blazing speed of Gigabit Ethernet with the D-Link DGS-1024D, a 24-port 10/100/1000Mbps Switch that delivers power, performance, and reliability in one cost-effective, space-saving design. Increase the speed of your network server and backbone connections, or make Gigabit to the desktop a reality. Power users in the office, workgroup, or creative production environment can now move large, bandwidth-intensive files faster. Transfer graphics, CGI, CAD, or multimedia files across the network instantly. The versatile and compact 1RU height design of the DGS-1024D enables the device to be rackmounted in a standard 19 inch rack, while conserving valuable rack space.
Power-Packed
It features a non-blocking switching architecture that filters and forwards packets at full wire-speed for maximum throughput. An 8K MAC address table provides scalability for even the largest networks. Address learning and aging, 802.3x Flow Control for full-duplex mode, and back pressure flow control for half-duplex mode alleviates traffic congestion and ensures reliable data transmission. Designed using industry standards, it is compatible with virtually all 10, 100, and 1000Mbps Ethernet devices and other vendor equipment. It protects your existing network investments while providing you with a straightforward migration path to faster Gigabit speeds.
Easy to Install and Maintain
The auto features of this switch make installation plug & play and hassle-free. No configuration is required. Auto-MDI/MDI-X crossover on all ports eliminate the need for crossover cables for connection to another switch or hub. Auto-Negotiation on each port senses the link speed of a network device (either 10, 100, 1000Mbps) and intelligently adjusts for compatibility and optimal performance. It also features diagnostic LEDs, which display status and activity, allowing you to quickly detect and correct problems on the network. Every port also supports a cable diagnostic feature that helps to detect cable related problems.
Specs
Ports & interfaces |
Basic switching RJ-45 Ethernet ports quantity |
24 |
Basic switching RJ-45 Ethernet ports type |
Gigabit Ethernet (10/100/1000) |
Power |
Power consumption (typical) |
27.5 W |
Operational conditions |
Storage temperature (T-T) |
-10 - 55 °C |
Operating relative humidity (H-H) |
0 - 40% |
Weight & dimensions |
Weight |
1.81 kg |
Packaging data |
Package width |
262 mm |
Package depth |
391 mm |
Package height |
102 mm |
Package weight |
2.5 kg |
Data transmission |
MAC address table |
8000 entries |
Maximum data transfer rate |
1 Gbit/s |
Packet buffer memory |
0.5 MB |
Management features |
Switch type |
Unmanaged |
Other features |
Dimensions (WxDxH) |
280 x 180 x 44 mm |
I/O ports |
10BASE-T, 100BASE-TX & 1000BASE-T
|
Power over Ethernet (PoE) |
Power over Ethernet (PoE) |
No |
Design |
Rack mounting |
Yes |
Stackable |
No |
Logistics data |
Harmonized System (HS) code |
85176990 |
Technical details |
Shipping (inner) case height |
43.1 cm |
Shipping (inner) case width |
28.4 cm |
Shipping (inner) case length |
54.3 cm |
Shipping (inner) case net weight |
8.84 kg |
Products per shipping (inner) case |
5 pc(s) |
Pallet gross weight (air) |
447.3 kg |
Master (outer) cases per pallet (air) |
32 pc(s) |
Products per pallet (air) |
160 pc(s) |
Pallet gross length |
110 cm |
Pallet gross width |
120 cm |
Pallet height (air) |
185.9 cm |
Pallet gross weight (sea) |
447.3 kg |
Master (outer) cases per pallet (sea) |
32 pc(s) |
Products per pallet (sea) |
160 pc(s) |
Pallet height (sea) |
185.9 cm |
Shipping (inner) case gross weight |
13.4 kg |
Features
D-Link DGS-1024D/B 24-Port Gigabit Unmanaged Desktop Switch. Switch type: Unmanaged. Basic switching RJ-45 Ethernet ports type: Gigabit Ethernet (10/100/1000), Basic switching RJ-45 Ethernet ports quantity: 24. MAC address table: 8000 entries. Rack mounting
Product Description
• 48Gbps switching capacity
• 8K MAC Address Table
• Rack mountable or Desktop
Get the blazing speed of Gigabit Ethernet with the D-Link DGS-1024D, a 24-port 10/100/1000Mbps Switch that delivers power, performance, and reliability in one cost-effective, space-saving design. Increase the speed of your network server and backbone connections, or make Gigabit to the desktop a reality. Power users in the office, workgroup, or creative production environment can now move large, bandwidth-intensive files faster. Transfer graphics, CGI, CAD, or multimedia files across the network instantly. The versatile and compact 1RU height design of the DGS-1024D enables the device to be rackmounted in a standard 19 inch rack, while conserving valuable rack space.
Power-Packed
It features a non-blocking switching architecture that filters and forwards packets at full wire-speed for maximum throughput. An 8K MAC address table provides scalability for even the largest networks. Address learning and aging, 802.3x Flow Control for full-duplex mode, and back pressure flow control for half-duplex mode alleviates traffic congestion and ensures reliable data transmission. Designed using industry standards, it is compatible with virtually all 10, 100, and 1000Mbps Ethernet devices and other vendor equipment. It protects your existing network investments while providing you with a straightforward migration path to faster Gigabit speeds.
Easy to Install and Maintain
The auto features of this switch make installation plug & play and hassle-free. No configuration is required. Auto-MDI/MDI-X crossover on all ports eliminate the need for crossover cables for connection to another switch or hub. Auto-Negotiation on each port senses the link speed of a network device (either 10, 100, 1000Mbps) and intelligently adjusts for compatibility and optimal performance. It also features diagnostic LEDs, which display status and activity, allowing you to quickly detect and correct problems on the network. Every port also supports a cable diagnostic feature that helps to detect cable related problems.
