Stock Status: 1x unit in stock

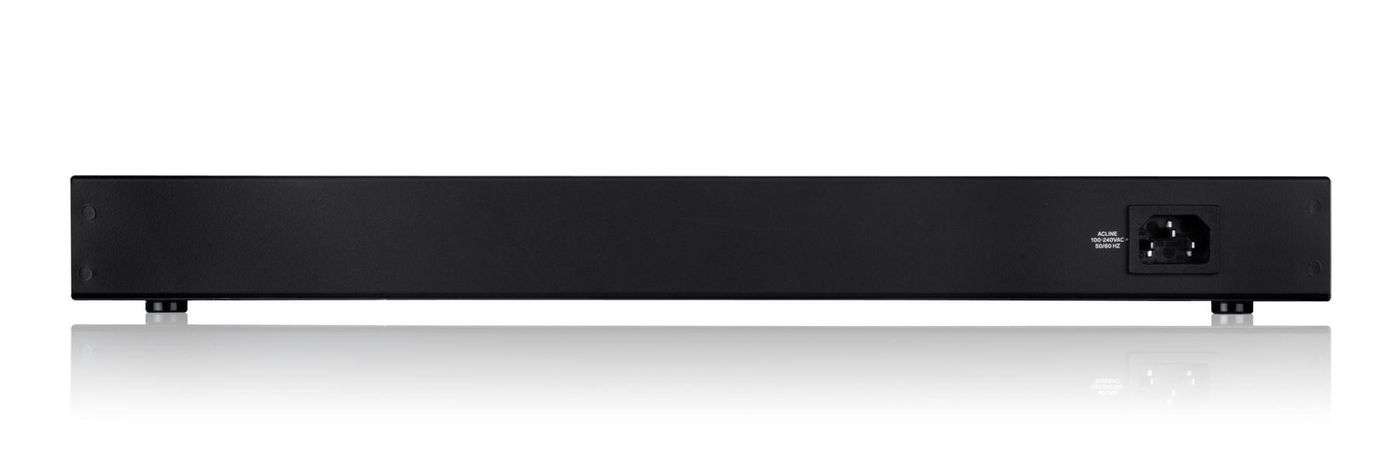

Linksys LGS124 24-Port Business Gigabit Switch
.
A wireless network may not be the best option for your business for a variety of reasons, including unreliability, slow download speeds, privacy concerns, and your daily data transference. Upgrade the data paths of your local wired network to information superhighways with Gigabit switches at the desktop.
.
Accelerate your performance and productivity when you send large files to network servers, drives, and printers at Gigabit speed.
.
Plug-And-Play Convenience
.
Linksys unmanaged switches offer a quick and easy solution to extend your office network with plug-and-play installation.
.
Gigabit Performance
.
The unmanaged switch offers Gigabit speeds to minimise transfer times and greatly enhance the ability to stream high-bandwidth files to connected devices without interference.
.
Power Saving Features
.
Power saving features include auto power-down to disable unused ports, smart power for short cable runs, and a port status switch to control LED lights.
.
Specs
| Ports & interfaces |
| Basic switching RJ-45 Ethernet ports quantity |
24 |
| Basic switching RJ-45 Ethernet ports type |
Gigabit Ethernet (10/100/1000) |
| Installed SFP modules quantity |
0 |
| Installed SFP+ modules quantity |
0 |
| Gigabit Ethernet (copper) ports quantity |
24 |
| Networking |
| Networking standards |
IEEE 802.1p, IEEE 802.3, IEEE 802.3ab, IEEE 802.3az, IEEE 802.3u, IEEE 802.3x |
| 10G support |
No |
| Copper ethernet cabling technology |
10BASE-T, 100BASE-T, 1000BASE-T |
| Ethernet LAN data rates |
10,1000,100 Mbit/s |
| Power |
| Power source |
AC |
| Power supply included |
Yes |
| Number of power supply units |
1 |
| AC input voltage |
110 - 240 V |
| AC input frequency |
50/60 Hz |
| Power consumption (typical) |
14.16 W |
| Operational conditions |
| Operating temperature (T-T) |
0 - 50 °C |
| Storage temperature (T-T) |
-20 - 70 °C |
| Operating relative humidity (H-H) |
10 - 90% |
| Storage relative humidity (H-H) |
10 - 90% |
| Weight & dimensions |
| Width |
197.1 mm |
| Depth |
433.8 mm |
| Height |
43.7 mm |
| Weight |
2.29 kg |
| Packaging data |
| Package width |
510.5 mm |
| Package depth |
99.1 mm |
| Package height |
315 mm |
| Package weight |
3.28 kg |
| Data transmission |
| MAC address table |
8000 entries |
| Switching capacity |
48 Gbit/s |
| Forwarding rate |
1.488 Mpps |
| Management features |
| Switch type |
Unmanaged |
| Switch layer |
L2 |
| Quality of Service (QoS) support |
Yes |
| Power over Ethernet (PoE) |
| Power over Ethernet (PoE) |
No |
| Design |
| Rack mounting |
Yes |
| Form factor |
1U |
| Product colour |
Black |
| Housing material |
Metal |
| LED indicators |
Activity, Link, Speed |
| Logistics data |
| Country of origin |
China |
| Master (outer) case width |
526.2 mm |
| Master (outer) case length |
408.9 mm |
| Master (outer) case height |
345.4 mm |
| Harmonized System (HS) code |
85176990 |
| Master (outer) case gross weight |
14.5 kg |
| Products per master (outer) case |
4 pc(s) |
| Certification |
| Certification |
FCC Class A, CE, UL, CB |
| Packaging content |
| Cables included |
AC |
| Quick start guide |
Yes |
Features
Linksys 24-Port Gigabit Switch (LGS124). Switch type: Unmanaged, Switch layer: L2. Basic switching RJ-45 Ethernet ports type: Gigabit Ethernet (10/100/1000), Basic switching RJ-45 Ethernet ports quantity: 24. MAC address table: 8000 entries, Switching capacity: 48 Gbit/s. Networking standards: IEEE 802.1p, IEEE 802.3, IEEE 802.3ab, IEEE 802.3az, IEEE 802.3u, IEEE 802.3x. Rack mounting, Form factor: 1U
Product Description
Linksys LGS124 24-Port Business Gigabit Switch
.
A wireless network may not be the best option for your business for a variety of reasons, including unreliability, slow download speeds, privacy concerns, and your daily data transference. Upgrade the data paths of your local wired network to information superhighways with Gigabit switches at the desktop.
.
Accelerate your performance and productivity when you send large files to network servers, drives, and printers at Gigabit speed.
.
Plug-And-Play Convenience
.
Linksys unmanaged switches offer a quick and easy solution to extend your office network with plug-and-play installation.
.
Gigabit Performance
.
The unmanaged switch offers Gigabit speeds to minimise transfer times and greatly enhance the ability to stream high-bandwidth files to connected devices without interference.
.
Power Saving Features
.
Power saving features include auto power-down to disable unused ports, smart power for short cable runs, and a port status switch to control LED lights.
.
