The Cat5e Kit connects Logitech Tap up to 40 meters away from the meeting room computer using category cabling.
Unlike USB, Cat5e supplies both data and power over a single cable, and thus eliminates the need for a separate outlet at the table to run Tap. Cat5e cabling can also be cut and crimped to exact lengths, doing away with cable coils for clutter-free deployments of Tap.
While 10 meters of cabling are included, any Cat5e or higher cabling can be used for runs of up to 40 meters. Additionally, the Cat5e Kit is compatible with a Logitech Tap Table Mount, Riser Mount, and Wall Mount, enabling convenient operation of Tap with smart cable routing.
In all, the Cat5e Kit allows for the placement of Logitech Tap nearly anywhere while maintaining a clean meeting room appearance.
Specs
| Ports & interfaces |
| RJ-45 input ports |
1 |
| RJ-45 output ports |
1 |
| Networking |
| Cable types supported |
Cat5e |
| Weight & dimensions |
| Width |
83 mm |
| Depth |
85 mm |
| Height |
29 mm |
| Power |
| Input voltage |
100 - 240 V |
| Packaging content |
| AC adapter included |
Yes |
| Packaging content |

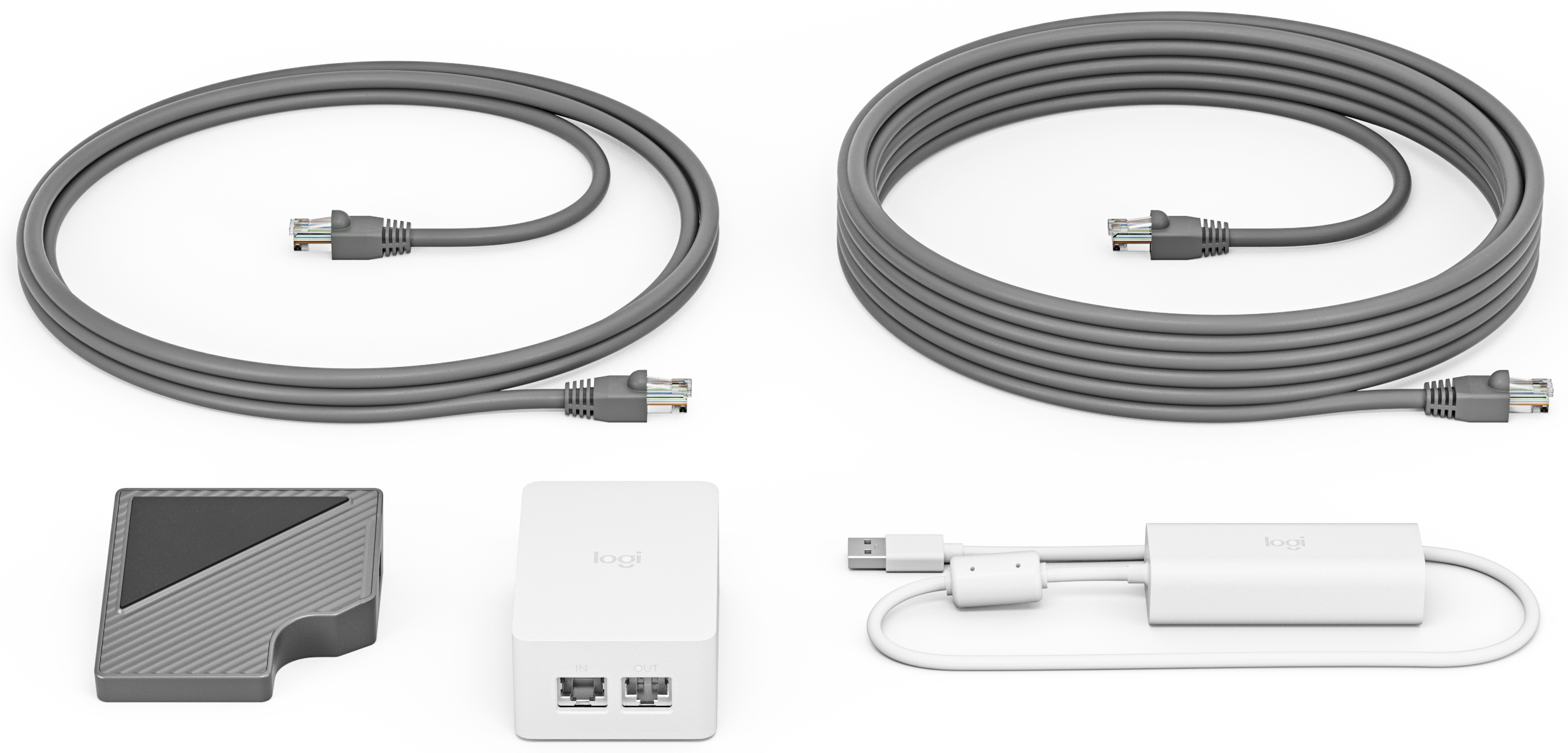

Logitech Tap Receiver
Dongle Transceiver
100-240V Power Supply with International Adaptor Set
2.97 m / 9.74 ft Cat5e Cable
7.0 m / 22.96 ft Cat5e Cable
Documentation |
| Features |
| Product colour |
Graphite |
| Maximum operating distance |
40 m |
| Logistics data |
| Harmonized System (HS) code |
85044095 |
| Master (outer) case width |
269 mm |
| Master (outer) case length |
347 mm |
| Master (outer) case height |
244 mm |
| Master (outer) case gross weight |
6.51 kg |
| Packaging data |
| Package width |
227 mm |
| Package depth |
337 mm |
| Package height |
43.5 mm |
| Package weight |
1.03 kg |
| Technical details |
| Power source type |
AC |
Features
Logitech Cat5e Kit. Cable types supported: Cat5e. Product colour: Graphite, Maximum operating distance: 40 m. Input voltage: 100 - 240 V. Width: 83 mm, Depth: 85 mm, Height: 29 mm. Package width: 227 mm, Package depth: 337 mm, Package height: 43.5 mm
Product Description
The Cat5e Kit connects Logitech Tap up to 40 meters away from the meeting room computer using category cabling.
Unlike USB, Cat5e supplies both data and power over a single cable, and thus eliminates the need for a separate outlet at the table to run Tap. Cat5e cabling can also be cut and crimped to exact lengths, doing away with cable coils for clutter-free deployments of Tap.
While 10 meters of cabling are included, any Cat5e or higher cabling can be used for runs of up to 40 meters. Additionally, the Cat5e Kit is compatible with a Logitech Tap Table Mount, Riser Mount, and Wall Mount, enabling convenient operation of Tap with smart cable routing.
In all, the Cat5e Kit allows for the placement of Logitech Tap nearly anywhere while maintaining a clean meeting room appearance.
