| Video |
| HD type |
4K Ultra HD |
| Supported video modes |
576p, 720p, 900p, 1440p, 2160p |
| Maximum frame rate |
30 fps |
| Audio |
| Built-in speaker(s) |
Y |
| Output level |
92/99 dB |
| Line-out impedance |
4 Ω |
| Output voltage Total Harmonic Distortion (THD) |
2% |
| Audio beamforming |
Y |
| Noise reduction |
Y |
| Echo cancellation |
Y |
| RMS rated power |
8 W |
| Microphone pick-up range |
4.5 m |
| Sample rates |
0 - 48 kHz |
| Operational conditions |
| Operating temperature (T-T) |
0 - 40 °C |
| Operating relative humidity (H-H) |
10 - 95% |
| Storage temperature (T-T) |
-40 - 70 °C |
| Heat dissipation |
64 BTU/h |
| Weight & dimensions |
| Width |
719 mm |
| Depth |
101 mm |
| Height |
91.4 mm |
| Weight |
4.03 kg |
| Package width |
191 mm |
| Package depth |
789 mm |
| Package height |
199 mm |
| Package weight |
5.8 kg |
| Ports & interfaces |
| HDMI ports quantity |
3 |
| HDMI output ports quantity |
2 |
| HDMI input ports quantity |
1 |
| USB connector type |
USB Type-A, USB Type-C |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity |
3 |
| Ethernet LAN (RJ-45) ports |
1 |
| DC-in jack |
Y |
| Microphone in |
Y |
| Networking |
| Ethernet LAN |
Y |
| Ethernet LAN data rates |
10,100,1000 Mbit/s |
| Wi-Fi |
Y |
| Wi-Fi standards |
802.11a, 802.11b, 802.11g, Wi-Fi 4 (802.11n), Wi-Fi 5 (802.11ac) |
| Supported network protocols |
IPv4, IPv6 |
| Security algorithms |
128-bit AES |
| Power |
| Power source type |
AC |
| AC input voltage |
100 - 240 V |
| Current |
4.754 A |
| DC input voltage |
19 V |
| Battery technology |
Lithium |
| Battery capacity |
220 mAh |
| Number of batteries supported |
2 |
| Power plug type |
Type C |
| Packaging content |
| Cables included |
AC, DC, HDMI, USB Type-A to USB Type-C |
| Power cable length |
2.5 m |
| HDMI cable length |
2 m |
| AC adapter included |
Y |
| Remote control included |
Y |
| Quick start guide |
Y |
| Packaging content |
Rally Bar Mini
Power supply
AC power cord
HDMI cable
USB cable
Remote control
Lens caps for main lens and AI Viewfinder
User documentation |
| Camera |
| Zoom capability |
Y |
| Digital zoom |
4x |
| Horizontal field of view |
113° |
| Vertical field of view |
80.7° |
| Diagonal field of view |
120° |
| Remote control interface |
Bluetooth |
| Microphone |
| Microphone sensitivity |
-36 dB |
| Microphone frequency |
90 - 16000 Hz |
| Microphone direction type |
Omnidirectional |
| Sound pressure level (max) |
90 dB |
| Number of microphones |
6 |
| Features |
| Telepresence |
N |
| Logistics data |
| Master (outer) case gross weight |
6.29 kg |
| Master (outer) case length |
804 mm |
| Master (outer) case width |
200 mm |
| Master (outer) case height |
212 mm |
| Harmonized System (HS) code |
85176990 |
| Battery |
| Battery capacity |
0.675 Wh |
| Computer system |
| Windows operating systems supported |
Windows 10, Windows 11 |
| Mac operating systems supported |
Mac OS X 11.0 Big Sur, Mac OS X 12.0 Monterey |
| Performance |
| Product type |

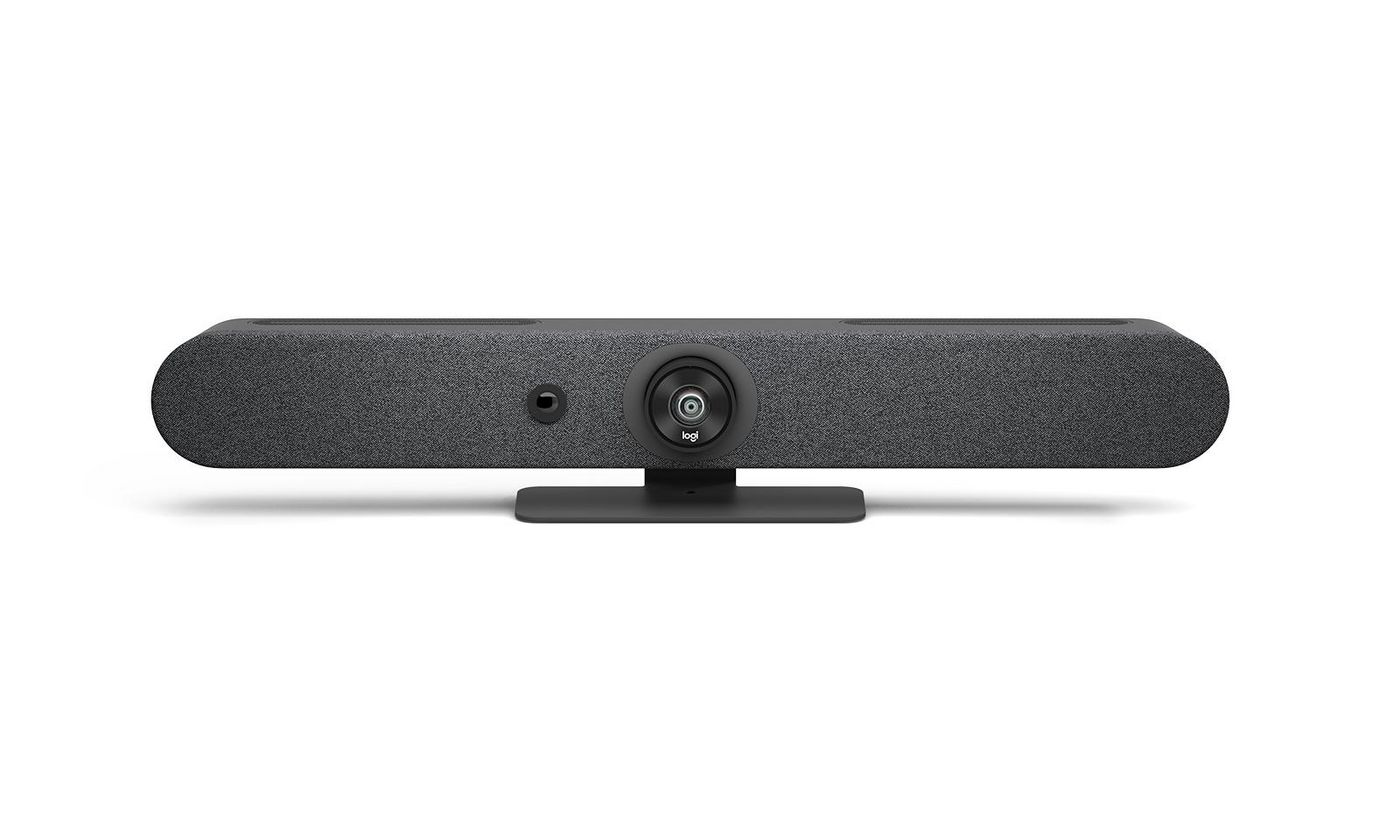

Group video conferencing system |
| Product colour |
Graphite |
| Pan range |
-25 - 25° |
| Tilt angle range |
-15 - 15° |
| PTZ control |
Y |
