Stock Status: 1x unit in stock

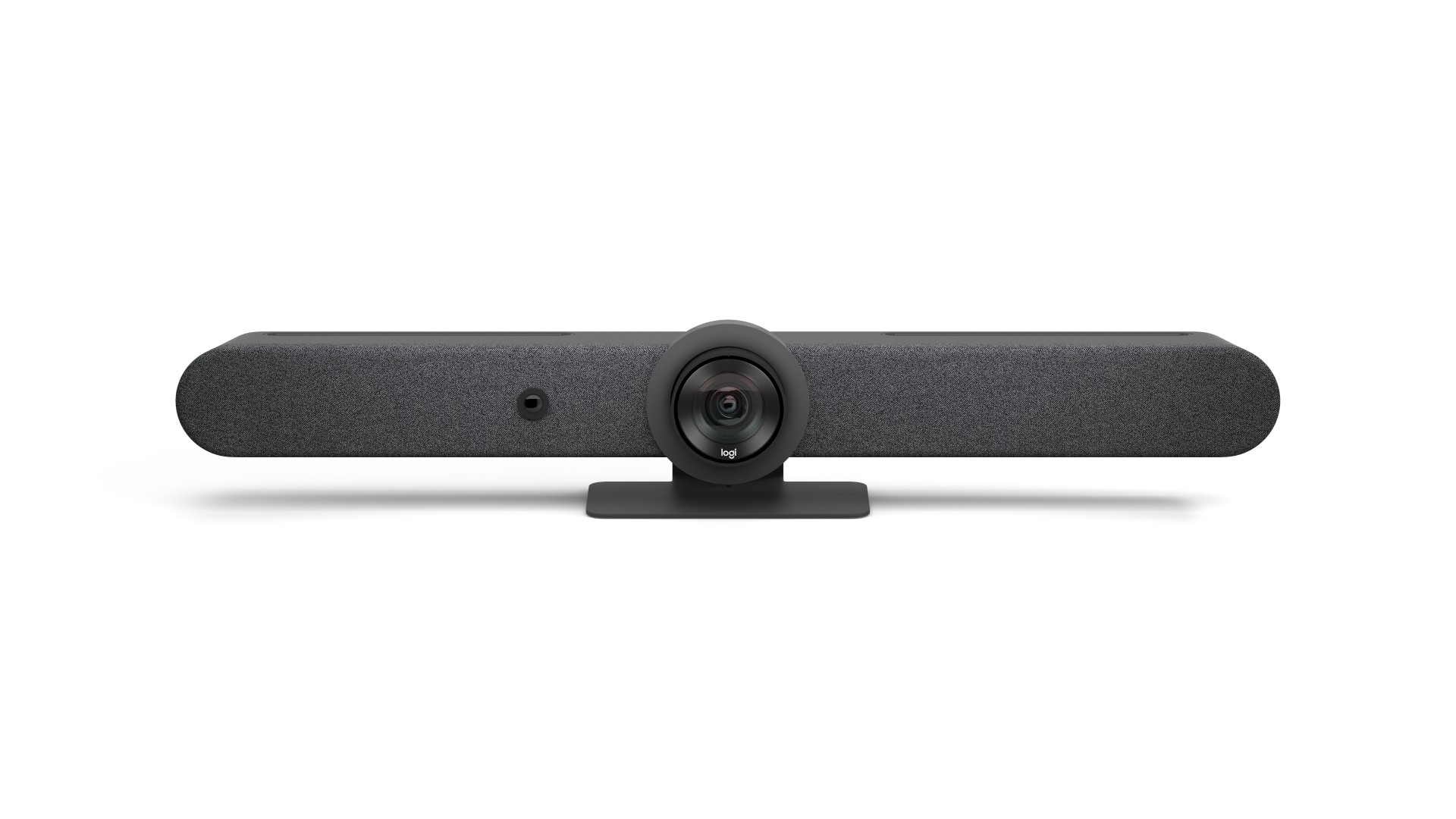

Rally Bar is Logitech’s premier, all-in-one video bar for midsize meeting rooms. With cinema-quality video and audio, AI-driven performance, and beautiful design, Rally Bar sets a new standard for video collaboration.
Rally Bar creates a natural, frictionless meeting experience with motorized PTZ and 15x optical + digital HD zoom. AI Viewfinder persistently views the room, ensuring all meeting participants are captured and framed to perfection.
Powerful low-distortion speakers and adaptive beamforming mics, optimized by RightSound™, deliver outstanding conversational accuracy. Out of the box, Rally Bar provides an expansive 15’ mic pickup range with the option to extend coverage for larger groups and settings.
Simple, versatile, and meticulously designed for scale, Rally Bar offers clutter-free cable management and multiple mounting options. Plug and play Rally Bar with virtually any PC or Mac, or run supported video conferencing applications on the device without a computer.
Specs
| Video |
| HD type |
4K Ultra HD |
| Supported video modes |
576p, 720p, 900p, 1440p, 2160p |
| Maximum frame rate |
30 fps |
| Audio |
| Built-in speaker(s) |
Yes |
| Output level |
92/99 dB |
| Line-out impedance |
4 Ω |
| Output voltage Total Harmonic Distortion (THD) |
2% |
| Audio beamforming |
Yes |
| Noise reduction |
Yes |
| Echo cancellation |
Yes |
| RMS rated power |
8 W |
| Microphone pick-up range |
4.5 m |
| Sample rates |
0 - 48 kHz |
| Operational conditions |
| Operating temperature (T-T) |
0 - 40 °C |
| Operating relative humidity (H-H) |
10 - 95% |
| Storage temperature (T-T) |
-40 - 70 °C |
| Heat dissipation |
64 BTU/h |
| Weight & dimensions |
| Width |
910 mm |
| Depth |
160 mm |
| Height |
164 mm |
| Weight |
7.08 kg |
| Package width |
207 mm |
| Package depth |
989 mm |
| Package height |
218 mm |
| Package weight |
9.29 kg |
| Ports & interfaces |
| HDMI ports quantity |
3 |
| HDMI output ports quantity |
2 |
| HDMI input ports quantity |
1 |
| USB connector type |
USB Type-A, USB Type-C |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity |
3 |
| Ethernet LAN (RJ-45) ports |
1 |
| DC-in jack |
Yes |
| Microphone in |
Yes |
| Networking |
| Ethernet LAN |
Yes |
| Ethernet LAN data rates |
10,100,1000 Mbit/s |
| Wi-Fi |
Yes |
| Wi-Fi standards |
802.11a, 802.11b, 802.11g, Wi-Fi 4 (802.11n), Wi-Fi 5 (802.11ac) |
| Supported network protocols |
IPv4, IPv6 |
| Security algorithms |
128-bit AES |
| Power |
| Power source type |
AC |
| AC input voltage |
100 - 240 V |
| Current |
4.754 A |
| DC input voltage |
19 V |
| Battery technology |
Lithium |
| Battery capacity |
220 mAh |
| Number of batteries supported |
2 |
| Power plug type |
Type G |
| Packaging content |
| Cables included |
AC, DC, HDMI, USB Type-A to USB Type-C |
| Power cable length |
2.5 m |
| HDMI cable length |
2 m |
| AC adapter included |
Yes |
| Remote control included |
Yes |
| Quick start guide |
Yes |
| Packaging content |
Rally Bar
Power supply
AC power cord
HDMI cable
USB cable
Remote control
Lens caps for main camera and AI Viewfinder
User documentation |
| Camera |
| Zoom capability |
Yes |
| Optical zoom |
5x |
| Digital zoom |
3x |
| Horizontal field of view |
82.1° |
| Vertical field of view |
52.2° |
| Diagonal field of view |
90° |
| Remote control interface |
Bluetooth |
| Microphone |
| Microphone sensitivity |
-36 dB |
| Microphone frequency |
90 - 16000 Hz |
| Microphone direction type |
Omnidirectional |
| Sound pressure level (max) |
90 dB |
| Number of microphones |
6 |
| Interface module |
| Interface module Ethernet LAN (RJ-45) ports |
1 |
| Features |
| Telepresence |
No |
| Logistics data |
| Master (outer) case gross weight |
9.9 kg |
| Master (outer) case length |
1004 mm |
| Master (outer) case width |
220 mm |
| Master (outer) case height |
231 mm |
| Harmonized System (HS) code |
85176990 |
| Battery |
| Battery capacity |
0.675 Wh |
| Computer system |
| Windows operating systems supported |
Windows 10, Windows 11 |
| Mac operating systems supported |
Mac OS X 11.0 Big Sur, Mac OS X 12.0 Monterey |
| Performance |
| Product type |
Group video conferencing system |
| Product colour |
Graphite |
| Pan range |
-25 - 25° |
| Tilt angle range |
-15 - 15° |
| PTZ control |
Yes |
Features
Logitech Rally Bar. Product type: Group video conferencing system. HD type: 4K Ultra HD, Supported video modes: 576p, 720p, 900p, 1440p, 2160p, Maximum frame rate: 30 fps. Optical zoom: 5x, Digital zoom: 3x. Ethernet LAN, Wi-Fi. Product colour: Graphite
Product Description
Rally Bar is Logitech’s premier, all-in-one video bar for midsize meeting rooms. With cinema-quality video and audio, AI-driven performance, and beautiful design, Rally Bar sets a new standard for video collaboration.
Rally Bar creates a natural, frictionless meeting experience with motorized PTZ and 15x optical + digital HD zoom. AI Viewfinder persistently views the room, ensuring all meeting participants are captured and framed to perfection.
Powerful low-distortion speakers and adaptive beamforming mics, optimized by RightSound™, deliver outstanding conversational accuracy. Out of the box, Rally Bar provides an expansive 15’ mic pickup range with the option to extend coverage for larger groups and settings.
Simple, versatile, and meticulously designed for scale, Rally Bar offers clutter-free cable management and multiple mounting options. Plug and play Rally Bar with virtually any PC or Mac, or run supported video conferencing applications on the device without a computer.
