Stock Status: 1x unit in stock
POWER-OVER-ETHERNET
4 PoE+ ports delivering up to 30W per port with a 63W total power budget for wireless APs, IP Cameras, IP Phones and much more.
PLUG-AND-PLAY
Simple set up with no software to install or configuration needed
NON-BLOCKING SWITCHING
Non-blocking switching architecture for maximum throughput at wire speed
FANLESS DESIGN
Silent operation makes this switch perfect for noise-sensitive environments
VERSITILE MOUNTING OPTIONS
Install your switch on your desktop or mount it to your wall with the hardware provided in the box
ENERGY EFFICIENT
Energy Efficient Ethernet (IEEE 802.3az) standard, which reduces energy consumption when there is light traffic on an active port or when there is no link or no activity detected Flex PoE
Specs
| Ports & interfaces |
| Basic switching RJ-45 Ethernet ports quantity |
5 |
| Basic switching RJ-45 Ethernet ports type |
Gigabit Ethernet (10/100/1000) |
| Networking |
| Networking standards |
IEEE 802.1p, IEEE 802.3af, IEEE 802.3at, IEEE 802.3az |
| 10G support |
No |
| Copper ethernet cabling technology |
1000BASE-T, 100BASE-T, 10BASE-T |
| Port mirroring |
Yes |
| Full duplex |
Yes |
| Flow control support |
Yes |
| Link aggregation |
Yes |
| Broadcast storm control |
Yes |
| Rate limiting |
Yes |
| VLAN support |
Yes |
| Power |
| Power source |
AC/DC |
| Power supply included |
No |
| DC input voltage |
54 V |
| Input current |
1.66 A |
| Power consumption (max) |
67.5 W |
| Operational conditions |
| Operating temperature (T-T) |
0 - 40 °C |
| Storage temperature (T-T) |
-20 - 70 °C |
| Operating relative humidity (H-H) |
0 - 90% |
| Storage relative humidity (H-H) |
0 - 95% |
| Operating altitude |
0 - 3000 m |
| Heat dissipation |
3.24 BTU/h |
| Weight & dimensions |
| Width |
158 mm |
| Depth |
101 mm |
| Height |
27 mm |
| Weight |
400 g |
| Security |
| DHCP features |
DHCP client |
| IGMP snooping |
Yes |
| Data transmission |
| MAC address table |
2000 entries |
| Store-and-forward |
Yes |
| Jumbo frames support |
Yes |
| Jumbo frames |
9216 |
| Packet buffer memory |
0.128 MB |
| Management features |
| Switch type |
Unmanaged |
| Quality of Service (QoS) support |
Yes |
| Other features |
| Bandwidth |
10 Gbit/s |
| Power over Ethernet (PoE) |
| Power over Ethernet (PoE) |
Yes |
| Power over Ethernet (PoE) ports quantity |
4 |
| Power over Ethernet (PoE) power per port |
30 W |
| Total Power over Ethernet (PoE) budget |
83 W |
| Design |
| Rack mounting |
No |
| Stackable |
No |
| Form factor |
Desktop/Wall-Mounting |
| Product colour |
Grey |
| Housing material |
Metal |
| LED indicators |
Activity, Link, PoE, Power, Speed, Status |
| Performance |
| Fanless |
Yes |
| Mean time between failures (MTBF) |
4113947 h |
| Certification |
| Compliance certificates |
CB, CE, Federal Communications Commission (FCC) |
| Certification |
CB, CE LVD, CSA |
| Packaging content |
| Quick start guide |
Yes |
Features

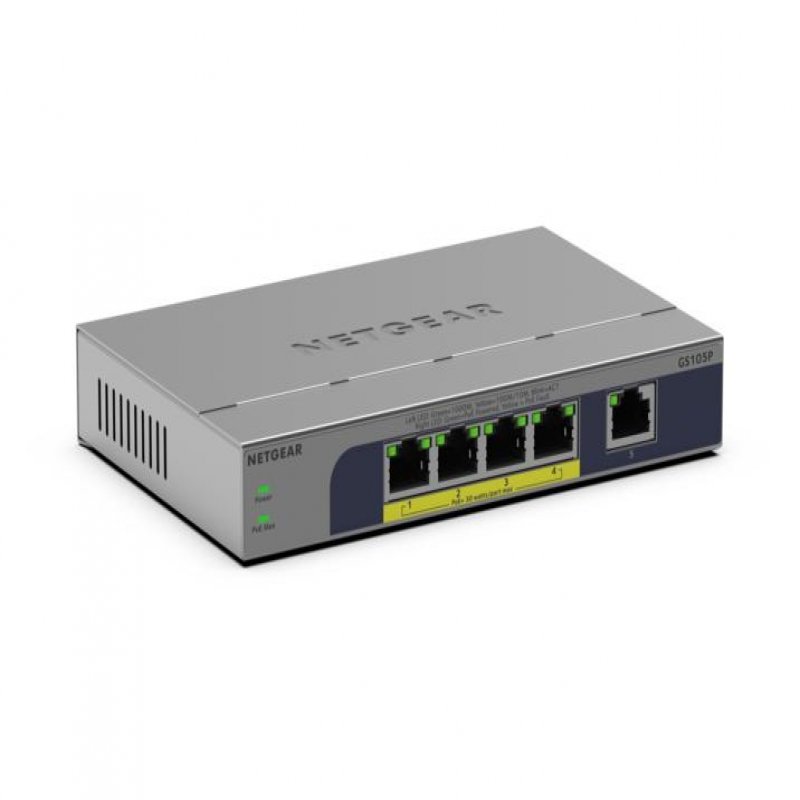

NETGEAR GS105P. Switch type: Unmanaged. Basic switching RJ-45 Ethernet ports type: Gigabit Ethernet (10/100/1000), Basic switching RJ-45 Ethernet ports quantity: 5. Full duplex. MAC address table: 2000 entries. Networking standards: IEEE 802.1p, IEEE 802.3af, IEEE 802.3at, IEEE 802.3az. DC input voltage: 54 V. Power over Ethernet (PoE). Form factor: Desktop/Wall-Mounting
Product Description
POWER-OVER-ETHERNET
4 PoE+ ports delivering up to 30W per port with a 63W total power budget for wireless APs, IP Cameras, IP Phones and much more.
PLUG-AND-PLAY
Simple set up with no software to install or configuration needed
NON-BLOCKING SWITCHING
Non-blocking switching architecture for maximum throughput at wire speed
FANLESS DESIGN
Silent operation makes this switch perfect for noise-sensitive environments
VERSITILE MOUNTING OPTIONS
Install your switch on your desktop or mount it to your wall with the hardware provided in the box
ENERGY EFFICIENT
Energy Efficient Ethernet (IEEE 802.3az) standard, which reduces energy consumption when there is light traffic on an active port or when there is no link or no activity detected Flex PoE
