Stock Status: 1x unit in stock

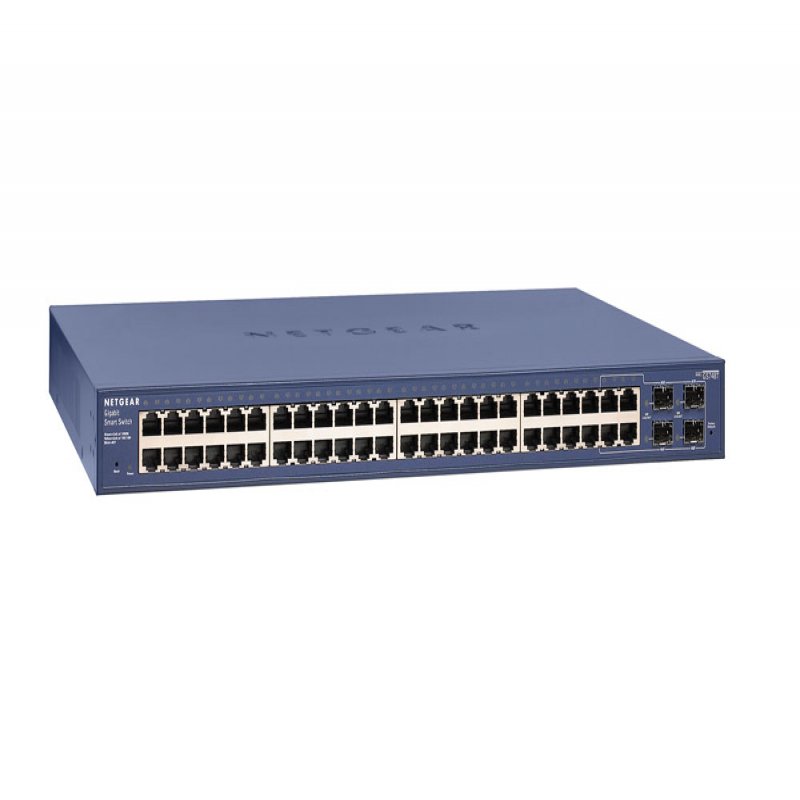

High Port Density Gigabit with Browser-based Management Included
Joining NETGEAR’s family of Smart Switches with simple switch management at no extra cost, this 1U high, 48-port Gigabit switch maximizes bandwidth and density for great value and capability. With 48 10/100/1000 Mbps ports, each capable of powering 2000 Mbps of data throughput in full-duplex mode, plus four optional fiber ports, it provides a 96 Gbps backbone and connects servers or power users, delivering large amounts of multimedia, image, and video information in no time at all. Standards-based, it is ideal for combining 10, 100, and 1000 Mbps devices, as it delivers automatic speed and full/half-duplex sensing plus Auto Uplink™ on every port. Four hot-swappable small form-factor pluggable (SFP)** GBIC slots provide optional fiber connectivity for greater distance. An intuitive, Web-browser interface offers simple switch management, making it a snap to monitor switch performance, configure ports, even setup trunks, VLANs, and prioritization.
High Density
48 10/100/1000 Mbps ports deliver full-speed packet forwarding in a 1U size to migrate your network to future-proof functionality. Four SFP GBIC fiber slots provide optional fiber connectivity for greater distance.
Intelligent
Smart Switch capability enables key management features for the value price of an unmanaged switch. Included are performance monitoring, port configuration, VLAN for traffic control, port trunking for increased bandwidth, and Class of Service (CoS) for traffic prioritization.
Right Sized
Ideal for growing businesses who want the benefits of management without the cost. Compatible with Windows, MAC and Linux operating systems.***
Easygoing and Durable
Simple to set up and simple to use for effortless network monitoring and troubleshooting. Made to last, this sturdy switch is housed in a 17-inch metal box and comes with a rack-mounting kit.
Like all NETGEAR ProSafe Smart Switches, the GS748T is backed by the NETGEAR ProSafe
Specs
| Ports & interfaces |
| Basic switching RJ-45 Ethernet ports quantity |
48 |
| Basic switching RJ-45 Ethernet ports type |
Gigabit Ethernet (10/100/1000) |
| Installed SFP modules quantity |
0 |
| Installed SFP+ modules quantity |
0 |
| Combo SFP ports quantity |
2 |
| SFP module slots quantity |
2 |
| Power connector |
DC-in jack |
| Networking |
| Networking standards |
IEEE 802.3, IEEE 802.3ab, IEEE 802.3u, IEEE 802.3x |
| 10G support |
No |
| Full duplex |
Yes |
| Flow control support |
Yes |
| Link aggregation |
Yes |
| Rate limiting |
Yes |
| Spanning tree protocol |
Yes |
| VLAN support |
Yes |
| Number of VLANs |
64 |
| Power |
| Power source |
AC |
| AC input voltage |
100 - 240 V |
| AC input frequency |
50 - 60 Hz |
| Power consumption (typical) |
66 W |
| Power consumption (max) |
70 W |
| Operational conditions |
| Operating temperature (T-T) |
0 - 40 °C |
| Storage temperature (T-T) |
-10 - 70 °C |
| Operating relative humidity (H-H) |
0 - 90% |
| Storage relative humidity (H-H) |
0 - 95% |
| Operating altitude |
0 - 3000 m |
| Non-operating altitude |
0 - 3000 m |
| Weight & dimensions |
| Width |
305 mm |
| Depth |
43 mm |
| Height |
440 mm |
| Weight |
4.9 kg |
| Security |
| DHCP features |
DHCP client |
| Access Control List (ACL) |
Yes |
| Data transmission |
| MAC address table |
8000 entries |
| Latency (10-100 Mbps) |
20 µs |
| Jumbo frames support |
Yes |
| Packet buffer memory |
1.632 MB |
| Management features |
| Switch type |
Managed |
| Switch layer |
L2+ |
| Quality of Service (QoS) support |
Yes |
| Web-based management |
Yes |
| Power over Ethernet (PoE) |
| Power over Ethernet (PoE) |
No |
| Design |
| Rack mounting |
Yes |
| Product colour |
Blue |
| Safety |
UL listed (UL 1950)/cUL, IEC 950/EN 60950 |
| Performance |
| Compatible operating systems |
Windows, MAC, Linux |
| Noise level |
52 dB |
| Mean time between failures (MTBF) |
108000 h |
| Logistics data |
| Harmonized System (HS) code |
85176990 |
| Certification |
| Certification |
CE mark, commercial
FCC Part 15 Class A
VCCI Class A
EN 55022 (CISPR 22), Class A
EN 50082-1
EN 55024
C-Tick |
| Packaging content |
| Cables included |
LAN (RJ-45) |
| Quick start guide |
Yes |
| User guide |
Yes |
| Manual |
Yes |
Features
NETGEAR GS748T. Switch type: Managed, Switch layer: L2+. Basic switching RJ-45 Ethernet ports type: Gigabit Ethernet (10/100/1000), Basic switching RJ-45 Ethernet ports quantity: 48. Full duplex. MAC address table: 8000 entries. Networking standards: IEEE 802.3, IEEE 802.3ab, IEEE 802.3u, IEEE 802.3x. Power connector: DC-in jack. Rack mounting
Product Description
High Port Density Gigabit with Browser-based Management Included
Joining NETGEAR’s family of Smart Switches with simple switch management at no extra cost, this 1U high, 48-port Gigabit switch maximizes bandwidth and density for great value and capability. With 48 10/100/1000 Mbps ports, each capable of powering 2000 Mbps of data throughput in full-duplex mode, plus four optional fiber ports, it provides a 96 Gbps backbone and connects servers or power users, delivering large amounts of multimedia, image, and video information in no time at all. Standards-based, it is ideal for combining 10, 100, and 1000 Mbps devices, as it delivers automatic speed and full/half-duplex sensing plus Auto Uplink™ on every port. Four hot-swappable small form-factor pluggable (SFP)** GBIC slots provide optional fiber connectivity for greater distance. An intuitive, Web-browser interface offers simple switch management, making it a snap to monitor switch performance, configure ports, even setup trunks, VLANs, and prioritization.
High Density
48 10/100/1000 Mbps ports deliver full-speed packet forwarding in a 1U size to migrate your network to future-proof functionality. Four SFP GBIC fiber slots provide optional fiber connectivity for greater distance.
Intelligent
Smart Switch capability enables key management features for the value price of an unmanaged switch. Included are performance monitoring, port configuration, VLAN for traffic control, port trunking for increased bandwidth, and Class of Service (CoS) for traffic prioritization.
Right Sized
Ideal for growing businesses who want the benefits of management without the cost. Compatible with Windows, MAC and Linux operating systems.***
Easygoing and Durable
Simple to set up and simple to use for effortless network monitoring and troubleshooting. Made to last, this sturdy switch is housed in a 17-inch metal box and comes with a rack-mounting kit.
Like all NETGEAR ProSafe Smart Switches, the GS748T is backed by the NETGEAR ProSafe
