Stock Status: 1x unit in stock
Pre-configured for out-of-the-box use
NETGEAR IGMP Plus™ enables instant multicast functionality for most AV over IP installations
Dedicated AV web-based GUI interface
Unique interface designed for the AV professional with color-coded, port-based profiles
Profiles for common audio protocols
Quickly assign profiles to ports for Dante, AES67, and AVB audio configurations. AVB Requires a separate license
Video profiles built-in
Special profiles for NVX, SVSI, Q-SYS and Dante video profiles can be easily assigned to ports as needed
Unique Automatic Configuration
Auto-trunk and auto-lag functionality automatically configures other M4250 switches for use in star topology.
Multi-switch audio or single-switch video deployments
24x1G PoE+ with 300W PoE budget with 2x1G additional ports and 4xSFP 1G fiber uplinks
Layer 2/Layer 3 Switching
Common Layer 2 and Layer 3 switching engine across all M4250 models
Control methods abound
Built-in IT web GUI, console, telnet and SSH consistent with other NETGEAR M4xxx series
Standard network features
Feature set includes static, RIP and PIM routing, DHCP Server and PTPv2
Specs
| Ports & interfaces |
| Basic switching RJ-45 Ethernet ports quantity |
30 |
| Basic switching RJ-45 Ethernet ports type |
Gigabit Ethernet (10/100/1000) |
| SFP module slots quantity |
4 |
| Power |
| Power supply included |
Yes |
| Power consumption (typical) |
401 W |
| Weight & dimensions |
| Width |
440 mm |
| Depth |
257 mm |
| Height |
43.2 mm |
| Weight |
4.3 kg |
| Packaging data |
| Rack rails |
Yes |
| Data transmission |
| Jumbo frames support |
Yes |
| Jumbo frames |
12000 |
| Management features |
| Switch type |
Managed |
| Switch layer |
L2/L3 |
| Power over Ethernet (PoE) |
| Power over Ethernet (PoE) |
Yes |
| Power over Ethernet plus (PoE+) ports quantity |
24 |
| Power over Ethernet (PoE) power per port |
30 W |
| Total Power over Ethernet (PoE) budget |
300 W |
| Design |
| Rack mounting |
Yes |
| Form factor |
1U |
| Product colour |
Black |
| Performance |
| Noise level |
34 dB |
| Fanless |
Yes |
| Logistics data |
| Harmonized System (HS) code |
85176990 |
| Packaging content |
| Cables included |
AC, LAN (RJ-45), USB Type-C |
| User guide |
Yes |
Features

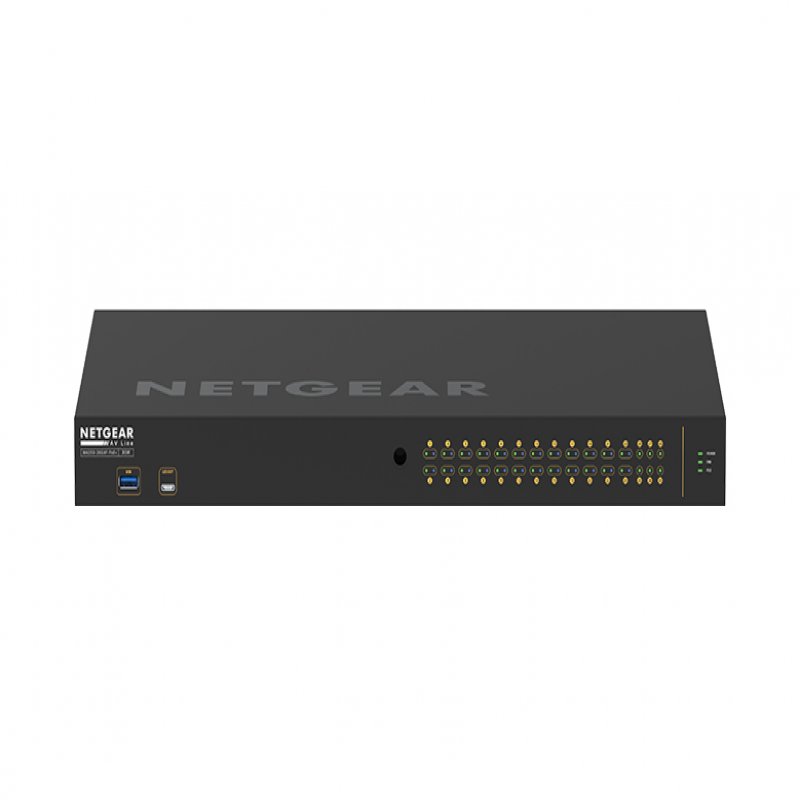

NETGEAR GSM4230P-100EUS. Switch type: Managed, Switch layer: L2/L3. Basic switching RJ-45 Ethernet ports type: Gigabit Ethernet (10/100/1000), Basic switching RJ-45 Ethernet ports quantity: 30. Power over Ethernet (PoE). Rack mounting, Form factor: 1U
Product Description
Pre-configured for out-of-the-box use
NETGEAR IGMP Plus™ enables instant multicast functionality for most AV over IP installations
Dedicated AV web-based GUI interface
Unique interface designed for the AV professional with color-coded, port-based profiles
Profiles for common audio protocols
Quickly assign profiles to ports for Dante, AES67, and AVB audio configurations. AVB Requires a separate license
Video profiles built-in
Special profiles for NVX, SVSI, Q-SYS and Dante video profiles can be easily assigned to ports as needed
Unique Automatic Configuration
Auto-trunk and auto-lag functionality automatically configures other M4250 switches for use in star topology.
Multi-switch audio or single-switch video deployments
24x1G PoE+ with 300W PoE budget with 2x1G additional ports and 4xSFP 1G fiber uplinks
Layer 2/Layer 3 Switching
Common Layer 2 and Layer 3 switching engine across all M4250 models
Control methods abound
Built-in IT web GUI, console, telnet and SSH consistent with other NETGEAR M4xxx series
Standard network features
Feature set includes static, RIP and PIM routing, DHCP Server and PTPv2
