Stock Status: 1x unit in stock

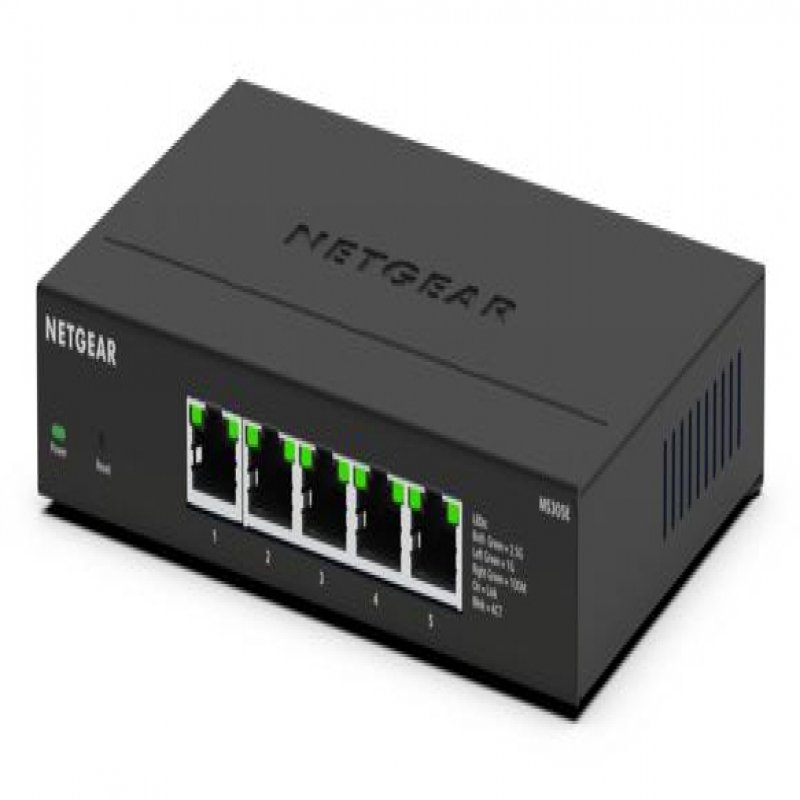

NETGEAR 5-port 2.5G Multi-Gigabit Ethernet Plus Switch
MULTI-GIGABIT ETHERNET
5 ports provide up to 2.5 Gbps of dedicated, non-blocking bandwidth each
NON-BLOCKING SWITCHING
25Gbps (10/100/1000 Mbps) line rate fabric ensures congestion-free connectivity to your devices
AUTO-NEGOTIATION
Automatic connection at the highest common speed between the switch and an end device
FANLESS DESIGN
Silent operation makes this switch perfect for noise-sensitive environments
VERSITILE MOUNTING OPTIONS
Install your switch on your desktop or mount it to your wall with the hardware provided in the box
ENERGY EFFICIENT
Energy Efficient Ethernet (IEEE 802.3az) standard, which reduces energy consumption when there is light traffic on an active port or when there is no link or no activity detected
Specs
| Ports & interfaces |
| Basic switching RJ-45 Ethernet ports quantity |
5 |
| Basic switching RJ-45 Ethernet ports type |
2.5G Ethernet (100/1000/2500) |
| Networking |
| Networking standards |
IEEE 802.1p, IEEE 802.3, IEEE 802.3ab, IEEE 802.3az, IEEE 802.3bz, IEEE 802.3u, IEEE 802.3x |
| 10G support |
No |
| Full duplex |
Yes |
| Half duplex |
Yes |
| Auto MDI/MDI-X |
Yes |
| Head-of-line (HOL) blocking |
Yes |
| Ethernet LAN data rates |
100,1000,2500 Mbit/s |
| Cable length detection |
Yes |
| Power |
| Power source |
DC |
| Power supply included |
Yes |
| DC input voltage |
12 V |
| Input current |
1 A |
| Input voltage |
12 V |
| Power consumption (max) |
5.6 W |
| Operational conditions |
| Operating temperature (T-T) |
0 - 40 °C |
| Storage temperature (T-T) |
-20 - 70 °C |
| Operating relative humidity (H-H) |
0 - 90% |
| Storage relative humidity (H-H) |
0 - 95% |
| Operating altitude |
0 - 3000 m |
| Weight & dimensions |
| Width |
158 mm |
| Depth |
101 mm |
| Height |
27 mm |
| Weight |
450 g |
| Data transmission |
| MAC address table |
16000 entries |
| Switching capacity |
40 Gbit/s |
| Forwarding rate |
3.72 Mpps |
| Latency (1 Gbps) |
4.9 µs |
| Jumbo frames support |
Yes |
| Jumbo frames |
12288 |
| Packet buffer memory |
1 MB |
| Management features |
| Switch type |
Unmanaged |
| Quality of Service (QoS) support |
Yes |
| Other features |
| Warranty period |
5 year(s) |
| Power over Ethernet (PoE) |
| Power over Ethernet (PoE) |
No |
| Design |
| Rack mounting |
No |
| Stackable |
No |
| Product colour |
Black |
| Housing material |
Metal |
| LED indicators |
Yes |
| Wall mountable |
Yes |
| Number of fans |
0 fan(s) |
| Performance |
| Noise level |
0 dB |
| Fanless |
Yes |
| Mean time between failures (MTBF) |
4273003 h |
| Certification |
| Compliance certificates |
CCC, Low Voltage Directive (LVD) |
Features
NETGEAR MS305E. Switch type: Unmanaged. Basic switching RJ-45 Ethernet ports type: 2.5G Ethernet (100/1000/2500), Basic switching RJ-45 Ethernet ports quantity: 5. Full duplex. MAC address table: 16000 entries, Switching capacity: 40 Gbit/s. Networking standards: IEEE 802.1p, IEEE 802.3, IEEE 802.3ab, IEEE 802.3az, IEEE 802.3bz, IEEE 802.3u, IEEE 802.3x. DC input voltage: 12 V. Wall mountable
Product Description
NETGEAR 5-port 2.5G Multi-Gigabit Ethernet Plus Switch
MULTI-GIGABIT ETHERNET
5 ports provide up to 2.5 Gbps of dedicated, non-blocking bandwidth each
NON-BLOCKING SWITCHING
25Gbps (10/100/1000 Mbps) line rate fabric ensures congestion-free connectivity to your devices
AUTO-NEGOTIATION
Automatic connection at the highest common speed between the switch and an end device
FANLESS DESIGN
Silent operation makes this switch perfect for noise-sensitive environments
VERSITILE MOUNTING OPTIONS
Install your switch on your desktop or mount it to your wall with the hardware provided in the box
ENERGY EFFICIENT
Energy Efficient Ethernet (IEEE 802.3az) standard, which reduces energy consumption when there is light traffic on an active port or when there is no link or no activity detected
