Stock Status: 1x unit in stock

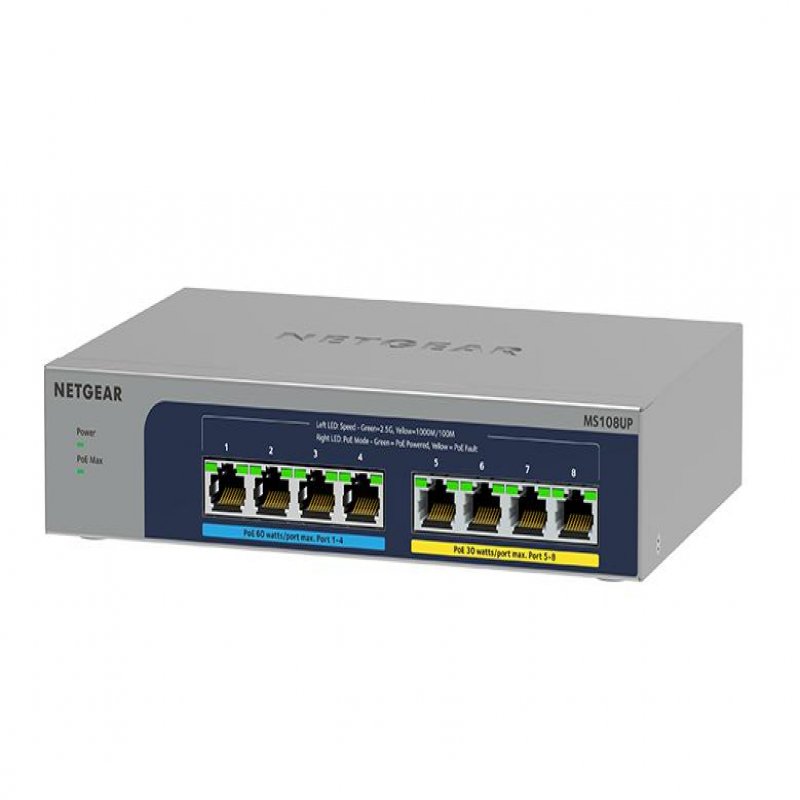

NETGEAR brings the first Unmanaged
Multi-Gigabit PoE++ switch MS108UP with 60Watts per port Ultra60 PoE++ technology, ideal for powerful PoE++ installations with PoE budgets up to 230W, a compact size, plug-and-play
installation, and reliable performance at affordable prices. The new model MS108UP supports 2.5 Gigabit speed connectivity and Power-Over-Ethernet (PoE) that can provide up to 60W/port. The new switch model can power devices such as VoIP phones, surveillance IP cameras, wireless access
points and many other applications. This new Unmanaged switch provides PoE Auto-Balance to help automatically balance the PoE power based on the device needs independent of PoE class detected. With the growing deployment of applications and an allin-one solution, providing multi-speed and high power to these applications would be ideal.
Specs
| Ports & interfaces |
| Basic switching RJ-45 Ethernet ports quantity |
8 |
| Basic switching RJ-45 Ethernet ports type |
2.5G Ethernet (100/1000/2500) |
| 2.5G Ethernet (copper) ports quantity |
8 |
| Networking |
| Networking standards |
IEEE 802.1p, IEEE 802.3, IEEE 802.3ab, IEEE 802.3af, IEEE 802.3at, IEEE 802.3az, IEEE 802.3bt, IEEE 802.3u, IEEE 802.3x |
| 10G support |
No |
| Full duplex |
Yes |
| Half duplex |
Yes |
| Auto MDI/MDI-X |
Yes |
| Head-of-line (HOL) blocking |
Yes |
| Ethernet LAN data rates |
100,1000,2500 Mbit/s |
| Auto-sensing |
Yes |
| VLAN support |
Yes |
| Number of VLANs |
64 |
| Power |
| Power source |
DC |
| Power supply included |
Yes |
| DC input voltage |
54 V |
| Input current |
4.7 A |
| Operational conditions |
| Operating temperature (T-T) |
0 - 40 °C |
| Storage temperature (T-T) |
-20 - 70 °C |
| Operating relative humidity (H-H) |
0 - 90% |
| Operating altitude |
0 - 3000 m |
| Heat dissipation |
923.49 BTU/h |
| Weight & dimensions |
| Width |
210 mm |
| Depth |
140 mm |
| Height |
40 mm |
| Weight |
900 g |
| Data transmission |
| MAC address table |
16000 entries |
| Switching capacity |
40 Gbit/s |
| Latency (1 Gbps) |
3.593 µs |
| Jumbo frames support |
Yes |
| Jumbo frames |
12000 |
| Packet forwarding rate (1 Gbps) |
1488000 pps |
| Packet buffer memory |
1.5 MB |
| Management features |
| Switch type |
Unmanaged |
| Quality of Service (QoS) support |
Yes |
| Power over Ethernet (PoE) |
| Power over Ethernet (PoE) |
Yes |
| Power over Ethernet plus (PoE+) ports quantity |
8 |
| Total Power over Ethernet (PoE) budget |
230 W |
| Design |
| Rack mounting |
No |
| Housing material |
Metal |
| LED indicators |
Activity, Link, PoE, Power |
| Wall mountable |
Yes |
| Number of fans |
0 fan(s) |
| Electromagnetic compatibility |
CE, FCC part 15 Class B, ISED, VCCI, KC, CCC, BSMI, RCM |
| Performance |
| Fanless |
Yes |
| Mean time between failures (MTBF) |
373643.7 h |
| Logistics data |
| Harmonized System (HS) code |
85176990 |
| Certification |
| Certification |
CB, CSA, CCC, BSMI, RCM |
Features
NETGEAR MS108UP. Switch type: Unmanaged. Basic switching RJ-45 Ethernet ports type: 2.5G Ethernet (100/1000/2500), Basic switching RJ-45 Ethernet ports quantity: 8. Full duplex. MAC address table: 16000 entries, Switching capacity: 40 Gbit/s. Networking standards: IEEE 802.1p, IEEE 802.3, IEEE 802.3ab, IEEE 802.3af, IEEE 802.3at, IEEE 802.3az, IEEE 802.3bt,.... DC input voltage: 54 V. Power over Ethernet (PoE). Wall mountable
Product Description
NETGEAR brings the first Unmanaged
Multi-Gigabit PoE++ switch MS108UP with 60Watts per port Ultra60 PoE++ technology, ideal for powerful PoE++ installations with PoE budgets up to 230W, a compact size, plug-and-play
installation, and reliable performance at affordable prices. The new model MS108UP supports 2.5 Gigabit speed connectivity and Power-Over-Ethernet (PoE) that can provide up to 60W/port. The new switch model can power devices such as VoIP phones, surveillance IP cameras, wireless access
points and many other applications. This new Unmanaged switch provides PoE Auto-Balance to help automatically balance the PoE power based on the device needs independent of PoE class detected. With the growing deployment of applications and an allin-one solution, providing multi-speed and high power to these applications would be ideal.
