Stock Status: 1x unit in stock

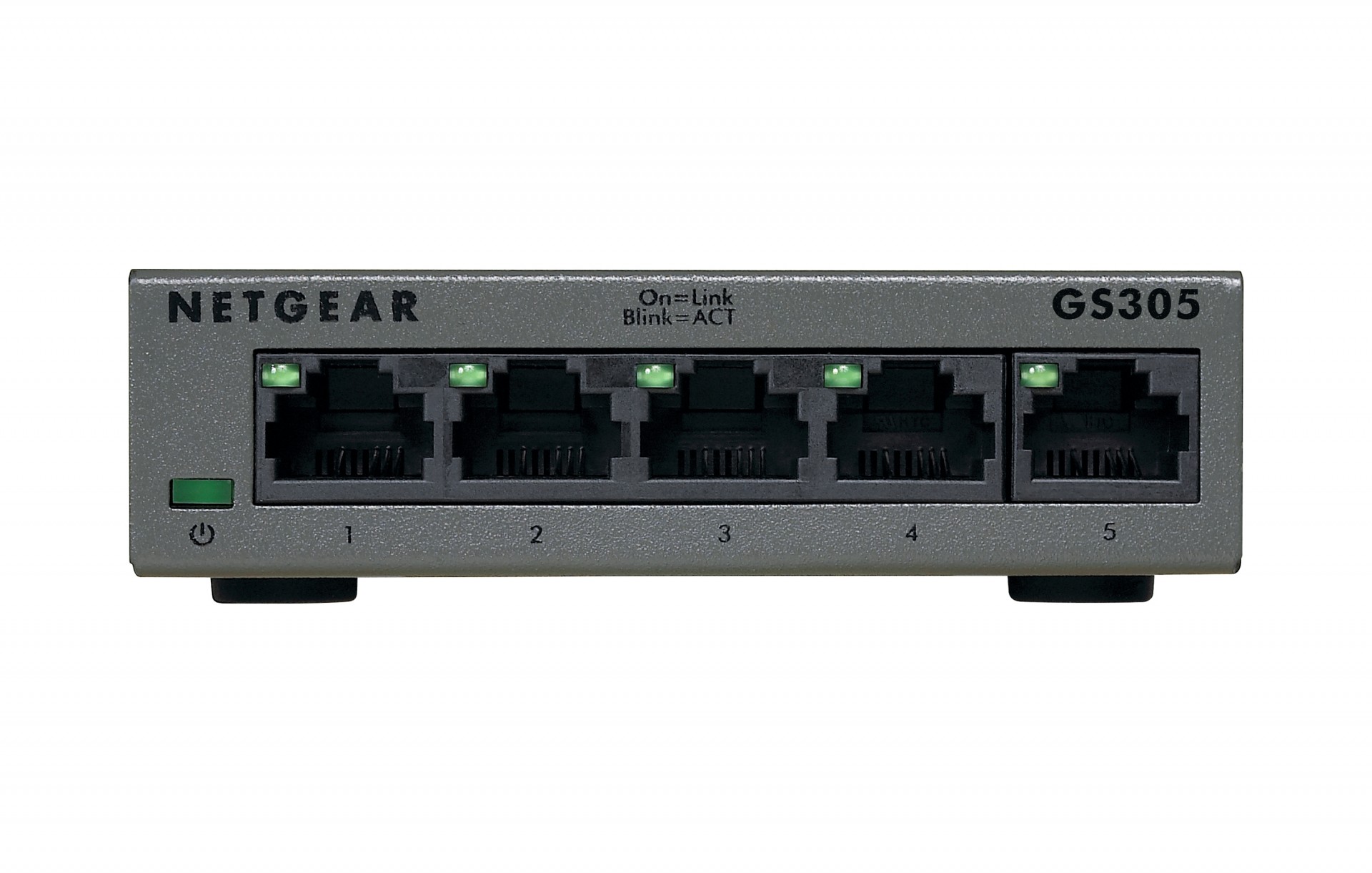

SOHO Ethernet Switch Series
Expanding Wired Connectivity for SOHO Networks
The NETGEAR SOHO Ethernet Unmanaged Switches provide easy and affordable network connectivity to small offices and home/offices. They are easy to use, reliable, and rugged with metal enclosures. Power-over-Ethernet (PoE) support is also available for supplying both power and data across a single CAT-5 ethernet cable to devices such as IP security cameras, VoIP phones, wireless access points, etc. With these Plug-and-Play switches, you can quickly and easily expand your network connections to multiple devices, with no configuration required. Available with 5 ports to 48 ports, these switches also support energy saving technologies to help you save power and money.
Specs
| Ports & interfaces |
| Basic switching RJ-45 Ethernet ports quantity |
5 |
| Basic switching RJ-45 Ethernet ports type |
Gigabit Ethernet (10/100/1000) |
| Gigabit Ethernet (copper) ports quantity |
5 |
| Networking |
| Networking standards |
IEEE 802.3ab, IEEE 802.3az, IEEE 802.3i, IEEE 802.3u, IEEE 802.3x |
| 10G support |
Yes |
| Full duplex |
Yes |
| Auto MDI/MDI-X |
Yes |
| Power |
| DC input voltage |
5 V |
| Input current |
0.7 A |
| Power consumption (max) |
2.15 W |
| Operational conditions |
| Operating temperature (T-T) |
0 - 40 °C |
| Storage temperature (T-T) |
-20 - 70 °C |
| Operating relative humidity (H-H) |
0 - 90% |
| Storage relative humidity (H-H) |
0 - 95% |
| Operating altitude |
0 - 3000 m |
| Heat dissipation |
7.35 BTU/h |
| Weight & dimensions |
| Width |
101 mm |
| Depth |
94 mm |
| Height |
29 mm |
| Weight |
250 g |
| Security |
| Queue scheduling algorithms |
Weighted Round Robin (WRR) |
| Packaging data |
| Package width |
142 mm |
| Package depth |
238 mm |
| Package height |
64 mm |
| Package weight |
484 g |
| Data transmission |
| MAC address table |
2000 entries |
| Switching capacity |
10 Gbit/s |
| Latency (1 Gbps) |
2.6 µs |
| Jumbo frames support |
Yes |
| Jumbo frames |
9216 |
| Packet forwarding rate (1 Gbps) |
1448000 pps |
| Packet buffer memory |
0.128 MB |
| Management features |
| Switch type |
Unmanaged |
| Quality of Service (QoS) support |
Yes |
| Power over Ethernet (PoE) |
| Power over Ethernet (PoE) |
No |
| Design |
| Rack mounting |
No |
| Stackable |
No |
| Product colour |
Black |
| Housing material |
Metal |
| LED indicators |
Activity, Link, Power |
| Wall mountable |
Yes |
| Performance |
| Fanless |
Yes |
| Mean time between failures (MTBF) |
3831422 h |
| Logistics data |
| Harmonized System (HS) code |
85176990 |
| Certification |
| Certification |
CE Mark, FCC Part 15 Class B, IC Class B, RCM, VCCI, CB, CE LVD |
Features
NETGEAR SOHO. Switch type: Unmanaged. Basic switching RJ-45 Ethernet ports type: Gigabit Ethernet (10/100/1000), Basic switching RJ-45 Ethernet ports quantity: 5. Full duplex. MAC address table: 2000 entries, Switching capacity: 10 Gbit/s. Networking standards: IEEE 802.3ab, IEEE 802.3az, IEEE 802.3i, IEEE 802.3u, IEEE 802.3x. DC input voltage: 5 V. Wall mountable
Product Description
SOHO Ethernet Switch Series
Expanding Wired Connectivity for SOHO Networks
The NETGEAR SOHO Ethernet Unmanaged Switches provide easy and affordable network connectivity to small offices and home/offices. They are easy to use, reliable, and rugged with metal enclosures. Power-over-Ethernet (PoE) support is also available for supplying both power and data across a single CAT-5 ethernet cable to devices such as IP security cameras, VoIP phones, wireless access points, etc. With these Plug-and-Play switches, you can quickly and easily expand your network connections to multiple devices, with no configuration required. Available with 5 ports to 48 ports, these switches also support energy saving technologies to help you save power and money.
