Stock Status: 1x unit in stock

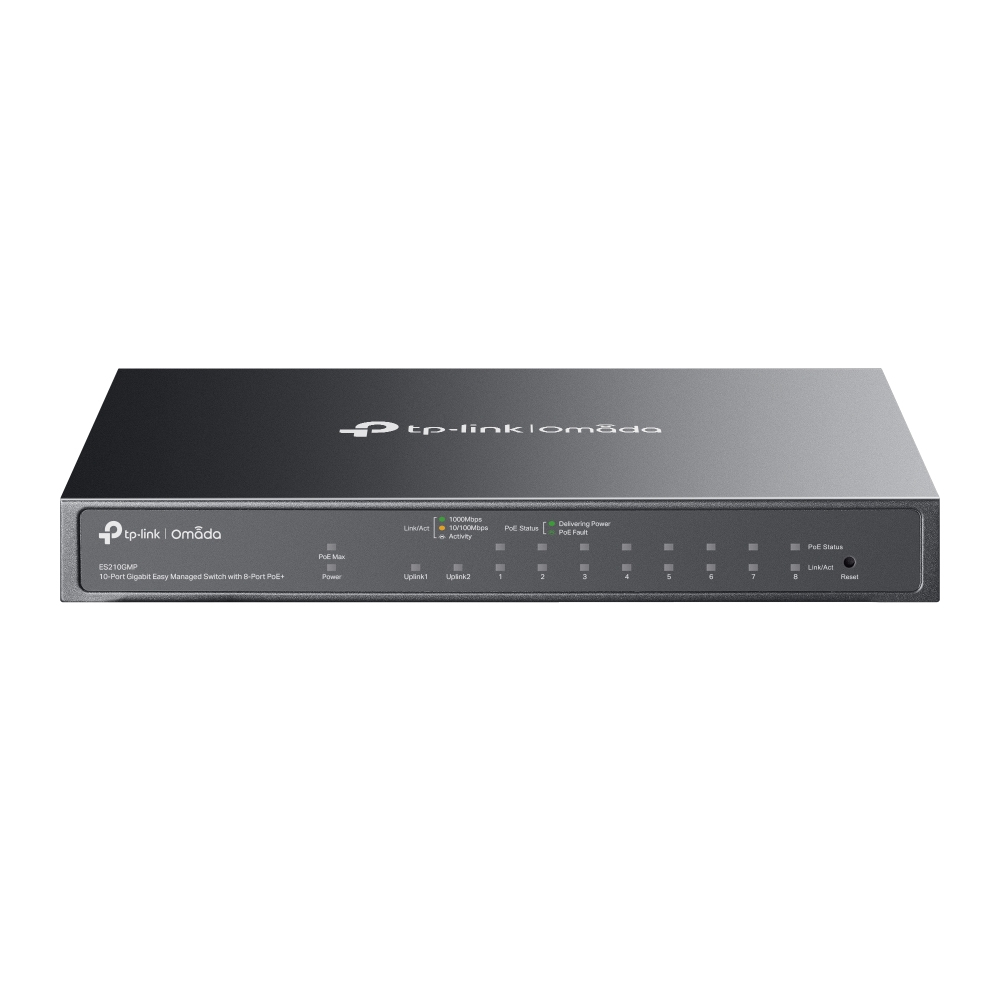

Omada 10-Port Gigabit Easy Managed
Switch with 8-Port PoE+
Omada Cloud Essentials - A Free and Easy Cloud-Based Network Mnagement
Omada Cloud Essentials is a free, easy-to-use cloud-based management option for the Omada networking system§, covering access points, switches, and gateways. It enables simple, centralized network management and monitoring with essential features, making it ideal for surveillance networks and small businesses that don't require the complexity of larger operations.
- Lifetime Free Cloud without Any Additional Fees
- Exists Entirely in the Cloud. No Hardware or Software Controller Needed
- Cloud Centralized Management for Multiple Sites
- Access Anytime via Omada App or Web
- Easy Setup, Use, and Maintenance
- Unlimited Management Scale
- Zero-Touch Provisioning (ZTP) without Unboxing
- Upgrade to Standard with a Seamless Subscription
Specs
| Ports & interfaces |
| Basic switching RJ-45 Ethernet ports quantity |
10 |
| Basic switching RJ-45 Ethernet ports type |
Gigabit Ethernet (10/100/1000) |
| Combo SFP ports quantity |
1 |
| Networking |
| Networking standards |
IEEE 802.1Q, IEEE 802.1ab, IEEE 802.1p, IEEE 802.3af, IEEE 802.3at, IEEE 802.3x |
| 10G support |
No |
| Port mirroring |
Yes |
| Flow control support |
Yes |
| Link aggregation |
Yes |
| Auto MDI/MDI-X |
Yes |
| Auto-negotiation |
Yes |
| VLAN support |
Yes |
| Virtual LAN features |
MTU VLAN, Port-based VLAN, Tagged VLAN |
| Power |
| Power source |
DC |
| Power supply included |
Yes |
| DC input voltage |
53.5 V |
| Input current |
2.43 A |
| Operational conditions |
| Operating temperature (T-T) |
0 - 40 °C |
| Storage temperature (T-T) |
-40 - 70 °C |
| Operating relative humidity (H-H) |
10 - 90% |
| Storage relative humidity (H-H) |
5 - 90% |
| Weight & dimensions |
| Width |
209 mm |
| Depth |
126 mm |
| Height |
26 mm |
| Security |
| DHCP features |
DHCP client |
| IGMP snooping |
Yes |
| Packaging data |
| Package type |
Box |
| Data transmission |
| MAC address table |
8000 entries |
| Switching capacity |
20 Gbit/s |
| Forwarding rate |
14.88 Mpps |
| Store-and-forward |
Yes |
| Jumbo frames support |
Yes |
| Jumbo frames |
15 |
| Packet buffer memory |
4 MB |
| Management features |
| Switch type |
Managed |
| Quality of Service (QoS) support |
Yes |
| Cloud-managed |
Yes |
| Optical fiber |
| Transmission distance (max) |
0.25 km |
| Power over Ethernet (PoE) |
| Power over Ethernet (PoE) |
Yes |
| Power over Ethernet plus (PoE+) ports quantity |
8 |
| Power over Ethernet (PoE) power per port |
30 W |
| Total Power over Ethernet (PoE) budget |
123 W |
| Design |
| Product colour |
Black |
| Reset button |
Yes |
| Wall mountable |
Yes |
| Performance |
| Fanless |
Yes |
| Certification |
| Compliance certificates |
CE, Federal Communications Commission (FCC), RoHS |
| Packaging content |
| Cables included |
AC |
| User guide |
Yes |
Features
TP-Link Omada 10-Port Gigabit Easy Managed Switch with 8-Port PoE+. Switch type: Managed. Basic switching RJ-45 Ethernet ports type: Gigabit Ethernet (10/100/1000), Basic switching RJ-45 Ethernet ports quantity: 10. MAC address table: 8000 entries, Switching capacity: 20 Gbit/s. Networking standards: IEEE 802.1Q, IEEE 802.1ab, IEEE 802.1p, IEEE 802.3af, IEEE 802.3at, IEEE 802.3x. DC input voltage: 53.5 V. Power over Ethernet (PoE). Wall mountable
Product Description
Omada 10-Port Gigabit Easy Managed
Switch with 8-Port PoE+
Omada Cloud Essentials - A Free and Easy Cloud-Based Network Mnagement
Omada Cloud Essentials is a free, easy-to-use cloud-based management option for the Omada networking system§, covering access points, switches, and gateways. It enables simple, centralized network management and monitoring with essential features, making it ideal for surveillance networks and small businesses that don't require the complexity of larger operations.
- Lifetime Free Cloud without Any Additional Fees
- Exists Entirely in the Cloud. No Hardware or Software Controller Needed
- Cloud Centralized Management for Multiple Sites
- Access Anytime via Omada App or Web
- Easy Setup, Use, and Maintenance
- Unlimited Management Scale
- Zero-Touch Provisioning (ZTP) without Unboxing
- Upgrade to Standard with a Seamless Subscription
