Stock Status: 1x unit in stock

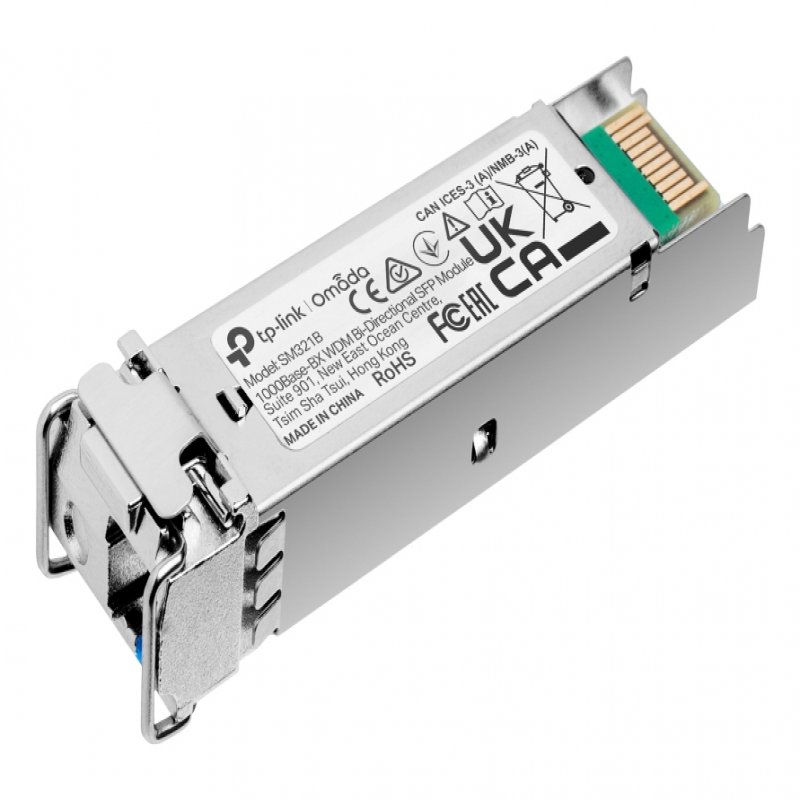

TP-Link´s SM321B (TL-SM321B) adopts the latest standard 1000Base-BX, transmitting over a single strand of fiber with one different wavelength going in each direction. You can extend the network distance up to 20Km with TP-Link´s routers, switches and media converters to provide high speed and stability.
Specs
| Operational conditions |
| Minimum operating temperature |
0 °C |
| Maximum operating temperature |
70 °C |
| Operating temperature (T-T) |
0 - 70 °C |
| Storage temperature (T-T) |
-40 - 85 °C |
| Operating relative humidity (H-H) |
10 - 90% |
| Storage relative humidity (H-H) |
5 - 90% |
| Weight & dimensions |
| Width |
55.4 mm |
| Depth |
14.6 mm |
| Height |
12.9 mm |
| Power |
| Input voltage |
3.3 V |
| Performance |
| SFP transceiver type |
Fiber optic |
| Maximum data transfer rate |
1250 Mbit/s |
| Interface type |
SFP |
| Single-mode fiber (SMF) supported |
Yes |
| Fiber cable diameters supported (core/cladding) |
9/125 µm |
| Maximum transfer distance |
20000 m |
| Tx wavelength (max) |
1310 nm |
| Rx wavelength (max) |
1550 nm |
| Digital Diagnostics Monitoring (DDM) |
Yes |
| Features |
| Product colour |
Silver |
| Hot-swap |
Yes |
| Packaging data |
| User guide |
Yes |
| Certification |
| Certification |
FCC, CE |
| Packaging content |
| Quantity per pack |
1 pc(s) |
Features
TP-Link Omada 1000Base-BX WDM Bi-Directional SFP Module. SFP transceiver type: Fiber optic, Maximum data transfer rate: 1250 Mbit/s, Interface type: SFP. Product colour: Silver. Input voltage: 3.3 V. Certification: FCC, CE. Width: 55.4 mm, Depth: 14.6 mm, Height: 12.9 mm
Product Description
TP-Link´s SM321B (TL-SM321B) adopts the latest standard 1000Base-BX, transmitting over a single strand of fiber with one different wavelength going in each direction. You can extend the network distance up to 20Km with TP-Link´s routers, switches and media converters to provide high speed and stability.
