Stock Status: 1x unit in stock

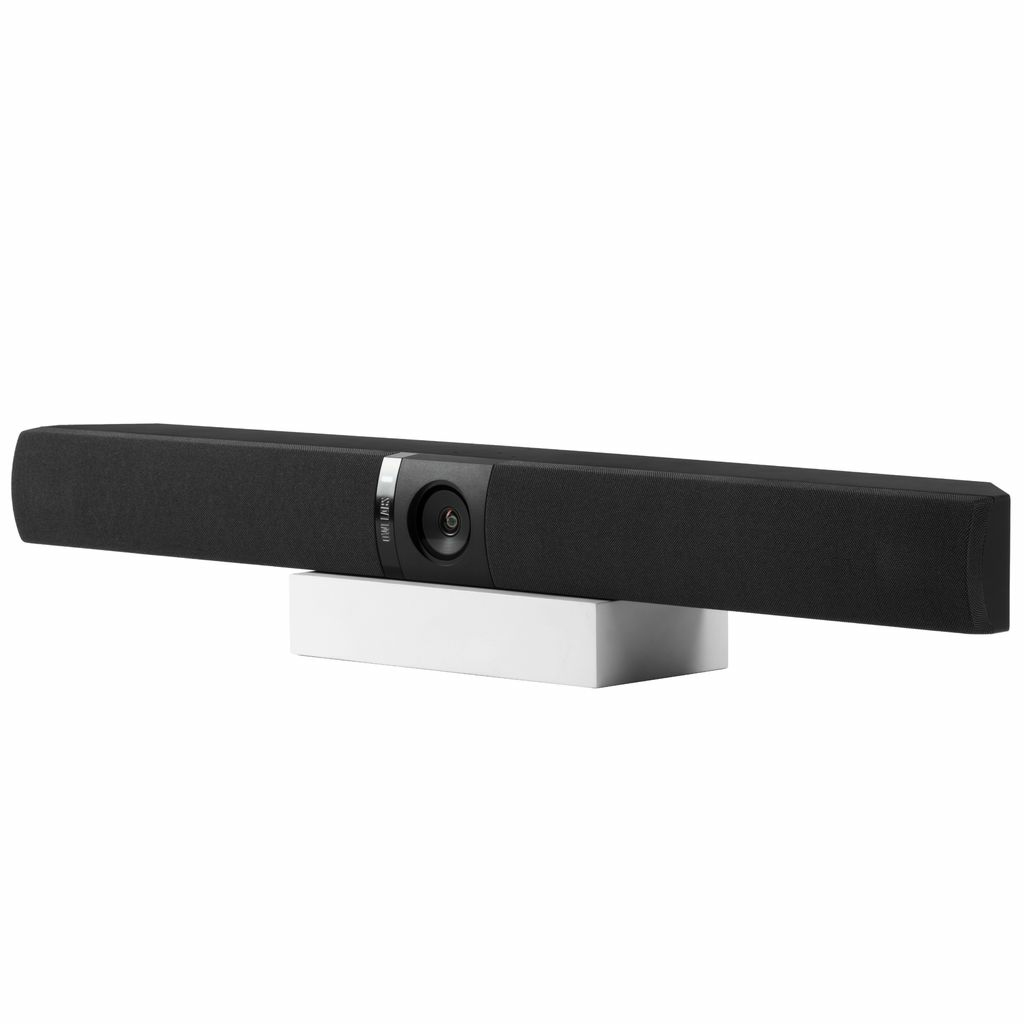

Our intelligent 114° 4K front-of-room camera, mic, and speaker device. Featuring a 4K, 30MP camera lens, 4 omnidirectional microphones, and an integrated speaker. Pairs with the Meeting Owl 3 or Pro (sold separately) to automatically focus on whoever is speaking and switch between cameras to always share the best perspective of the room for remote participants.
Front and center room coverage with intelligent camera-switching and automatic speaker focus to capture every angle
Clear video and audio with 4K 30MP camera, 4 omnidrectional mics, and high-fidelity speaker
Pairs seamlessly with other Owl Labs solutions, including the Meeting Owl, the Whiteboard Owl and the Expansion Mic, to foster active collaboration and increased participation
Specs
| Video |
| HD type |
4K Ultra HD |
| Maximum video resolution |
3840 x 2160 pixels |
| Supported video modes |
360p, 1080p, 1440p, 2160p |
| Supported graphics resolutions |
640 x 360, 1280 x 720 (HD 720), 1920 x 1080 (HD 1080), 2560 x 1440, 3840 x 2160 |
| Maximum frame rate |
30 fps |
| Video formats supported |
MJPG, NV12 |
| Audio |
| Built-in speaker(s) |
Yes |
| Number of speakers |
1 |
| Output level |
79/1 dB |
| RMS rated power |
5 W |
| Microphone pick-up range |
2.5 m |
| Weight & dimensions |
| Width |
97 mm |
| Depth |
769 mm |
| Height |
76 mm |
| Weight |
1.88 kg |
| Package width |
149 mm |
| Package depth |
820 mm |
| Package height |
162 mm |
| Package weight |
5 kg |
| Ports & interfaces |
| HDMI ports quantity |
1 |
| USB connector type |
USB Type-C |
| Networking |
| Ethernet LAN |
Yes |
| Ethernet LAN data rates |
10,100,1000 Mbit/s |
| Wi-Fi |
Yes |
| Wi-Fi standards |
802.11a, 802.11b, 802.11g, Wi-Fi 4 (802.11n), Wi-Fi 5 (802.11ac), Wi-Fi 6 (802.11ax) |
| Security algorithms |
WPA2, WPA3 |
| Power |
| Power source type |
DC |
| DC output voltage |
19 V |
| Certificates |
| Certified for Microsoft Teams |
Yes |
| Packaging content |
| Cables included |
AC, USB Type-C |
| Wall mounting kit |
Yes |
| Warranty card |
Yes |
| Quick start guide |
Yes |
| Packaging content |
Owl Bar
Table / Wall mount
6' USB Type C Cable
Power supply
AC line cord
QSG
Table card english
Table card french
Safety/regulatory/warranty slipsheet
Owl card holder
Room Solution card
Owl Labs sticker |
| Camera |
| Megapixel (approx.) |
30 MP |
| Sensor type |
CMOS |
| Camera type |
Single camera |
| Effective sensor resolution |
48 MP |
| Focal length range |
500 - 5000 mm |
| Horizontal field of view |
114° |
| Vertical field of view |
73° |
| Microphone |
| Microphone sensitivity |
69 dB |
| Microphone frequency |
100 - 10000 Hz |
| Microphone direction type |
Omnidirectional |
| Number of microphones |
4 |
| Logistics data |
| Country of origin |
Vietnam |
| Harmonized System (HS) code |
8525.5000.00 |
| Computer system |
| Processor family |
Qualcomm Snapdragon |
| Processor model |
QCS8250 |
| Windows operating systems supported |
Yes |
| Mac operating systems supported |
Yes |
| Other operating systems supported |
ChromeOS, Linux |
| Performance |
| Product type |
Video collaboration bar |
| Product colour |
Charcoal |
| Number of cameras |
1 |
Features
Owl Labs Owl Bar Video Conferencing Device — 4K Video Conferencing Bar with Active Speaker Focus (Add a Meeting Owl 3 or Pro for 360-Degree Coverage and Automatic Camera Switching). Product type: Video collaboration bar. Sensor type: CMOS. HD type: 4K Ultra HD, Supported video modes: 360p, 1080p, 1440p, 2160p, Maximum frame rate: 30 fps. Ethernet LAN, Wi-Fi. Product colour: Charcoal
Product Description
Our intelligent 114° 4K front-of-room camera, mic, and speaker device. Featuring a 4K, 30MP camera lens, 4 omnidirectional microphones, and an integrated speaker. Pairs with the Meeting Owl 3 or Pro (sold separately) to automatically focus on whoever is speaking and switch between cameras to always share the best perspective of the room for remote participants.
Front and center room coverage with intelligent camera-switching and automatic speaker focus to capture every angle
Clear video and audio with 4K 30MP camera, 4 omnidrectional mics, and high-fidelity speaker
Pairs seamlessly with other Owl Labs solutions, including the Meeting Owl, the Whiteboard Owl and the Expansion Mic, to foster active collaboration and increased participation
