Stock Status: 1x unit in stock

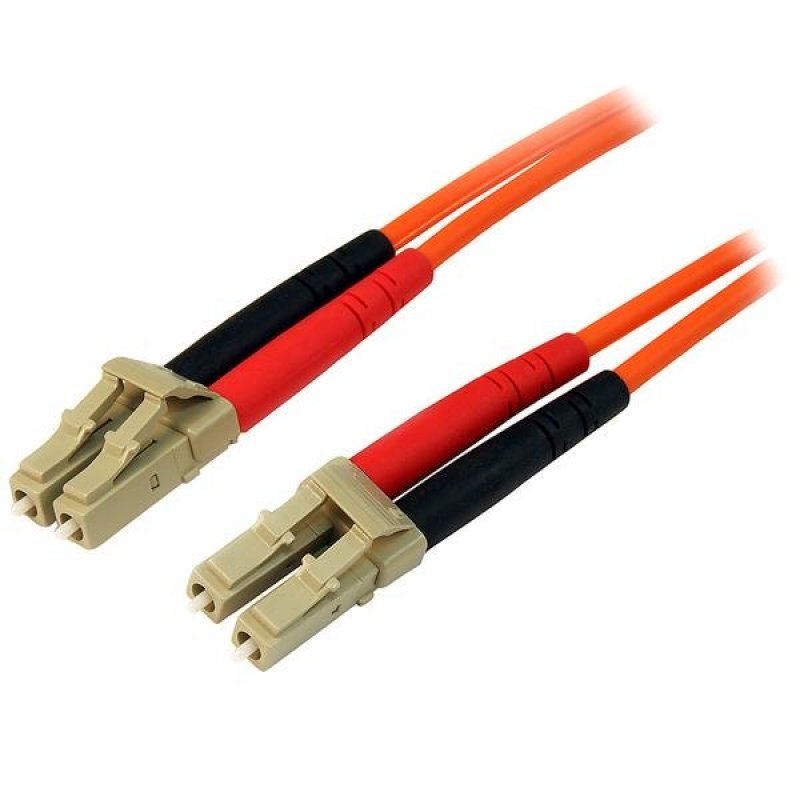

The 50FIBLCLC15 15m LSZH LC to LC Fiber Cable features 50/125 micron fiber for high-speed, high bandwidth data transmissions over Gigabit Ethernet and Fiber Channel networks, with support for duplex multimode applications.
This LC-LC patch cable is housed in a LSZH (Low-Smoke, Zero-Halogen) flame retardant jacket, to ensure minimal smoke, toxicity and corrosion when exposed to high sources of heat, in the event of a fire. Making it ideal for use in industrial settings, central offices and schools, as well as residential settings where building codes are a consideration.
Each Duplex 50/125 (OM2) Multimode Fiber Patch Cable is individually tested and certified to be within acceptable optical insertion loss limits for guaranteed compatibility and 100% reliability and is backed by our lifetime warranty.
The StarTech.com Advantage
- LSZH-rated cable, suitable for installations under restrictive building codes
- High-speed, high bandwidth transmissions over Gigabit Ethernet/fiber channel networks
- Resistant to pulls, strains, and impacts during your cable installations and maintenance
Specs
| Weight & dimensions |
| Weight |
198 g |
| Features |
| Cable length |
15 m |
| Fiber optic type |
OM2 |
| Connector 1 |
LC |
| Connector 2 |
LC |
| Connector gender |
Male/Male |
| Cable colour |
Orange |
| Full duplex |
Y |
| Core diameter |
50 µm |
| Cladding diameter |
125 µm |
| Fiber mode structure |
Multi-mode |
| Jacket material |
Low smoke zero halogen (LSZH) |
| Halogen free |
Y |
| RoHS compliance |
Y |
| Fibre optic type |
OM2 |
| Halogen-free |
Y |
| Data transfer rate |
10 Gbit/s |
| Certification |
CE |
| Connector 1 gender |
Male |
| Connector 2 gender |
Male |
| Product colour |
Orange |
| Technical details |
| Sustainability certificates |
REACH, RoHS |
| Doesn't contain |
Halogen |
| Packaging data |
| Package width |
200 mm |
| Package depth |
220 mm |
| Package height |
41 mm |
| Package weight |
207 g |
| Operational conditions |
| Operating temperature (T-T) |
-20 - 60 °C |
| Storage temperature (T-T) |
-20 - 60 °C |
Features
StarTech.com Fiber Optic Cable - Multimode Duplex 50/125 - LSZH - LC/LC - 15 m. Cable length: 15 m, Fibre optic type: OM2, Connector 1: LC, Connector 2: LC, Core diameter: 50 µm, Full duplex
Product Description
The 50FIBLCLC15 15m LSZH LC to LC Fiber Cable features 50/125 micron fiber for high-speed, high bandwidth data transmissions over Gigabit Ethernet and Fiber Channel networks, with support for duplex multimode applications.
This LC-LC patch cable is housed in a LSZH (Low-Smoke, Zero-Halogen) flame retardant jacket, to ensure minimal smoke, toxicity and corrosion when exposed to high sources of heat, in the event of a fire. Making it ideal for use in industrial settings, central offices and schools, as well as residential settings where building codes are a consideration.
Each Duplex 50/125 (OM2) Multimode Fiber Patch Cable is individually tested and certified to be within acceptable optical insertion loss limits for guaranteed compatibility and 100% reliability and is backed by our lifetime warranty.
The StarTech.com Advantage
- LSZH-rated cable, suitable for installations under restrictive building codes
- High-speed, high bandwidth transmissions over Gigabit Ethernet/fiber channel networks
- Resistant to pulls, strains, and impacts during your cable installations and maintenance
