Stock Status: 1x unit in stock
Deploy content for digital signage through a scalable distribution system with intuitive control and USB extention that’s ideal for point-to-point or video wall applications

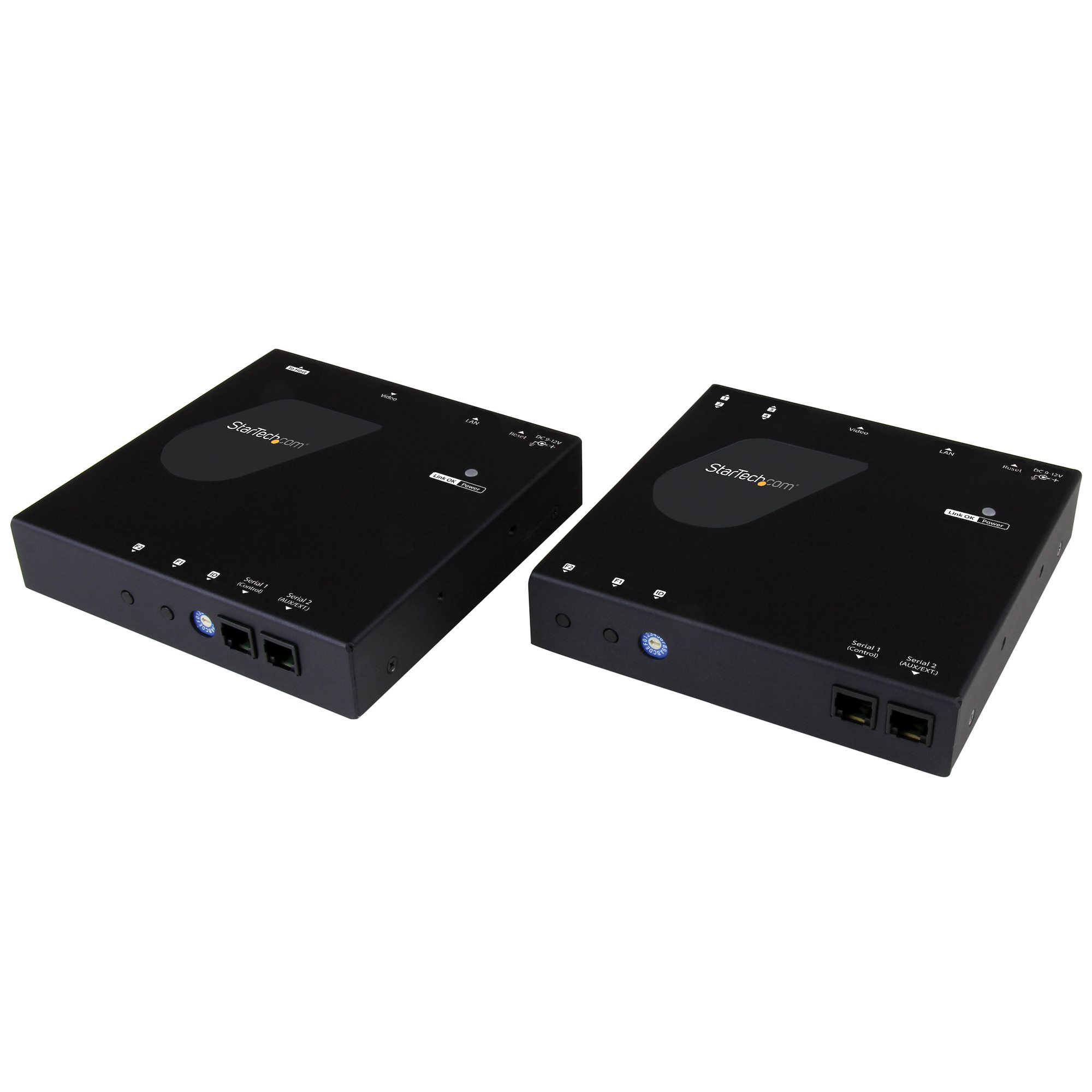

This HDMI® over IP kit lets you extend an HDMI signal, as well as four USB peripheral device connections, over your network. You can use additional receivers (sold separately) to distribute the HDMI and USB signals to multiple locations and combine your remote displays to create a video wall while using the USB connection to extend a touch screen to create an interactive digital signage presentation.
Versatile configuration options
In a point-to-multipoint setup, you can connect the HDMI over IP kit through an unmanaged or managed Gigabit LAN portal. You can also connect one or several sources (transmitters) to multiple displays (receivers) over your network, using a managed Gigabit Ethernet switch with IGMP. For further scalability, you can combine up to 16 different extender kits.
For smaller-scale applications, you can use the extender kit as a point-to-point video extender by connecting the transmitter and receiver units directly over Cat5 or Cat6 cabling for a one-to-one HDMI extension up to 330 feet (100 meters).
Manage your video distribution from your mobile device
This HDMI distribution kit features an easy-to-use video control software app that helps you manage your IP video distribution. The app is simple to set up, with automatic hardware detection, and it lets you switch video sources for each remote display. You can also create and manage a video wall, for an impressive digital signage presentation that's sure to catch your audience's attention.
The software is available on iOS for your iPhone or iPad, and Android™ for your smartphone or tablet.
Professional, cost-effective, simple installation
The HDMI over IP extender kit can be powered using Power over Ethernet to conveniently connect both data and power using an 802.3af PoE switch or injector, avoiding the hassle of external power adapters.
The kit includes optional mounting hardware for a tidy installation. Ideal for high-definition applications, the extender supports 1080p video resolutions and digital stereo audio. Plus, because the extender uses standard non-proprietary Cat5e or Cat6 Ethernet cable with RJ45 connectors, it eliminates both the expense and hassle of running specialized cables.
The extender also features an EDID copy function, which ensures native resolution and maximum compatibility with your display or projector, for a convenient plug-and-play installation.
Download the StarTech.com Video Control software to manage your IP video distribution.
Note: For best performance, a managed network switch with IGMP is recommended if you are using more than one transmitter, or more than four receivers, Non-managed network switches may also limit the performance of other devices connected to the same network.
The ST12MHDLANU is TAA compliant and backed by a StarTech.com 2-year warranty with free lifetime technical support.
The StarTech.com Advantage
Specs
| Technical details |
| Compliance certificates |
RoHS |
| Audio support |
Yes |
| Ports & interfaces |
| RJ-45 input ports |
1 |
| RJ-45 output ports |
1 |
| HDMI in |
1 |
| Number of HDMI outputs |
1 |
| USB ports quantity |
5 |
| USB connector type |
USB Type-A, USB Type-B |
| Weight & dimensions |
| Weight |
1.25 kg |
| Receiver dimensions (WxDxH) |
131 x 131 x 27 mm |
| Transmitter dimensions (WxDxH) |
131 x 131 x 27 mm |
| Packaging data |
| Package width |
367 mm |
| Package depth |
238 mm |
| Package height |
76 mm |
| Package weight |
2.2 kg |
| Operational conditions |
| Operating temperature (T-T) |
0 - 40 °C |
| Storage temperature (T-T) |
-10 - 60 °C |
| Operating relative humidity (H-H) |
0 - 80% |
| Power |
| AC input voltage |
100-240 V |
| Operating voltage |
5 V |
| Input current |
0.6 A |
| Output current |
1.5 A |
| External power adapter |
Yes |
| Current |
2 A |
| Power plug type |
Type M |
| Packaging content |
| AC adapter included |
Yes |
| Cables included |
LAN (RJ-45) |
| Quick start guide |
Yes |
| Mounting brackets included |
Yes |
| Features |
| Type |
AV transmitter & receiver |
| Maximum resolution |
1920 x 1200 pixels |
| Cable types supported |
Cat5e |
| Maximum transfer distance |
100 m |
| Maximum refresh rate |
60 Hz |
| Audio system |
stereo |
| LED indicators |
Link, Power, Reset |
| Supported video modes |
720p, 1080p |
| Material |
Aluminium |
| Rack mounting |
Yes |
| Daisy chain |
Yes |
| Product colour |
Black |
| Certification |
CE, FCC, TAA, REACH |
| Logistics data |
| Master (outer) case width |
390 mm |
| Master (outer) case length |
491 mm |
| Master (outer) case height |
268 mm |
| Products per master (outer) case |
6 pc(s) |
Features
StarTech.com HDMI and USB over IP Distribution Kit - 1080p. Type: AV transmitter & receiver, Maximum resolution: 1920 x 1200 pixels, Cable types supported: Cat5e. USB connector type: USB Type-A, USB Type-B. AC input voltage: 100-240 V, Operating voltage: 5 V, Input current: 0.6 A. Weight: 1.25 kg, Receiver dimensions (WxDxH): 131 x 131 x 27 mm, Transmitter dimensions (WxDxH): 131 x 131 x 27 mm. Package width: 367 mm, Package depth: 238 mm, Package height: 76 mm
