Stock Status: 1x unit in stock
8 Gbps | Single Mode Fiber | LC | 10 km (6.2 mi) | Lifetime Warranty

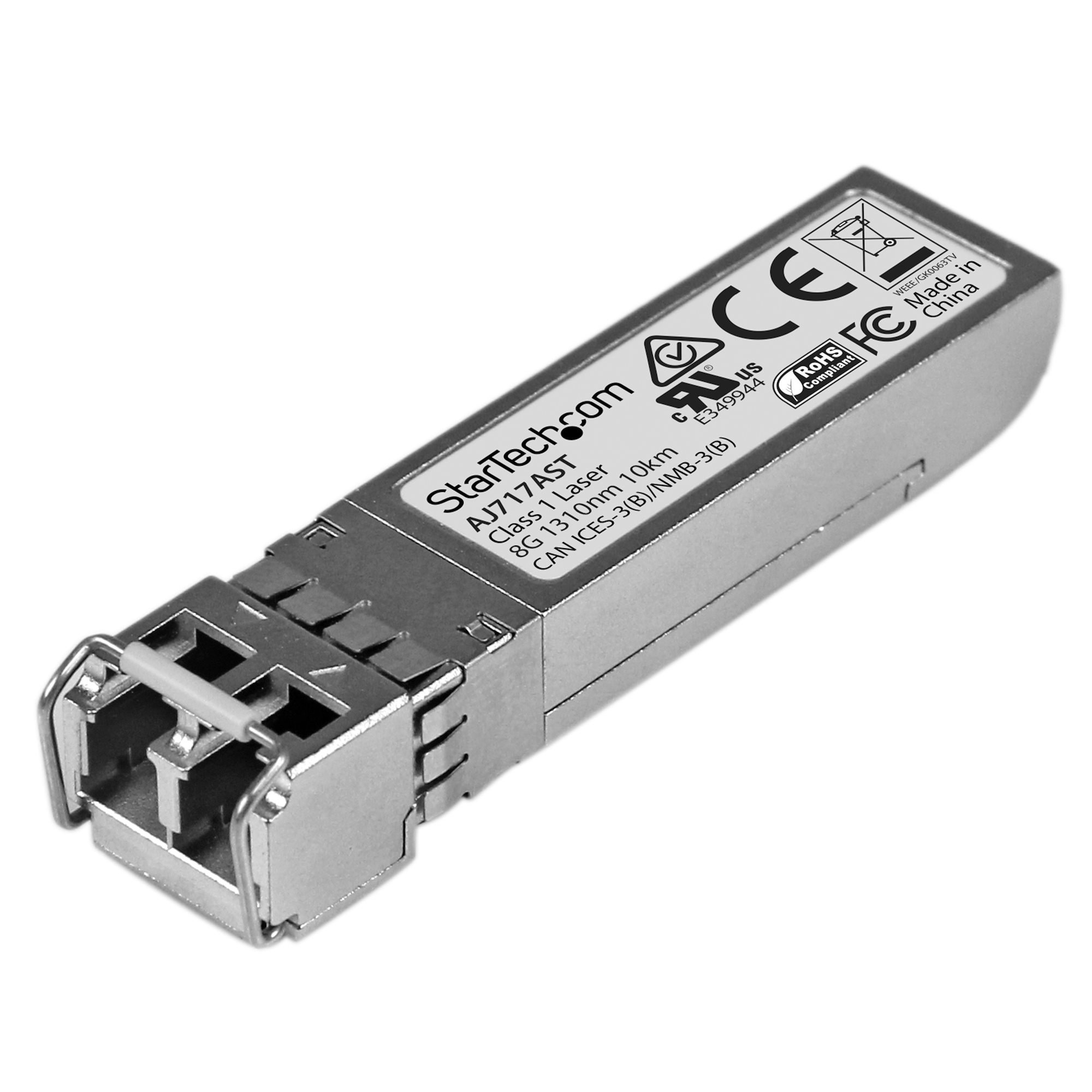

The AJ717AST is an HPE AJ716B compatible fiber transceiver module that has been designed, programmed and tested to work with HPE® brand switches and routers. It delivers dependable 8Gb fiber channel connectivity over fiber cable, for 8GFC compliant networks, with a maximum distance of up to 10 km (6.2 mi).
Technical Specifications:
• Wavelength: 1310 nm
• Maximum Data Transfer Rate: 8 Gbps
• Type: Single Mode Fiber
• Connection Type: LC Connector
• Maximum Transfer Distance: 10 km (6.2 mi)
• MTBF: 2,104,865 hours
• Power Consumption: Less than 1.5 Watts
• Digital Diagnostics Monitoring (DDM): Yes
This SFP+ fiber module is hot-swappable, making upgrades and replacements seamless by minimizing network disruptions.
StarTech.com SFPs
All StarTech.com SFP & SFP+ transceiver modules are backed by a lifetime warranty and free lifetime multilingual technical support. StarTech.com offers a wide variety of SFP modules and direct-attach SFP cables, providing the convenience and reliability you need to ensure dependable network performance.
The StarTech.com Advantage
Specs
| Operational conditions |
| Operating temperature (T-T) |
0 - 70 °C |
| Storage temperature (T-T) |
-40 - 85 °C |
| Operating relative humidity (H-H) |
5 - 95% |
| Weight & dimensions |
| Width |
13.9 mm |
| Depth |
58.4 mm |
| Height |
12.6 mm |
| Weight |
21 g |
| Power |
| Power consumption (typical) |
1.5 W |
| Performance |
| SFP transceiver type |
Fiber optic |
| Maximum data transfer rate |
8000 Mbit/s |
| Interface type |
SFP+ |
| Single-mode fiber (SMF) supported |
Yes |
| Fiber optic connector |
LC |
| Maximum transfer distance |
10000 m |
| Wavelength |
1310 nm |
| Duplex system |
Full |
| Digital Diagnostics Monitoring (DDM) |
Yes |
| Features |
| Product colour |
Silver |
| Housing material |
Aluminium |
| Hot-swap |
Yes |
| Mean time between failures (MTBF) |
2104865 h |
| Logistics data |
| Master (outer) case width |
354 mm |
| Master (outer) case length |
410 mm |
| Harmonized System (HS) code |
85369010 |
| Master (outer) case height |
350 mm |
| Products per master (outer) case |
100 pc(s) |
| Country of origin |
China |
| Packaging data |
| Package width |
118 mm |
| Package depth |
92 mm |
| Package height |
33 mm |
| Package weight |
49 g |
| Certification |
| Compliance certificates |
RoHS |
| Certification |
CE, FCC, UR |
| Packaging content |
| Quantity per pack |
1 pc(s) |
Features
StarTech.com HP AJ717A Compatible SFP+ Transceiver Module - 8GFC~HPE AJ717A Compatible SFP+ Module - 8G Fiber Channel WW - 8GbE Single Mode Fiber Optic Transceiver - 8GE Gigiabit Ethernet SFP+ - LC 10km - 1310nm - DDM HPE SN6000, SN6500, SN8600B. SFP transceiver type: Fiber optic, Maximum data transfer rate: 8000 Mbit/s, Interface type: SFP+. Product colour: Silver, Housing material: Aluminium, Mean time between failures (MTBF): 2104865 h. Power consumption (typical): 1.5 W. Compliance certificates: RoHS, Certification: CE, FCC, UR. Width: 13.9 mm, Depth: 58.4 mm, Height: 12.6 mm
Product Description
8 Gbps | Single Mode Fiber | LC | 10 km (6.2 mi) | Lifetime Warranty
The AJ717AST is an HPE AJ716B compatible fiber transceiver module that has been designed, programmed and tested to work with HPE® brand switches and routers. It delivers dependable 8Gb fiber channel connectivity over fiber cable, for 8GFC compliant networks, with a maximum distance of up to 10 km (6.2 mi).
Technical Specifications:
• Wavelength: 1310 nm
• Maximum Data Transfer Rate: 8 Gbps
• Type: Single Mode Fiber
• Connection Type: LC Connector
• Maximum Transfer Distance: 10 km (6.2 mi)
• MTBF: 2,104,865 hours
• Power Consumption: Less than 1.5 Watts
• Digital Diagnostics Monitoring (DDM): Yes
This SFP+ fiber module is hot-swappable, making upgrades and replacements seamless by minimizing network disruptions.
StarTech.com SFPs
All StarTech.com SFP & SFP+ transceiver modules are backed by a lifetime warranty and free lifetime multilingual technical support. StarTech.com offers a wide variety of SFP modules and direct-attach SFP cables, providing the convenience and reliability you need to ensure dependable network performance.
