"10/100 Mbps Media Converter | 100Mbps SFP to RJ45/Cat6 | 12-56V DC | IP-30 Housing

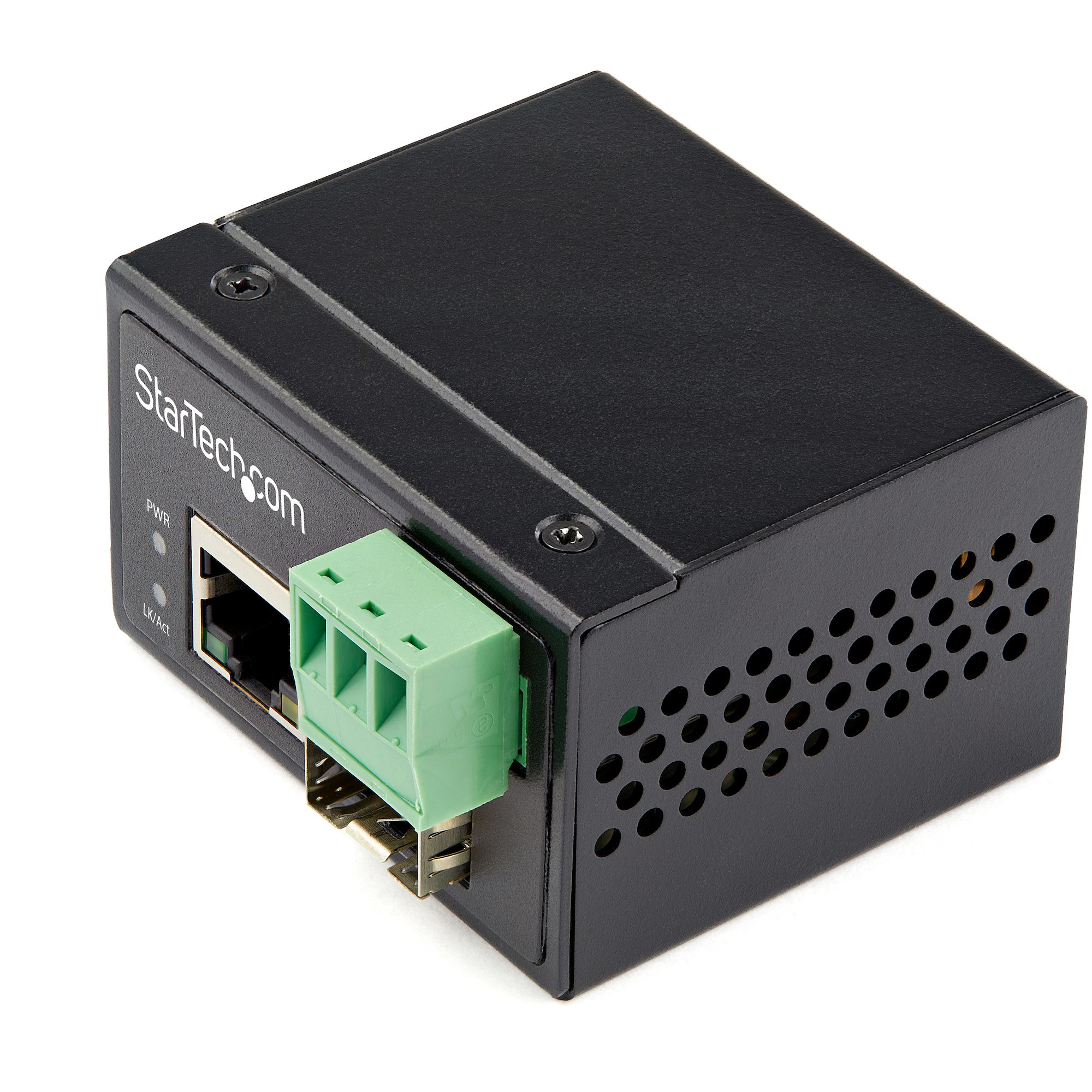

An industrial media converter that converts fiber to copper at a network endpoint.
A Flexible Solution Covering Different Requirements
This media converter features an open SFP slot for any standard SFP to be used for the incoming fiber connection and is easily deployed across applications or fiber cable types. Accepts terminal block power or coaxial power connectors with the barrel plug adapter, allowing the product to be hardwired or powered using an external power supply (not included), which does not require professional installation. It can be powered using 18V-36V AC or 12V -56V DC for a high degree of flexibility including applications like solar, automotive, and rail. Includes hardware for DIN rail or wall mounting.
For Mission-Critical Applications
Designed with IP-30 housing and has an MBTF of >500,000 hrs (Telcordia/Bellcore) at 50°C and an operating temperature range of include -40 C to 75 C for durability; it's rated to various vibration, shock, and free-fall standards:
Vibration: EN 60068-2-6
Shock: EN 60068-2-27
Free-Fall: EN 60068-2-32
Dual Power Inputs
Accepts terminal block power or coaxial power connectors with the barrel plug adapter, allowing the product to be hardwired or powered using an external power supply (not included), which does not require professional installation.
The IMC100MSFP is backed by a StarTech.com 2-year warranty and free lifetime technical support.
The StarTech.com Advantage
- COMPACT SIZE + FLEXIBLE POWER INPUT: Smallest form factor Fiber to Ethernet media converter - extends & converts 100Mbps fiber to RJ45 copper; powered by 18-36V AC or 12V-56V DC for solar, auto & rail
- ROBUST DESIGN: Industrial Network Media Converter w/MTBF 500,000+hrs @ 50C
- Vibration, shock & freefall rated"
Specs
| Networking |
| Maximum data transfer rate |
100 Mbit/s |
| Converter input interface |
10Base-T, 100Base-TX |
| Converter output interface |
100Base-FX |
| Networking standards |
IEEE 802.3, IEEE 802.3u, IEEE 802.3x |
| Jumbo frames support |
Y |
| Jumbo frames |
16000 |
| Duplex system |
Full |
| Weight & dimensions |
| Width |
36 mm |
| Depth |
59 mm |
| Height |
50 mm |
| Weight |
81.4 g |
| Ports & interfaces |
| Fiber optic connector |
SFP |
| Connectivity technology |
Wired |
| Ethernet LAN (RJ-45) ports |
1 |
| Fiber ports quantity |
1 |
| Power |
| Input voltage |
12 - 56 V |
| Power consumption (typical) |
1.92 W |
| Power over Ethernet (PoE) |
N |
| Power plug type |
Type N |
| Operational conditions |
| Operating temperature (T-T) |
-40 - 75 °C |
| Storage temperature (T-T) |
-40 - 85 °C |
| Operating relative humidity (H-H) |
5 - 95% |
| Packaging content |
| User guide |
Y |
| Design |
| Internal |
N |
| LED indicators |
Y |
| Product colour |
Black |
| Housing material |
Aluminium |
| International Protection (IP) code |
IP30 |
| DIN rail mounting |
Y |
| Certification |
CE, FCC |
| Performance |
| Fiber mode structure |
Multi-mode, Single-mode |
| Mean time between failures (MTBF) |
500000 h |
| Logistics data |
| Master (outer) case width |
355 mm |
| Master (outer) case length |
345 mm |
| Master (outer) case height |
225 mm |
| Products per master (outer) case |
20 pc(s) |
| Packaging data |
| Package width |
155 mm |
| Package depth |
105 mm |
| Package height |
64 mm |
| Package weight |
242.4 g |
| Technical details |
| Sustainability certificates |
RoHS |
| Harmonized System (HS) code |
85176990 |
Features
StarTech.com Industrial Fiber to Ethernet Media Converter - 100Mbps SFP to RJ45/Cat6 - Singlemode/Multimode Optical Fiber to Copper Network - 12-56V DC - IP-30/ -40 to +75C. Maximum data transfer rate: 100 Mbit/s, Converter input interface: 10Base-T, 100Base-TX, Converter output interface: 100Base-FX. Fiber optic connector: SFP, Connectivity technology: Wired. Fiber mode structure: Multi-mode, Single-mode, Mean time between failures (MTBF): 500000 h. Product colour: Black, Housing material: Aluminium, International Protection (IP) code: IP30. Input voltage: 12 - 56 V, Power consumption (typical): 1.92 W, Power plug type: Type N
