Stock Status: 1x unit in stock

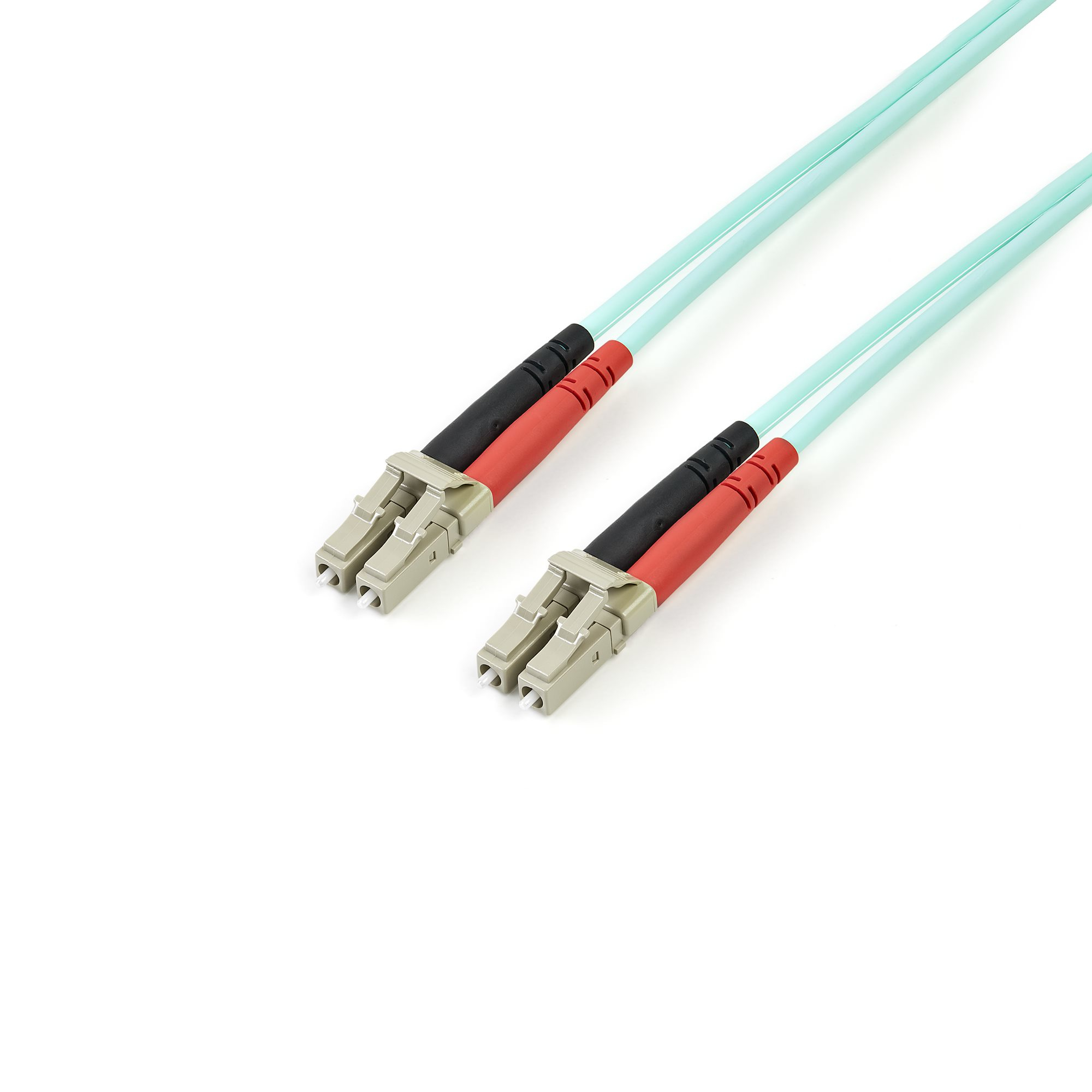

LSZH Jacket | Aramid Fiber Sheath | Ideal for SANs, data servers, SFP+The A50FBLCLC5 5m 850nm Laser-Optimized Multimode Fiber (LOMMF) Aqua Cord features 50/125 micron fiber for high-speed, high bandwidth data transmissions over 10 Gigabit Ethernet and Fiber Channel networks - the perfect solution for fiber cable runs between multiple backbone switches, hubs and routers as well as higher end networking equipment.This LC-LC patch cable is housed in a LSZH (Low-Smoke, Zero-Halogen) flame retardant jacket, to ensure minimal smoke, toxicity and corrosion when exposed to high sources of heat, in the event of a fire – an ideal solution for use in industrial settings, central offices and schools, as well as residential settings where building codes are a consideration.Each Duplex 50/125 (OM3) Multimode Fiber Patch Cable is individually tested and certified to be within acceptable optical insertion loss limits for guaranteed compatibility and 100% reliability, and is backed by our lifetime warranty.The StarTech.com Advantage
Specs
| Weight & dimensions |
| Cable diameter |
3 mm |
| Weight |
67 g |
| Features |
| Cable length |
5 m |
| Fibre optic type |
OM3 |
| Connector 1 |
LC |
| Connector 2 |
LC |
| Connector 1 gender |
Male |
| Connector 2 gender |
Male |
| Product colour |
Turquoise |
| Jacket material |
Low smoke zero halogen (LSZH) |
| Full duplex |
Y |
| Core diameter |
50 µm |
| Cladding diameter |
125 µm |
| Fiber mode structure |
Multi-mode |
| Wavelengths supported |
850 nm |
| Data transfer rate |
10 Gbit/s |
| Technical details |
| Sustainability certificates |
RoHS |
| Doesn't contain |
Halogen |
| Logistics data |
| Master (outer) case width |
400 mm |
| Harmonized System (HS) code |
85447000 |
| Master (outer) case length |
430 mm |
| Master (outer) case height |
400 mm |
| Products per master (outer) case |
160 pc(s) |
| Packaging data |
| Package width |
200 mm |
| Package depth |
220 mm |
| Package height |
24 mm |
| Package weight |
76 g |
Features
StarTech.com Fiber Optic Cable - 10 Gb Aqua - Multimode Duplex 50/125 - LSZH - LC/LC - 5 m~5m (15ft) LC/UPC to LC/UPC OM3 Multimode Fiber Optic Cable, Full Duplex 50/125µm Zipcord Fiber, 100G Networks, LOMMF/VCSEL, <0.3dB Low Insertion Loss, LSZH Fiber Patch Cord. Cable length: 5 m, Fibre optic type: OM3, Connector 1: LC, Connector 2: LC, Core diameter: 50 µm, Full duplex
Product Description
LSZH Jacket | Aramid Fiber Sheath | Ideal for SANs, data servers, SFP+The A50FBLCLC5 5m 850nm Laser-Optimized Multimode Fiber (LOMMF) Aqua Cord features 50/125 micron fiber for high-speed, high bandwidth data transmissions over 10 Gigabit Ethernet and Fiber Channel networks - the perfect solution for fiber cable runs between multiple backbone switches, hubs and routers as well as higher end networking equipment.This LC-LC patch cable is housed in a LSZH (Low-Smoke, Zero-Halogen) flame retardant jacket, to ensure minimal smoke, toxicity and corrosion when exposed to high sources of heat, in the event of a fire – an ideal solution for use in industrial settings, central offices and schools, as well as residential settings where building codes are a consideration.Each Duplex 50/125 (OM3) Multimode Fiber Patch Cable is individually tested and certified to be within acceptable optical insertion loss limits for guaranteed compatibility and 100% reliability, and is backed by our lifetime warranty.The StarTech.com Advantage
