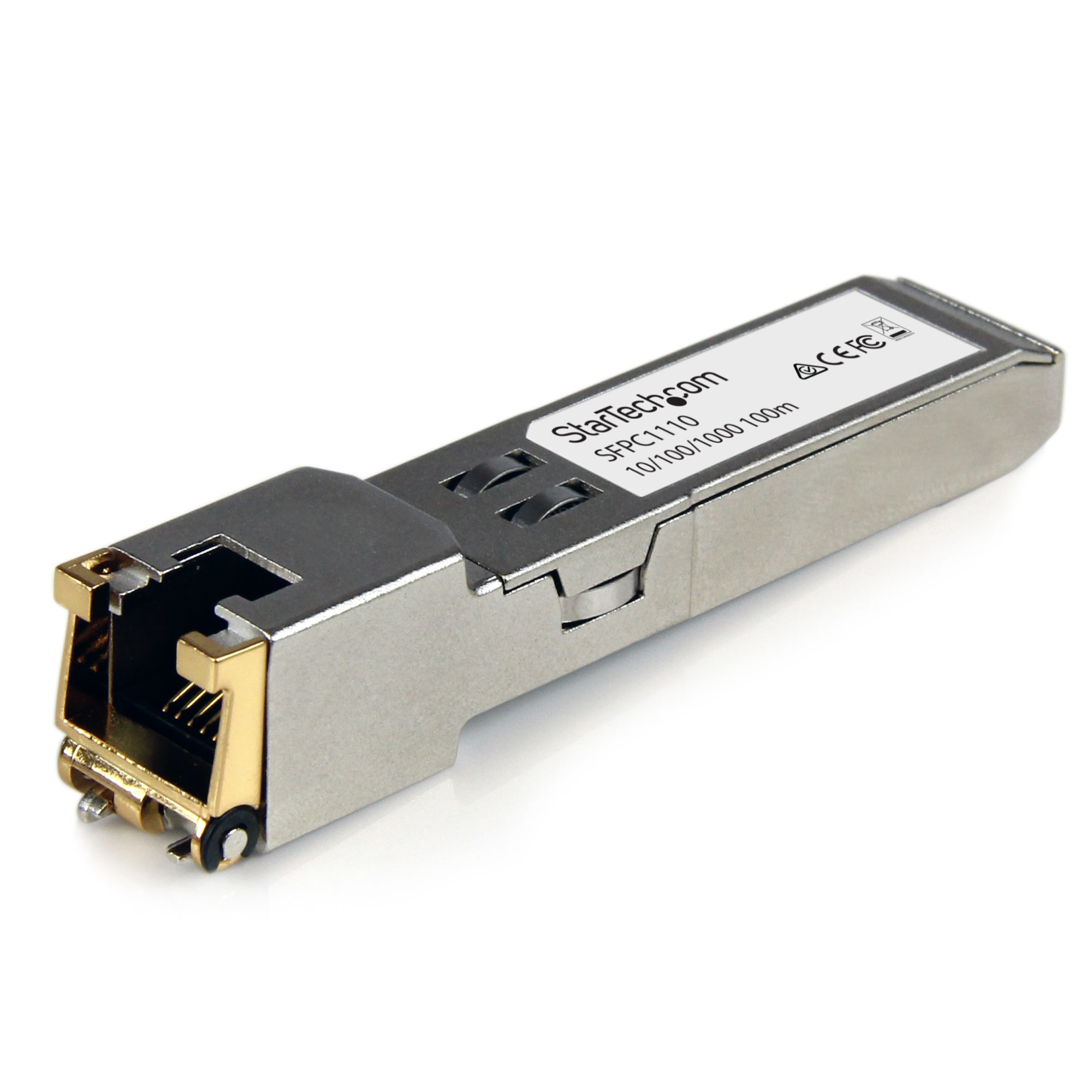

10/100/1000 Mbps | Copper | RJ45 | 100 m (328 ft) | Lifetime WarrantyThe SFPC1110 is a Cisco SFP-GE-T compatible copper transceiver module that has been designed, programmed and tested to work with Cisco® brand switches and routers. It delivers dependable 1GbE (1000 Mbps) connectivity over copper cable, for 1000BASE-T compliant networks, with a maximum distance of up to 100 m (328 ft).Technical Specifications:• Maximum Data Transfer Rate: 1.25 Gbps• Type: Copper• Connection Type: RJ45 Connector• Maximum Transfer Distance: 100 m (328 ft)• MTBF: 4,655,371 hours• Power Consumption: Less than 1.3 Watts• Digital Diagnostics Monitoring (DDM): NoThis SFP copper module is hot-swappable, making upgrades and replacements seamless by minimizing network disruptions.StarTech.com SFPsAll StarTech.com SFP & SFP+ transceiver modules are backed by a lifetime warranty and free lifetime multilingual technical support. StarTech.com offers a wide variety of SFP modules and direct-attach SFP cables, providing the convenience and reliability you need to ensure dependable network performance.The StarTech.com Advantage
Specs
| Operational conditions |
| Operating temperature (T-T) |
0 - 70 °C |
| Storage temperature (T-T) |
-40 - 85 °C |
| Operating relative humidity (H-H) |
30 - 70% |
| Weight & dimensions |
| Width |
13 mm |
| Depth |
70 mm |
| Height |
13 mm |
| Weight |
46 g |
| Power |
| Power consumption (typical) |
1.3 W |
| Performance |
| SFP transceiver type |
Copper |
| Maximum data transfer rate |
1250 Mbit/s |
| Interface type |
SFP |
| Fiber optic connector |
SFP |
| Maximum transfer distance |
100 m |
| Networking standards |
IEEE 802.3ab |
| Cabling technology |
1000BASE-T |
| Auto MDI/MDI-X |
Y |
| Auto-negotiation |
Y |
| Digital Diagnostics Monitoring (DDM) |
Y |
| Ethernet LAN (RJ-45) ports |
1 |
| Features |
| Product colour |
Silver |
| Hot-swap |
Y |
| Mean time between failures (MTBF) |
4655371 h |
| Certification |
CE, FCC, UL, REACH |
| Logistics data |
| Master (outer) case width |
206 mm |
| Master (outer) case length |
298 mm |
| Harmonized System (HS) code |
85369010 |
| Master (outer) case height |
248 mm |
| Products per master (outer) case |
36 pc(s) |
| Packaging data |
| Number of products included |
1 pc(s) |
| Package width |
92 mm |
| Package depth |
116 mm |
| Package height |
33 mm |
| Package weight |
55 g |
| Technical details |
| Sustainability certificates |
RoHS |
Features
StarTech.com Cisco SFP-GE-T Compatible SFP Transceiver Module - 10/100/1000BASE-TX~Cisco SFP-GE-T Compatible SFP Module - 1000BASE-T - SFP to RJ45 Cat6/Cat5e - 10/100/1000 Mbps - RJ-45 100m - Cisco IE3400, IE3300, IE3200. SFP transceiver type: Copper, Maximum data transfer rate: 1250 Mbit/s, Interface type: SFP. Product colour: Silver, Mean time between failures (MTBF): 4655371 h, Certification: CE, FCC, UL, REACH. Power consumption (typical): 1.3 W. Width: 13 mm, Depth: 70 mm, Height: 13 mm. Number of products included: 1 pc(s), Package width: 92 mm, Package depth: 116 mm
Product Description
10/100/1000 Mbps | Copper | RJ45 | 100 m (328 ft) | Lifetime WarrantyThe SFPC1110 is a Cisco SFP-GE-T compatible copper transceiver module that has been designed, programmed and tested to work with Cisco® brand switches and routers. It delivers dependable 1GbE (1000 Mbps) connectivity over copper cable, for 1000BASE-T compliant networks, with a maximum distance of up to 100 m (328 ft).Technical Specifications:• Maximum Data Transfer Rate: 1.25 Gbps• Type: Copper• Connection Type: RJ45 Connector• Maximum Transfer Distance: 100 m (328 ft)• MTBF: 4,655,371 hours• Power Consumption: Less than 1.3 Watts• Digital Diagnostics Monitoring (DDM): NoThis SFP copper module is hot-swappable, making upgrades and replacements seamless by minimizing network disruptions.StarTech.com SFPsAll StarTech.com SFP & SFP+ transceiver modules are backed by a lifetime warranty and free lifetime multilingual technical support. StarTech.com offers a wide variety of SFP modules and direct-attach SFP cables, providing the convenience and reliability you need to ensure dependable network performance.The StarTech.com Advantage
