Stock Status: 1x unit in stock
1000 Mbps (1 Gbps) | Multi Mode Fiber | LC | 550 m (1804 ft) | Lifetime Warranty

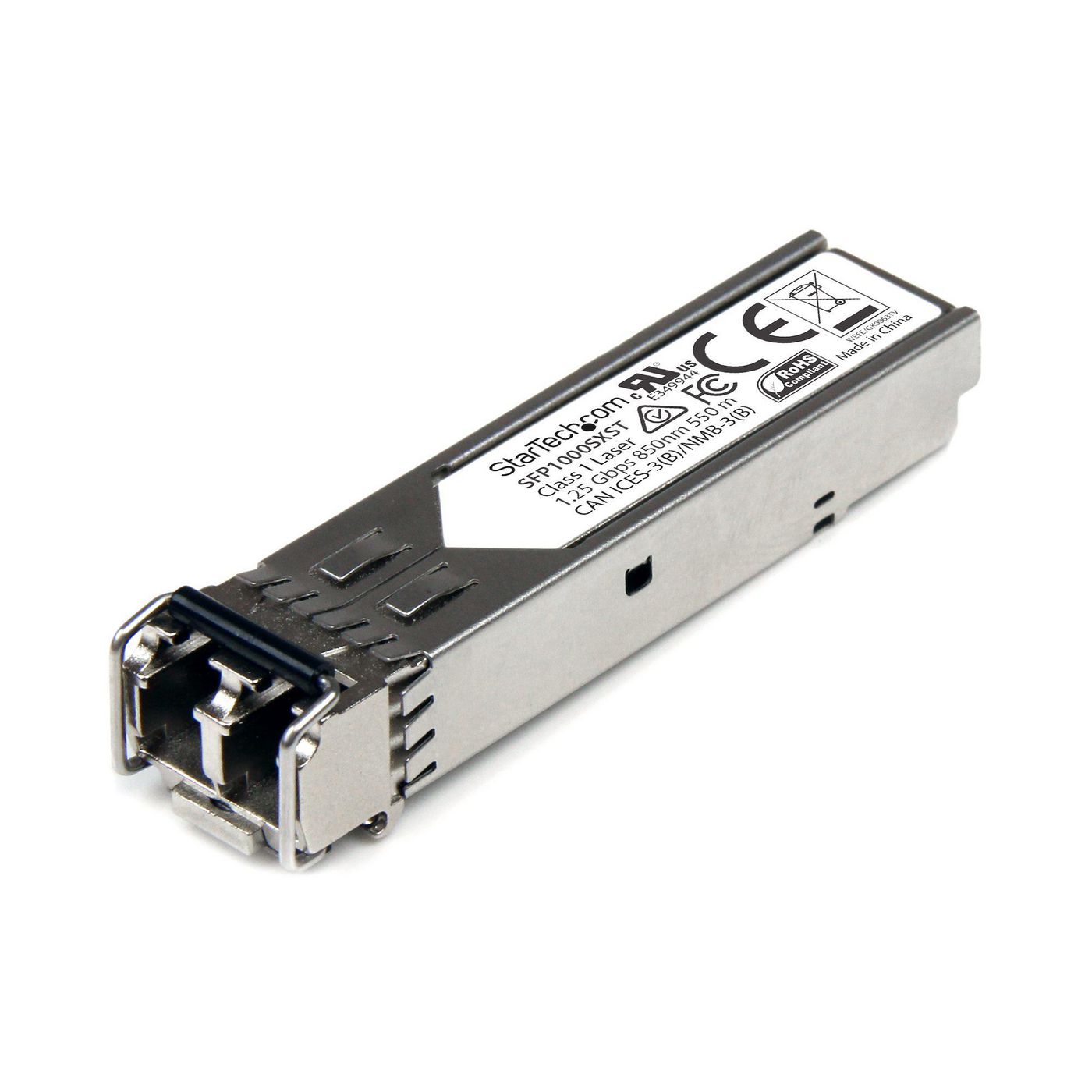

The SFP1000SXST is an MSA compliant fiber SFP transceiver that’s designed, programmed and tested to work with 1000BASE-SX compatible MSA switches and routers. The SFP transceiver module supports a maximum distance of up to 550 m (1804 ft) and delivers dependable 1 GbE connectivity over fiber cabling.
Technical Specifications:
• Wavelength: 850nm
• Maximum Data Transfer Rate: 1.25 Gbps
• Type: Multi Mode Fiber
• Connection Type: LC Connector
• Maximum Transfer Distance: 550 m (1804 ft)
• Power Consumption: Less than 1 Watt
• DDM: Yes
This SFP fiber module is hot-swappable, making upgrades and replacements seamless by minimizing network disruptions.
StarTech.com SFPs
All StarTech.com SFP & SFP+ transceiver modules are backed by a lifetime warranty and free lifetime multilingual technical support. StarTech.com offers a wide variety of SFP modules and direct-attach SFP Cables, providing the convenience and reliability you need to ensure dependable network performance.
The StarTech.com Advantage
Specs
| Operational conditions |
| Operating temperature (T-T) |
0 - 70 °C |
| Storage temperature (T-T) |
-40 - 85 °C |
| Operating relative humidity (H-H) |
5 - 95% |
| Weight & dimensions |
| Width |
13.9 mm |
| Depth |
58.4 mm |
| Height |
12.6 mm |
| Weight |
23 g |
| Power |
| Power consumption (typical) |
1 W |
| Performance |
| SFP transceiver type |
Fiber optic |
| Maximum data transfer rate |
1250 Mbit/s |
| Interface type |
SFP |
| Multi-mode fiber (MMF) supported |
Yes |
| Fiber optic connector |
LC |
| SFP transceiver standard |
SX |
| Maximum transfer distance |
550 m |
| Wavelength |
850 nm |
| Networking standards |
IEEE 802.3z |
| Duplex system |
Full |
| Digital Diagnostics Monitoring (DDM) |
Yes |
| Wavelength-division multiplexing (WDM) |
No |
| Features |
| Product colour |
Silver |
| Housing material |
Aluminium |
| Hot-Plug support |
Yes |
| Logistics data |
| Master (outer) case width |
250 mm |
| Master (outer) case length |
300 mm |
| Harmonized System (HS) code |
85369010 |
| Master (outer) case height |
200 mm |
| Products per master (outer) case |
36 pc(s) |
| Country of origin |
China |
| Packaging data |
| Package width |
90 mm |
| Package depth |
120 mm |
| Package height |
30 mm |
| Package weight |
53 g |
| Certification |
| Compliance certificates |
RoHS |
| Certification |
CE, FCC, UR |
| Packaging content |
| Quantity per pack |
1 pc(s) |
Features
StarTech.com MSA Compliant SFP Transceiver Module - 1000BASE-SX~MSA Uncoded SFP Module - 1000BASE-SX - 1GbE Multi Mode Fiber (MMF) Optic Transceiver - 1GE Gigabit Ethernet SFP - LC 550m - 850nm - DDM. SFP transceiver type: Fiber optic, Maximum data transfer rate: 1250 Mbit/s, Interface type: SFP. Product colour: Silver, Housing material: Aluminium. Power consumption (typical): 1 W. Compliance certificates: RoHS, Certification: CE, FCC, UR. Width: 13.9 mm, Depth: 58.4 mm, Height: 12.6 mm
Product Description
1000 Mbps (1 Gbps) | Multi Mode Fiber | LC | 550 m (1804 ft) | Lifetime Warranty
The SFP1000SXST is an MSA compliant fiber SFP transceiver that’s designed, programmed and tested to work with 1000BASE-SX compatible MSA switches and routers. The SFP transceiver module supports a maximum distance of up to 550 m (1804 ft) and delivers dependable 1 GbE connectivity over fiber cabling.
Technical Specifications:
• Wavelength: 850nm
• Maximum Data Transfer Rate: 1.25 Gbps
• Type: Multi Mode Fiber
• Connection Type: LC Connector
• Maximum Transfer Distance: 550 m (1804 ft)
• Power Consumption: Less than 1 Watt
• DDM: Yes
This SFP fiber module is hot-swappable, making upgrades and replacements seamless by minimizing network disruptions.
