Stock Status: 1x unit in stock
100 Mbps | Single Mode Fiber | LC | 10 km (6.2 mi) | Lifetime Warranty

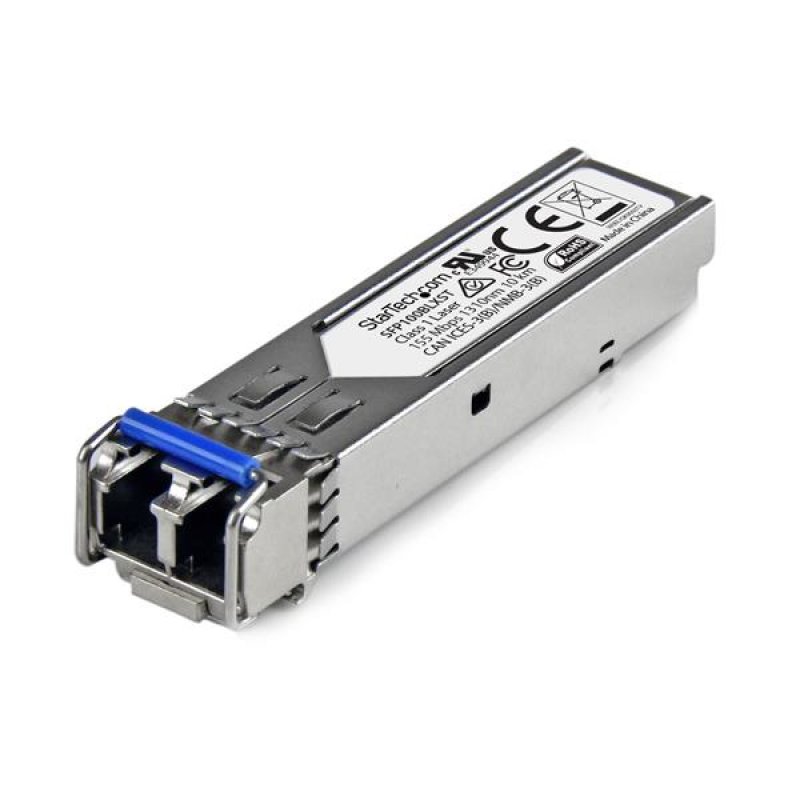

The SFP100BLXST is an MSA compliant fiber SFP transceiver that’s designed, programmed and tested to work with 100BASE-LX compatible MSA switches and routers. The SFP transceiver module supports a maximum distance of up to 10 km (6.2 mi) and delivers dependable 100 Mb Ethernet connectivity over fiber cabling.
Technical Specifications:
Wavelength: 1310nm
Maximum Data Transfer Rate: 155 Mbps
Type: Single Mode Fiber
Connection Type: LC Connector
Maximum Transfer Distance: 10 km (6.2 mi)
Power Consumption: Less than 1 Watt
DDM: Yes
This SFP fiber module is hot-swappable, making upgrades and replacements seamless by minimizing network disruptions.
StarTech.com SFPs
All StarTech.com SFP & SFP+ transceiver modules are backed by a lifetime warranty and free lifetime multilingual technical support. StarTech.com offers a wide variety of SFP modules and direct-attach SFP Cables, providing the convenience and reliability you need to ensure dependable network performance.
The StarTech.com Advantage
- Delivers reliable 100Mbps connections for 100BASE-LX compliant networks
- StarTech.com SFP modules are backed by a lifetime warranty
- Complies with Multi-Source Agreement (MSA) industry standards
Specs
| Operational conditions |
| Operating temperature (T-T) |
0 - 70 °C |
| Storage temperature (T-T) |
-40 - 85 °C |
| Operating relative humidity (H-H) |
5 - 95% |
| Weight & dimensions |
| Width |
14 mm |
| Depth |
59 mm |
| Height |
13 mm |
| Weight |
30 g |
| Power |
| Power consumption (typical) |
1 W |
| Performance |
| SFP transceiver type |
Fiber optic |
| Maximum data transfer rate |
155 Mbit/s |
| Interface type |
SFP |
| Single-mode fiber (SMF) supported |
Y |
| Fiber optic connector |
LC |
| SFP transceiver standard |
LX |
| Maximum transfer distance |
10000 m |
| Wavelength |
1310 nm |
| Networking standards |
IEEE 802.3u |
| Duplex system |
Full, Half |
| Digital Diagnostics Monitoring (DDM) |
Y |
| Wavelength-division multiplexing (WDM) |
N |
| Features |
| Product colour |
Silver |
| Housing material |
Aluminium |
| Hot-Plug support |
Y |
| RoHS compliance |
Y |
| Certification |
CE, FCC, UR |
| Logistics data |
| Master (outer) case width |
25 cm |
| Master (outer) case length |
30 cm |
| Master (outer) case height |
20 cm |
| Quantity per master (outer) case |
36 pc(s) |
| Products per master (outer) case |
36 pc(s) |
| Packaging data |
| Number of products included |
1 pc(s) |
| Package width |
92 mm |
| Package depth |
117 mm |
| Package height |
33 mm |
| Package weight |
95 g |
| Technical details |
| Sustainability certificates |
RoHS |
Features
StarTech.com MSA Uncoded SFP Module - 100BASE-LX - 100MbE Single Mode Fiber (SMF) Optic Transceiver - 100Mb Ethernet SFP - LC 10km - 1310nm - DDM. SFP transceiver type: Fiber optic, Maximum data transfer rate: 155 Mbit/s, Interface type: SFP. Product colour: Silver, Housing material: Aluminium, Certification: CE, FCC, UR. Power consumption (typical): 1 W. Width: 14 mm, Depth: 59 mm, Height: 13 mm. Number of products included: 1 pc(s), Package width: 92 mm, Package depth: 117 mm
Product Description
100 Mbps | Single Mode Fiber | LC | 10 km (6.2 mi) | Lifetime Warranty
The SFP100BLXST is an MSA compliant fiber SFP transceiver that’s designed, programmed and tested to work with 100BASE-LX compatible MSA switches and routers. The SFP transceiver module supports a maximum distance of up to 10 km (6.2 mi) and delivers dependable 100 Mb Ethernet connectivity over fiber cabling.
Technical Specifications:
Wavelength: 1310nm
Maximum Data Transfer Rate: 155 Mbps
Type: Single Mode Fiber
Connection Type: LC Connector
Maximum Transfer Distance: 10 km (6.2 mi)
Power Consumption: Less than 1 Watt
DDM: Yes
This SFP fiber module is hot-swappable, making upgrades and replacements seamless by minimizing network disruptions.
StarTech.com SFPs
All StarTech.com SFP & SFP+ transceiver modules are backed by a lifetime warranty and free lifetime multilingual technical support. StarTech.com offers a wide variety of SFP modules and direct-attach SFP Cables, providing the convenience and reliability you need to ensure dependable network performance.
The StarTech.com Advantage
- Delivers reliable 100Mbps connections for 100BASE-LX compliant networks
- StarTech.com SFP modules are backed by a lifetime warranty
- Complies with Multi-Source Agreement (MSA) industry standards
