Stock Status: 1x unit in stock
10 Gbps | Single Mode Fiber | LC | 10 km (6.2 mi) | Lifetime Warranty

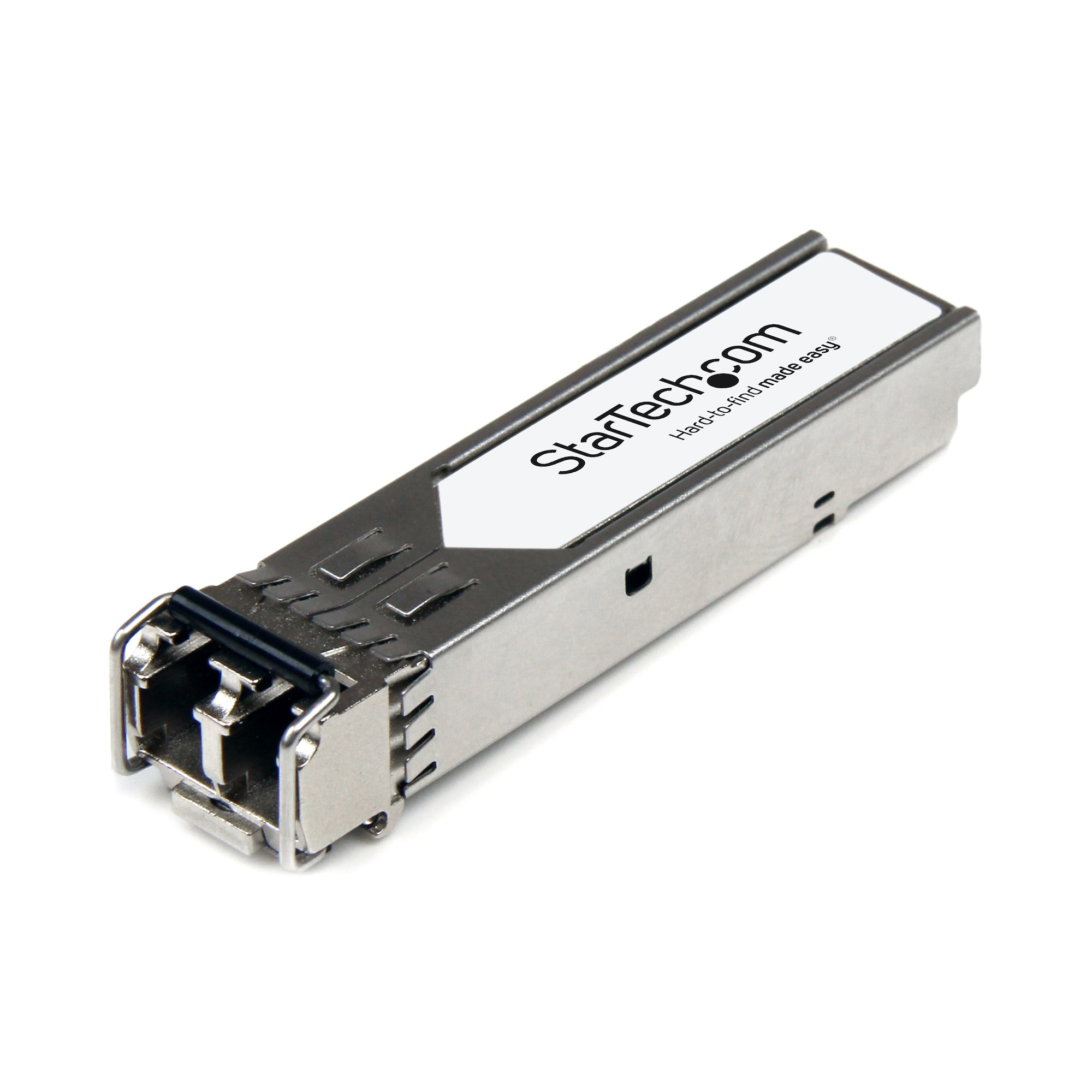

The SFP-10GBASE-LR-ST is an 10G MSA compliant fiber SFP+ transceiver that’s designed, programmed and tested to work with 10GBase-LR compatible MSA switches and routers. The SFP+ transceiver module supports a maximum distance of up to 10 km (6.2 mi) and delivers dependable 10 GbE connectivity over fiber cabling.
Technical Specifications:
Wavelength: 1310nm
Maximum Data Transfer Rate: 10 Gbps
Type: Single Mode Fiber
Connection Type: LC Connector
Maximum Transfer Distance: 10 km (6.2 mi)
MTBF: 646,156,559 hours
Power Consumption: < 1.3 W
Digital Diagnostics Monitoring (DDM): Yes
This SFP+ fiber module is hot-swappable, making upgrades and replacements seamless by minimizing network disruptions.
StarTech.com SFPs
All StarTech.com SFP & SFP+ transceiver modules are backed by a lifetime warranty and free lifetime multilingual technical support. StarTech.com offers a wide variety of SFP+ modules and direct-attach SFP+ cables, providing the convenience and reliability you need to ensure dependable network performance.
The StarTech.com Advantage
- 100% MSA UNCODED SFP+ TRANSCEIVER: Designed, programmed and tested to work with compatible MSA Compliant switches and routers to deliver dependable 10GbE connectivity
- TECHNICAL SPECS: 10GBASE-LR
- 10Gbps
Specs
| Weight & dimensions |
| Width |
58.4 mm |
| Depth |
13.9 mm |
| Height |
13.7 mm |
| Weight |
21 g |
| Power |
| Power consumption (typical) |
1.3 W |
| Performance |
| SFP transceiver type |
Fiber optic |
| Maximum data transfer rate |
10000 Mbit/s |
| Interface type |
SFP+ |
| Single-mode fiber (SMF) supported |
Y |
| Multi-mode fiber (MMF) supported |
N |
| Fiber optic connector |
LC |
| SFP transceiver standard |
LR |
| Maximum transfer distance |
10000 m |
| Wavelength |
1310 nm |
| Fiber ethernet cabling technology |
10GBASE-LR |
| Digital Diagnostics Monitoring (DDM) |
Y |
| Harmonized System (HS) code |
85369010 |
| Features |
| Product colour |
Silver |
| Hot-swap |
Y |
| Mean time between failures (MTBF) |
646156559 h |
| Logistics data |
| Master (outer) case width |
90 mm |
| Master (outer) case length |
115 mm |
| Master (outer) case height |
31 mm |
| Products per master (outer) case |
1 pc(s) |
| Packaging data |
| Number of products included |
1 pc(s) |
| Package width |
90 mm |
| Package depth |
115 mm |
| Package height |
31 mm |
| Package weight |
50 g |
Features
StarTech.com MSA Uncoded SFP+ Module - 10GBASE-LR - 10GbE Single Mode Fiber (SMF) Optic Transceiver - 10GE Gigabit Ethernet SFP+ - LC 10km - 1310nm - DDM. SFP transceiver type: Fiber optic, Maximum data transfer rate: 10000 Mbit/s, Interface type: SFP+. Product colour: Silver, Mean time between failures (MTBF): 646156559 h. Power consumption (typical): 1.3 W. Width: 58.4 mm, Depth: 13.9 mm, Height: 13.7 mm. Number of products included: 1 pc(s), Package width: 90 mm, Package depth: 115 mm
Product Description
10 Gbps | Single Mode Fiber | LC | 10 km (6.2 mi) | Lifetime Warranty
The SFP-10GBASE-LR-ST is an 10G MSA compliant fiber SFP+ transceiver that’s designed, programmed and tested to work with 10GBase-LR compatible MSA switches and routers. The SFP+ transceiver module supports a maximum distance of up to 10 km (6.2 mi) and delivers dependable 10 GbE connectivity over fiber cabling.
Technical Specifications:
Wavelength: 1310nm
Maximum Data Transfer Rate: 10 Gbps
Type: Single Mode Fiber
Connection Type: LC Connector
Maximum Transfer Distance: 10 km (6.2 mi)
MTBF: 646,156,559 hours
Power Consumption: < 1.3 W
Digital Diagnostics Monitoring (DDM): Yes
This SFP+ fiber module is hot-swappable, making upgrades and replacements seamless by minimizing network disruptions.
StarTech.com SFPs
All StarTech.com SFP & SFP+ transceiver modules are backed by a lifetime warranty and free lifetime multilingual technical support. StarTech.com offers a wide variety of SFP+ modules and direct-attach SFP+ cables, providing the convenience and reliability you need to ensure dependable network performance.
The StarTech.com Advantage
- 100% MSA UNCODED SFP+ TRANSCEIVER: Designed, programmed and tested to work with compatible MSA Compliant switches and routers to deliver dependable 10GbE connectivity
- TECHNICAL SPECS: 10GBASE-LR
- 10Gbps
