Stock Status: 1x unit in stock
10 Gbps | Copper | RJ45 | 30 m (98.4 ft) | Lifetime Warranty

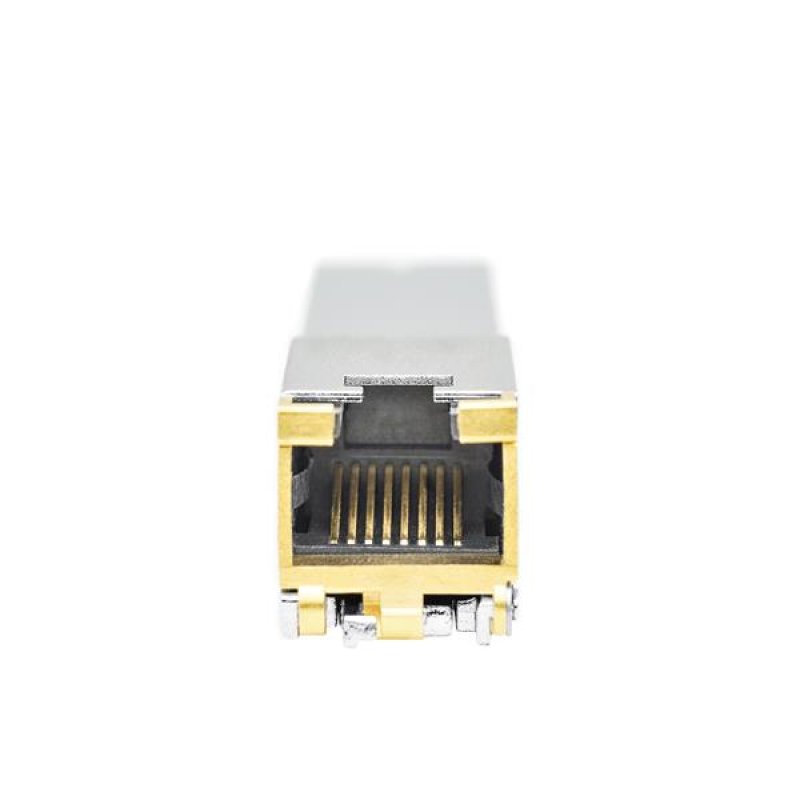

The SFP10GBTST is an MSA compliant copper SFP transceiver that’s designed, programmed and tested to work with 10GBASE-T compatible switchess and routers. The SFP+ transceiver module supports a maximum distance of up to 30 m (98.4 ft.) and delivers dependable 10 GbE connectivity over copper cabling, which is a cost-effective alternative to fiber-optic cable setups.
Technical Specifications:
Maximum Data Transfer Rate: 10 Gbps
Type: Copper
Connection Type: RJ45 Connector
Maximum Transfer Distance: 30 m (98.4 ft.)
MTBF: 4,598,430 hours >
This SFP+ copper module is hot-swappable, making upgrades and replacements seamless by minimizing network disruptions.
StarTech.com SFPs
All StarTech.com SFP & SFP+ transceiver modules are backed by a lifetime warranty and free lifetime multilingual technical support. StarTech.com offers a wide variety of SFP modules and direct-attach SFP Cables, providing the convenience and reliability you need to ensure dependable network performance.
The StarTech.com Advantage
- 100% MSA UNCODED SFP+ TRANSCEIVER: Designed, programmed and tested to work with compatible MSA Compliant switches and routers to deliver dependable 10GbE connectivity
- TESTED FOR COMPATIBILITY: Hot-swappable in MSA Compliant routers and switches
- TESTED FOR COMPATIBILITY: Hot-swappable in MSA Compliant routers and switches
Specs
| Operational conditions |
| Operating temperature (T-T) |
0 - 70 °C |
| Storage temperature (T-T) |
-40 - 85 °C |
| Operating relative humidity (H-H) |
5 - 95% |
| Weight & dimensions |
| Width |
13.9 mm |
| Depth |
70 mm |
| Height |
12.6 mm |
| Weight |
28 g |
| Power |
| Power consumption (typical) |
2.3 W |
| Performance |
| SFP transceiver type |
Copper |
| Maximum data transfer rate |
10000 Mbit/s |
| Interface type |
SFP+ |
| Maximum transfer distance |
30 m |
| Networking standards |
IEEE 802.3an |
| Duplex system |
Full |
| Auto MDI/MDI-X |
Y |
| Digital Diagnostics Monitoring (DDM) |
N |
| Ethernet LAN (RJ-45) ports |
1 |
| Features |
| Product colour |
Silver |
| Housing material |
Zinc steel |
| Hot-Plug support |
Y |
| Certification |
CE, FCC |
| Logistics data |
| Master (outer) case width |
34.5 cm |
| Master (outer) case length |
38.5 cm |
| Master (outer) case height |
30.5 cm |
| Quantity per master (outer) case |
100 pc(s) |
| Products per master (outer) case |
100 pc(s) |
| Packaging data |
| Number of products included |
1 pc(s) |
| Package width |
74 mm |
| Package depth |
120 mm |
| Package height |
30 mm |
| Package weight |
60 g |
| Technical details |
| Sustainability certificates |
RoHS |
Features
StarTech.com MSA Uncoded SFP+ Module - 10GBASE-T - SFP to RJ45 Cat6/Cat5e - 10GE Gigabit Ethernet SFP+ - RJ-45 30m. SFP transceiver type: Copper, Maximum data transfer rate: 10000 Mbit/s, Interface type: SFP+. Product colour: Silver, Housing material: Zinc steel, Certification: CE, FCC. Power consumption (typical): 2.3 W. Width: 13.9 mm, Depth: 70 mm, Height: 12.6 mm. Number of products included: 1 pc(s), Package width: 74 mm, Package depth: 120 mm
Product Description
10 Gbps | Copper | RJ45 | 30 m (98.4 ft) | Lifetime Warranty
The SFP10GBTST is an MSA compliant copper SFP transceiver that’s designed, programmed and tested to work with 10GBASE-T compatible switchess and routers. The SFP+ transceiver module supports a maximum distance of up to 30 m (98.4 ft.) and delivers dependable 10 GbE connectivity over copper cabling, which is a cost-effective alternative to fiber-optic cable setups.
Technical Specifications:
Maximum Data Transfer Rate: 10 Gbps
Type: Copper
Connection Type: RJ45 Connector
Maximum Transfer Distance: 30 m (98.4 ft.)
MTBF: 4,598,430 hours >
This SFP+ copper module is hot-swappable, making upgrades and replacements seamless by minimizing network disruptions.
StarTech.com SFPs
All StarTech.com SFP & SFP+ transceiver modules are backed by a lifetime warranty and free lifetime multilingual technical support. StarTech.com offers a wide variety of SFP modules and direct-attach SFP Cables, providing the convenience and reliability you need to ensure dependable network performance.
The StarTech.com Advantage
- 100% MSA UNCODED SFP+ TRANSCEIVER: Designed, programmed and tested to work with compatible MSA Compliant switches and routers to deliver dependable 10GbE connectivity
- TESTED FOR COMPATIBILITY: Hot-swappable in MSA Compliant routers and switches
- TESTED FOR COMPATIBILITY: Hot-swappable in MSA Compliant routers and switches
